Service Check Signal Circuit (SCS) Method

Park the vehicle on level ground. Shift to the P position, then turn off the engine.
Release the parking brake pedal.
With the ignition switch OFF, connect the HDS to the 16P DLC (A) behind the driver's dashboard lower cover.

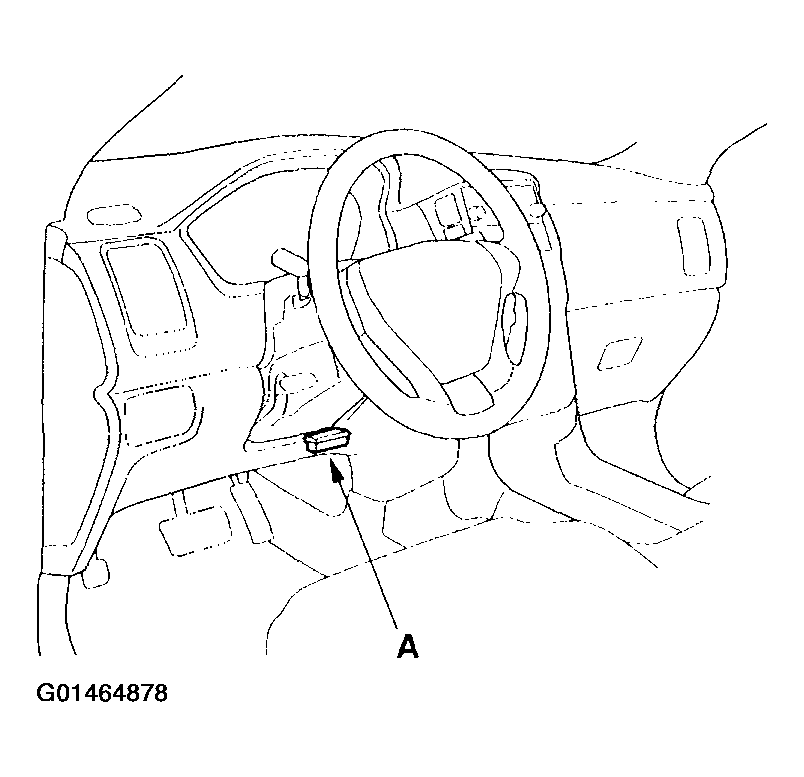

Fig 1: Locating The Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the SCS circuit to body ground using the HDS.
Turn the ignition switch ON (II).
The VTM-4 indicator comes on and stays on for 4 seconds. Press and hold the VTM-4 lock switch while the VTM-4 indicator is on.
When the VTM-4 indicator goes off, release the VTM-4 lock switch.
The VTM-4 indicator comes on and stays on for 4 seconds. Press and hold the VTM-4 lock switch while the VTM-4 indicator is on.

NOTE: If the VTM-4 indicator does not make two short blinks, the memory has not been cleared. Turn the ignition switch off, then repeat step 5 through 9.

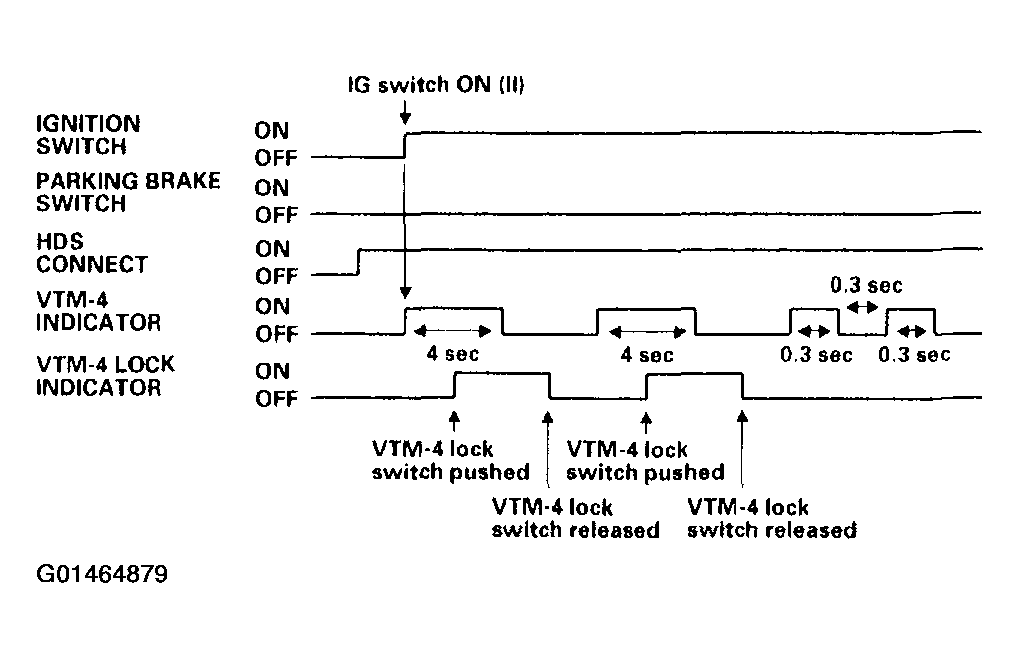

Fig 2: Identifying Confirmation Blinks

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the VTM-4 indicator goes off, release the VTM-4 lock switch. The VTM-4 indicator will make two short blinks to confirm that the DTCs have been cleared from the VTM-4 control unit memory.
Turn the ignition switch OFF, then disconnect the HDS from the 16P DLC.
