Repair and Diagnosis (Single Page)
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heating/Air Conditioning
>>
System Description
>>
Heater Control Panel Inputs & Outputs
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Heater Control Panel Inputs & Outputs

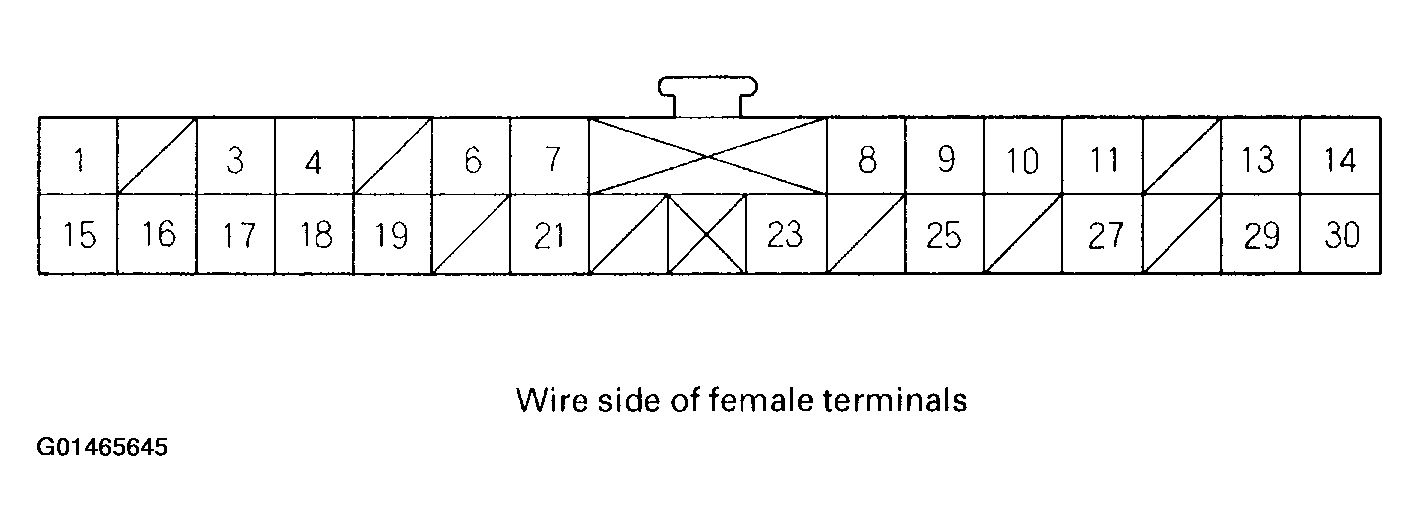

Fig 1: Identifying Heater Control Panel 30P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

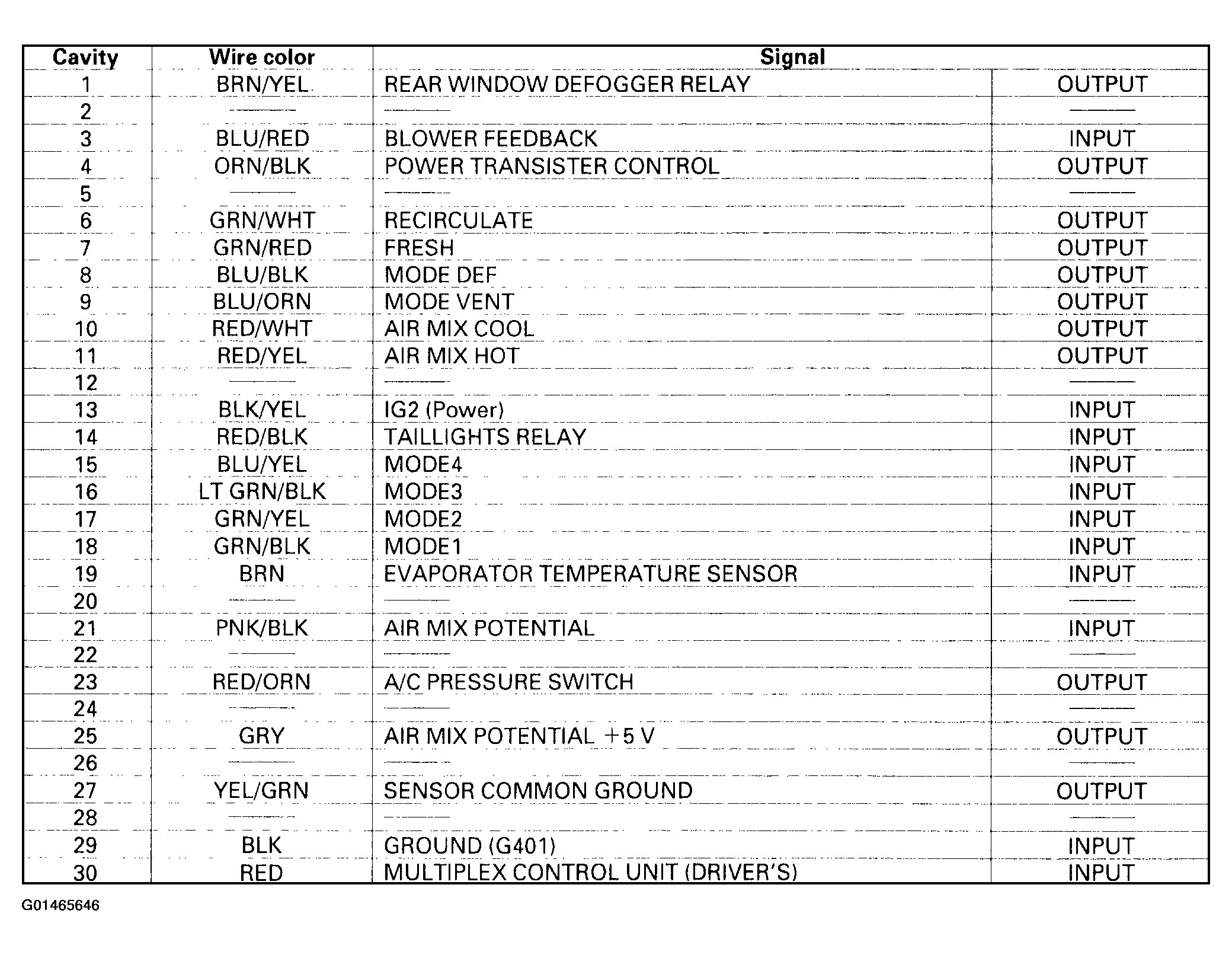

Fig 2: Identifying Heater Control Panel Inputs & Outputs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
