Transfer Assembly: Disassembly: Notes

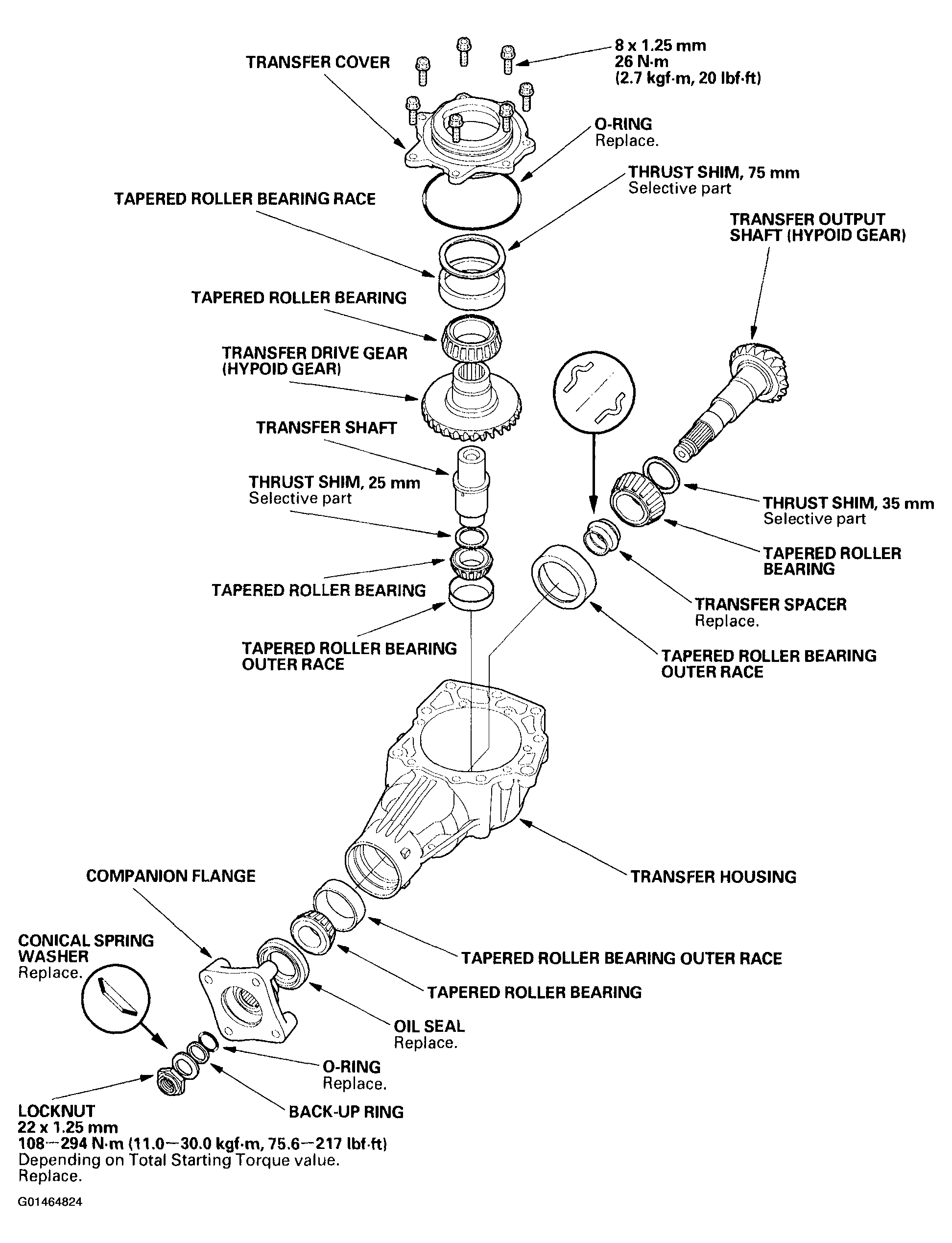

Fig 1: Exploded View Of Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
