Accessory Power Socket, Console Connector End View

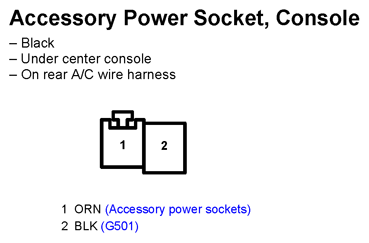

Fig 1: Accessory Power Socket, Console Connector End View
G11251002Courtesy of AMERICAN HONDA MOTOR CO., INC.
