CMP Sensor (A and B) Connector End View

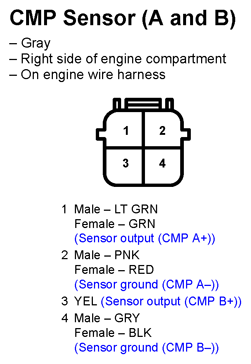

Fig 1: CMP Sensor (A and B) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
