Input Shaft (Mainshaft) Speed Sensor Connector End View

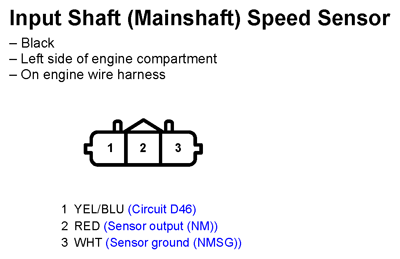

Fig 1: Input Shaft (Mainshaft) Speed Sensor Connector End View
G11251129Courtesy of AMERICAN HONDA MOTOR CO., INC.
