PCM Connector End View

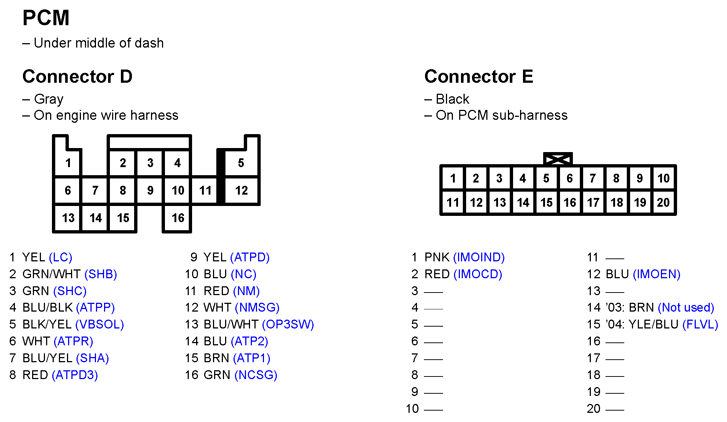

Fig 1: PCM Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

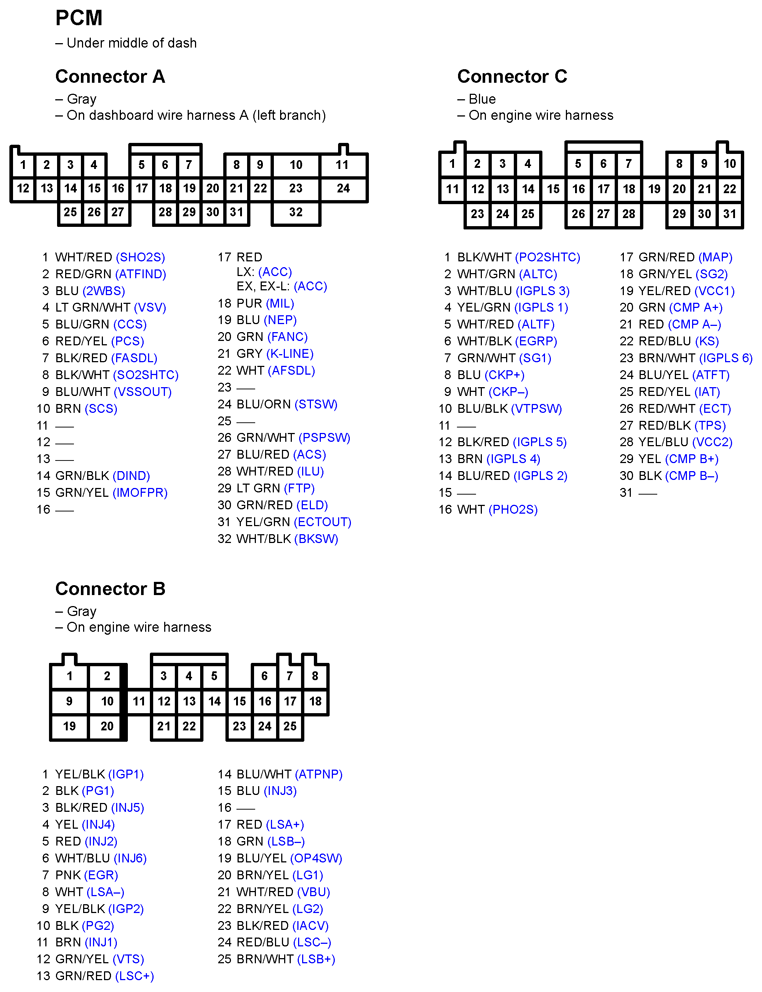

Fig 2: PCM Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
