Shift Cable Adjustment

SRS components are located in this area. Review the SRS components locations, precautions and procedures in AIR BAG RESTRAINT SYSTEMS before performing repairs or service.

1. Remove the steering column upper and lower covers (see STEERING COLUMN REMOVAL & INSTALLATION ).
2. Shift the transmission into the N position.
3. Remove the cable end nut (A), then separate the shift cable (B) from the shift lever.

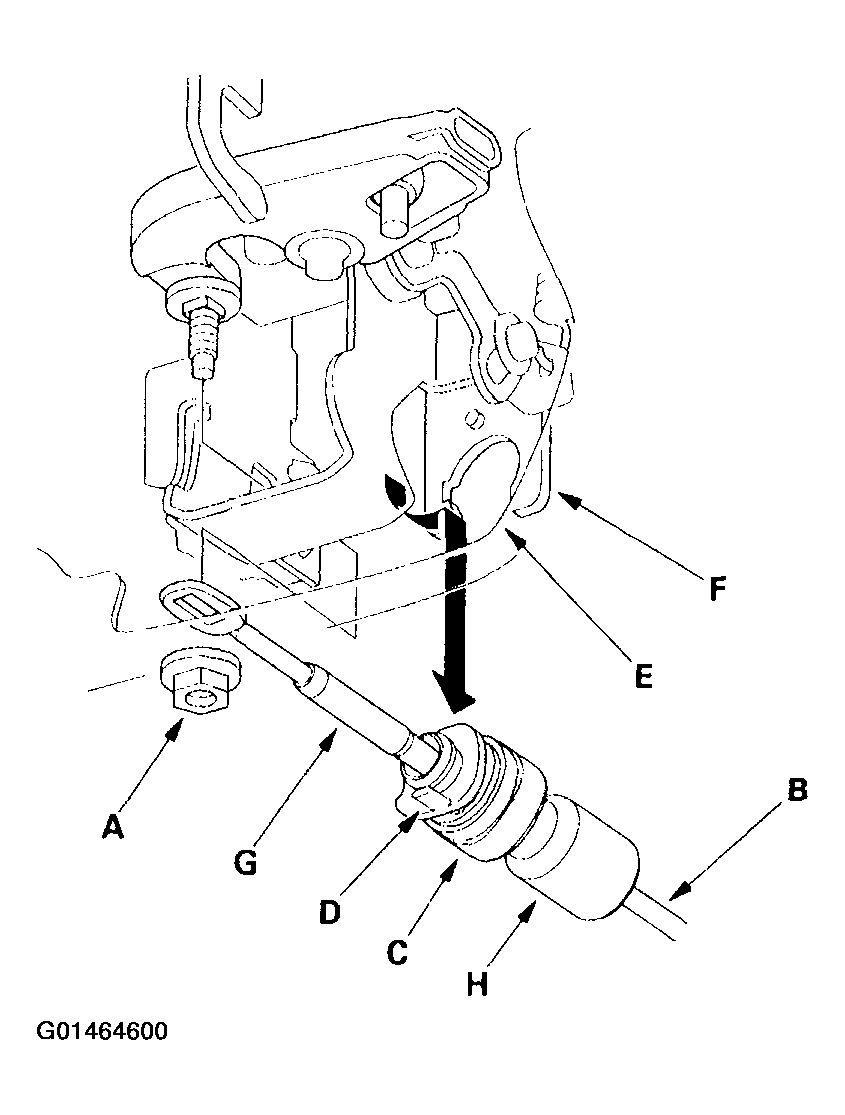

   Fig 1: Removing The Cable End Nut & Separating The Shift Cable From The Shift Lever

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Rotate the socket holder (C) on the shift cable a quarter turn; the tab (D) on the socket holder will be in the opening (E) of the shift cable bracket (F). Then slide the holder to remove the shift cable from the shift cable bracket. Do not remove the shift cable by twisting the shift cable guide (G) and damper (H).
5. Push the shift cable (A) until it stops, then release it. Pull the shift cable back two steps so that the shift lever position is in N. Do not adjust the shift cable by holding the shift cable guide (B).

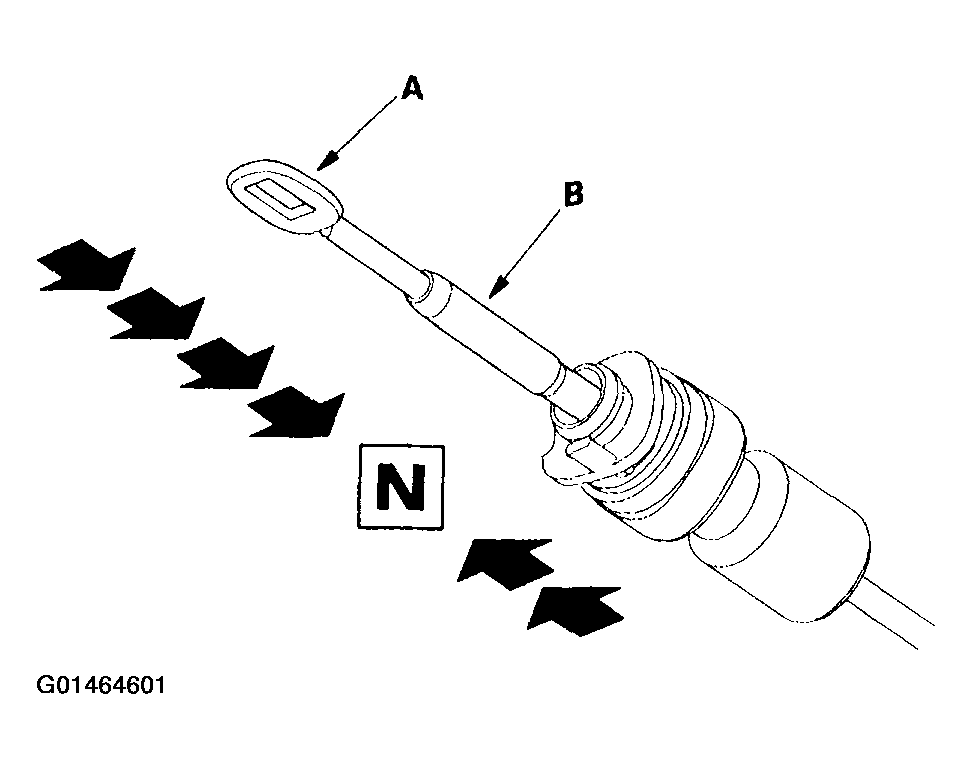

   Fig 2: Placing Shift Lever In N Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Turn the ignition switch ON (II), and verify that the N position indicator comes on.
7. Turn the ignition switch OFF.
8. Insert a 6.0 mm (0.24 in.) pin (A) into the positioning hole (B) on the detent plate through the positioning hole (C) on the control bracket. The shift lever is secured in the N position.

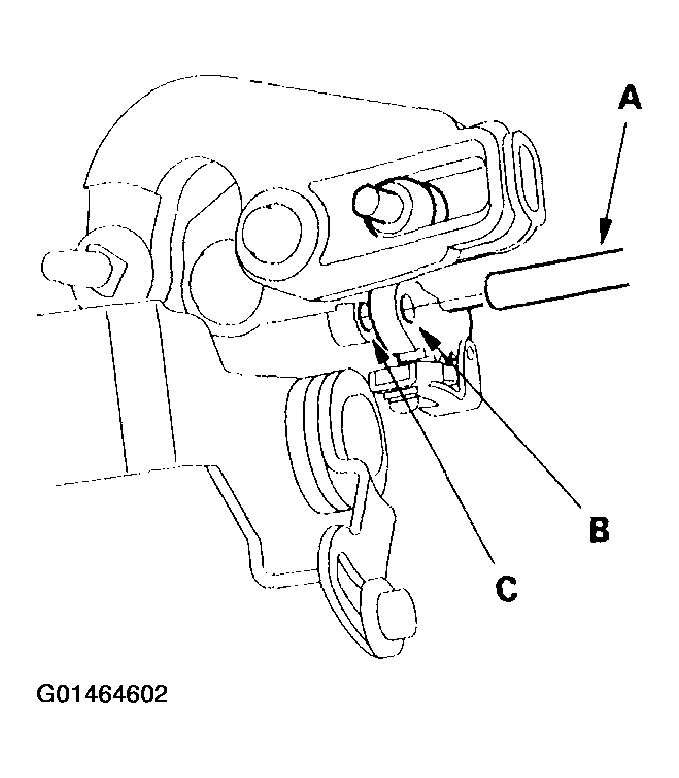

   Fig 3: Securing Shift Lever In N Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Align the socket holder (A) on the shift cable (B) with the slot in the shift cable bracket (C), then slide the holder into the bracket. Install the shift cable end (D) over the mounting stud (E) by aligning its square hole (F) with the square fitting (G) at the bottom of the stud. Rotate the holder a quarter turn to secure the shift cable. Do not install the shift cable by twisting the shift cable guide (H) and damper (I).

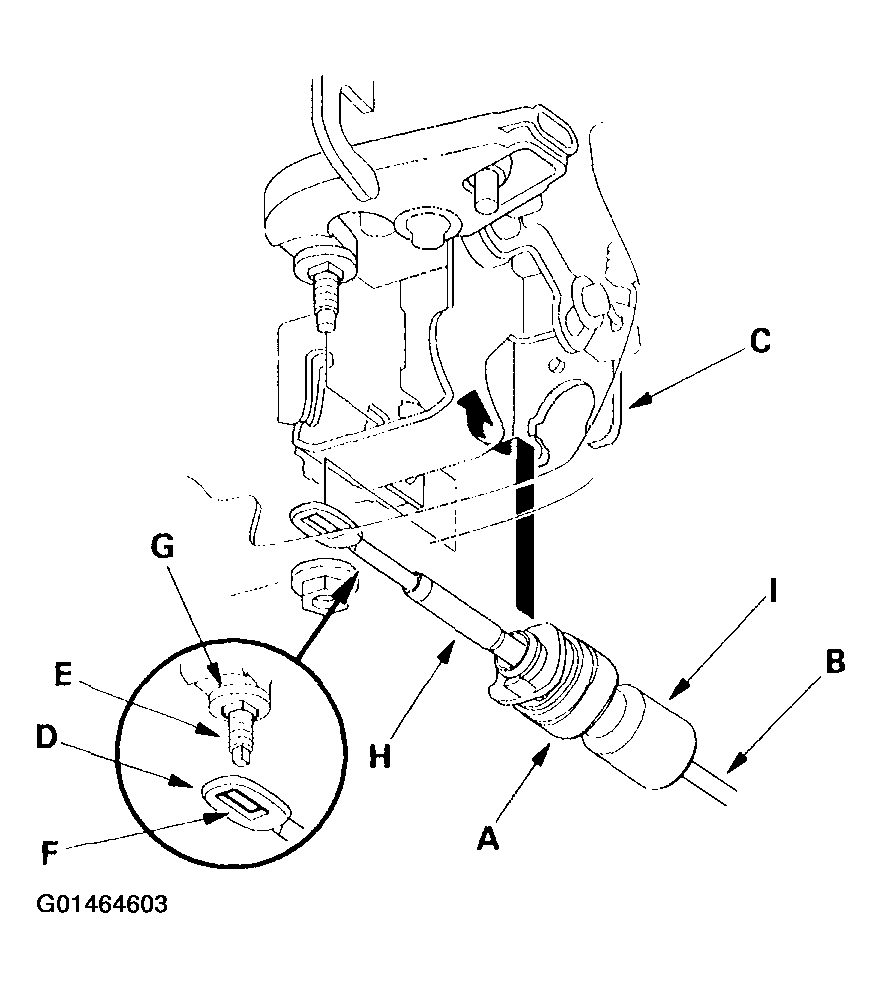

   Fig 4: Installing Shift Cable

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Verify that the shift cable end (A) is properly installed on the mounting stud (B).

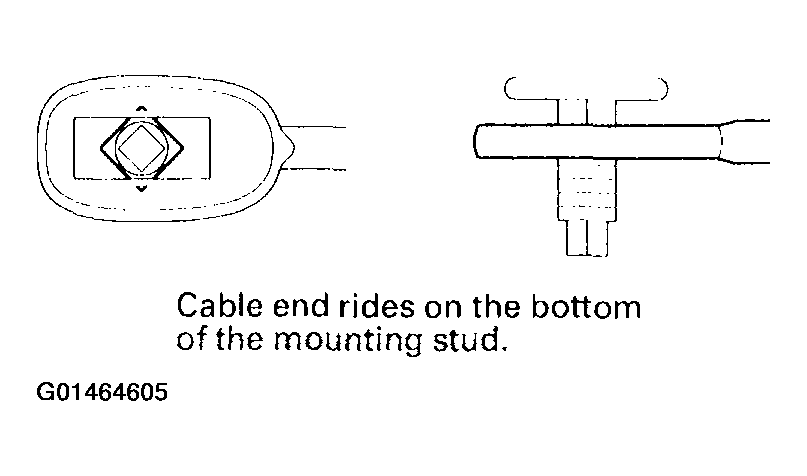

    Fig 5: Identifying Properly Installed Shift Cable End On Mounting Stud

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

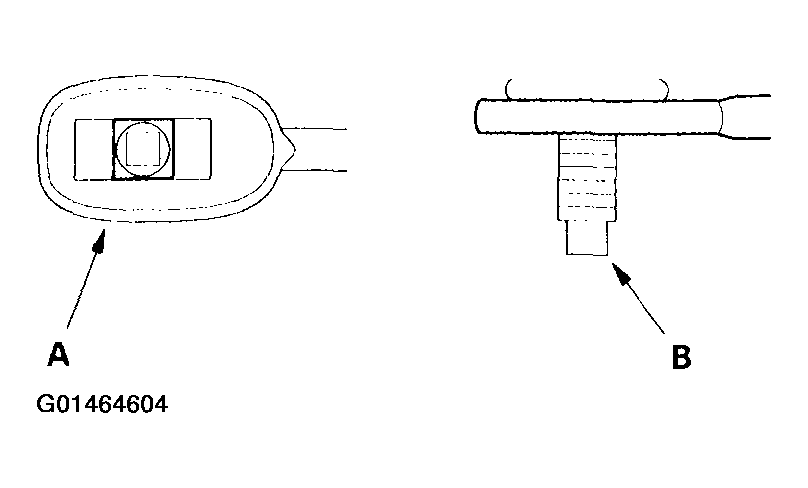

    Fig 6: Identifying Improperly Installed Shift Cable End On Mounting Stud

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. If improperly installed, remove the shift cable from the shift cable bracket, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the shift cable bracket.
12. Install and tighten the nut.

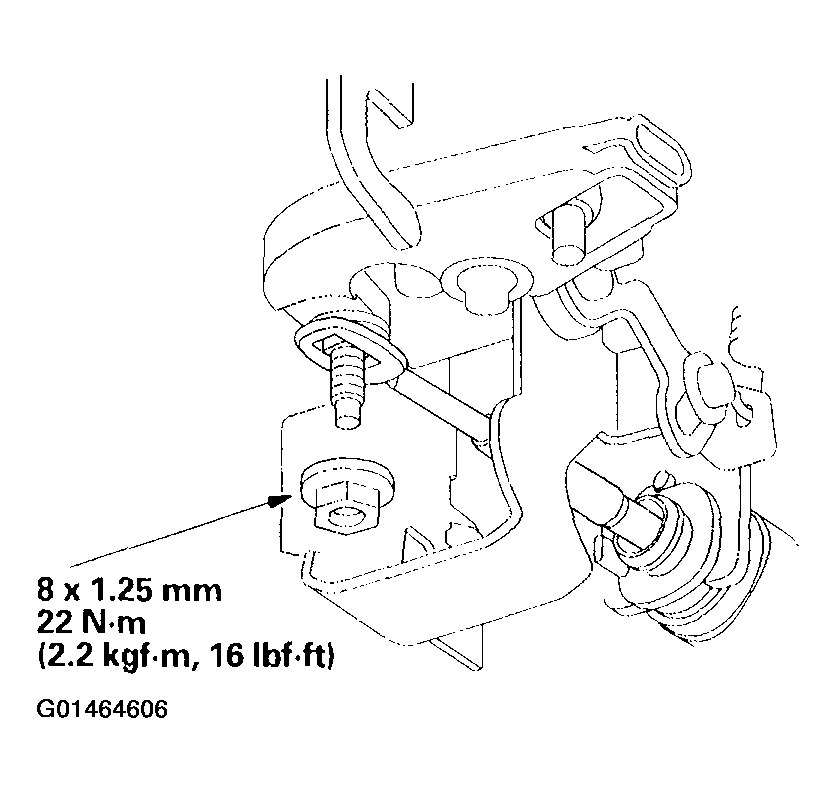

    Fig 7: Installing Shift Cable Nut

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Remove the 6.0 mm (0.24 in.) pin that was installed to hold the shift lever.
14. Move the shift lever to each position, and verify that the A/T gear position indicator follows the transmission range switch.
15. Push the shift lock release, and verify that the shift lever releases.
