Three Way Catalytic Converter (TWC)

The TWC converts hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the exhaust gas to carbon dioxide (CO2), nitrogen (N2), and water vapor.

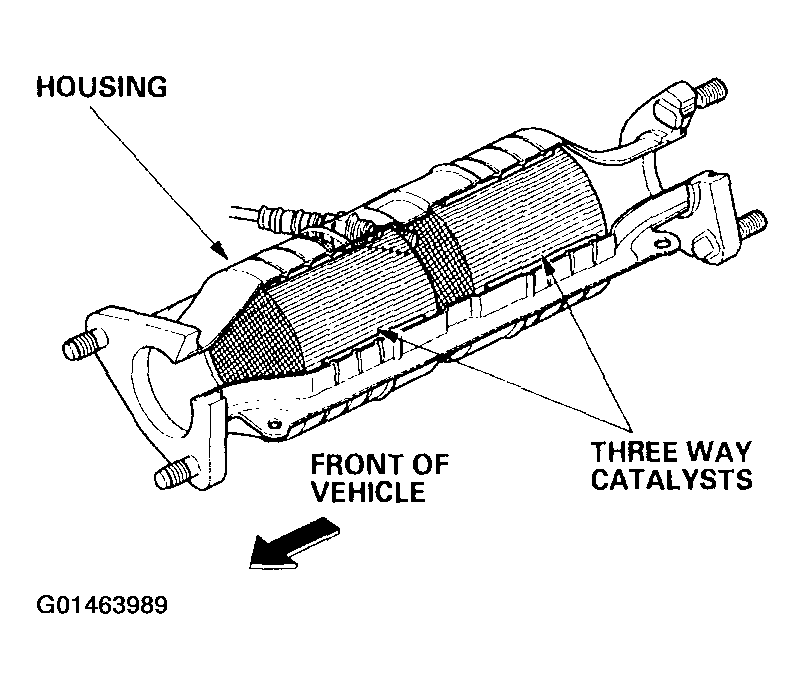

Fig 1: Identifying Three Way Catalytic Converter
G01463989Courtesy of AMERICAN HONDA MOTOR CO., INC.
