Front Inner Fender

Front Inner Fender Replacement

NOTE: Take care not to scratch the body.

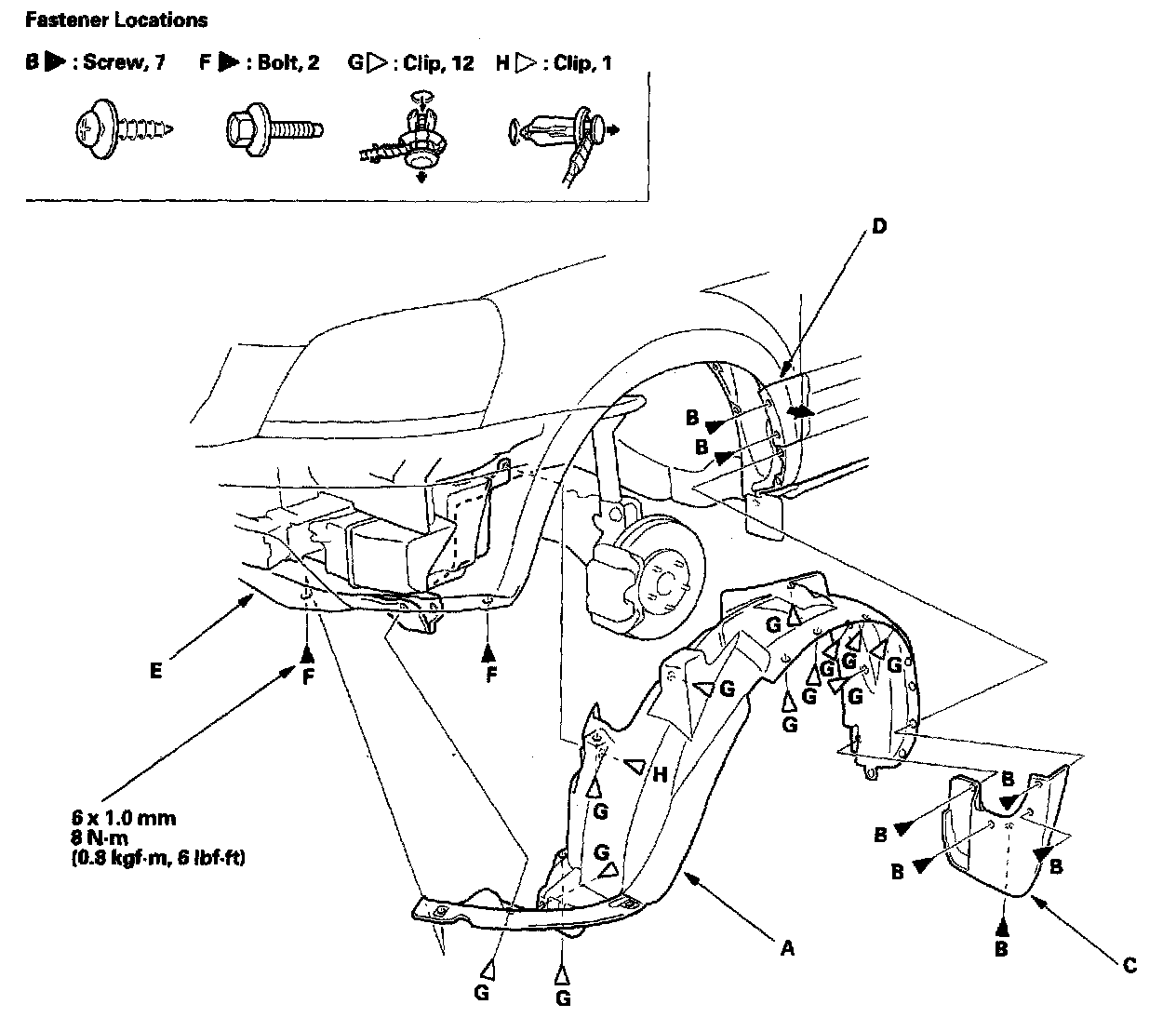

1. Remove the front inner fender (A).
1. On the back of the wheel arch, remove the screws (B), then remove the front splash guard (C).
2. On the back of the wheel arch, remove the screws (B) securing the front fender side molding (D).
3. From under the front bumper (E), remove the bolt (F) securing the front bumper and front inner fender.
4. From the wheel arch, remove the clips ((3, H) securing the front inner fender (and splash shield) on the body.
5. Pull the front inner fender out.

2. Install the inner fender in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
