Symptom Related Diagnostic Procedures

Symptom Troubleshooting Index

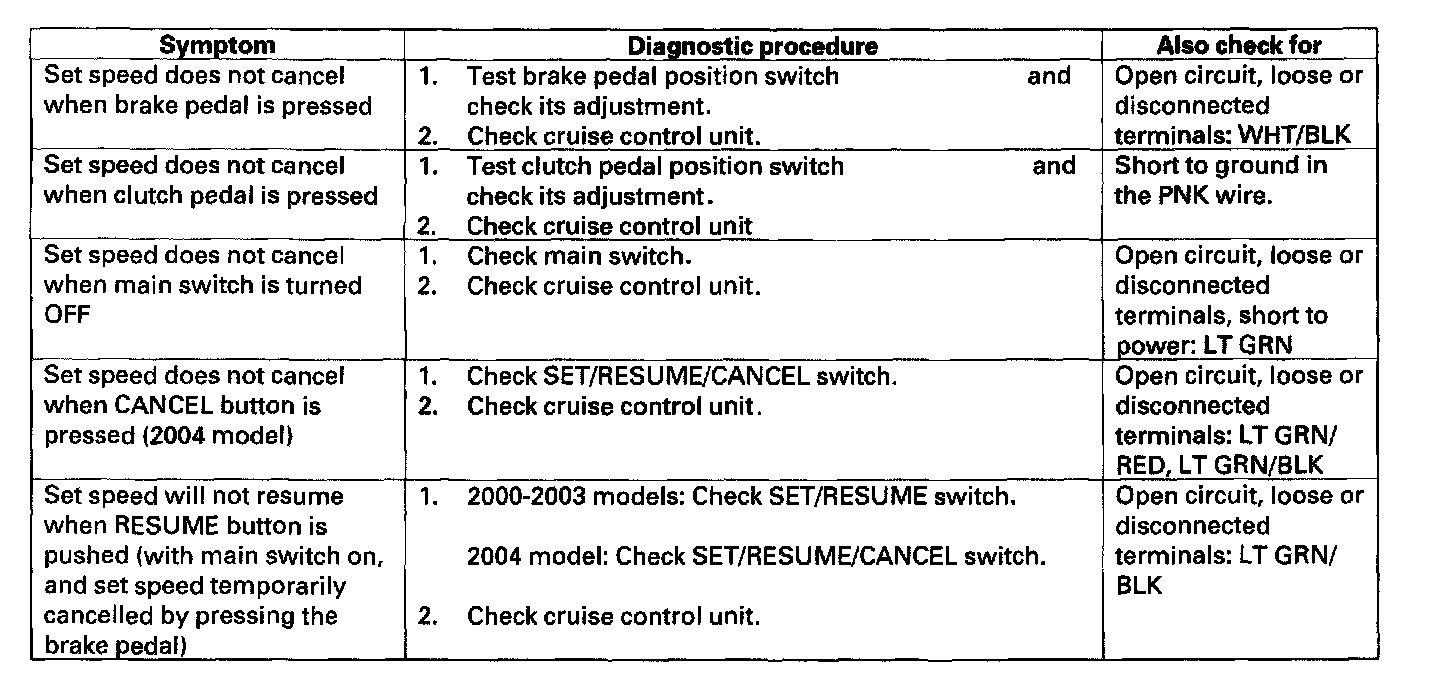

Symptom Troubleshooting Index Part 1:

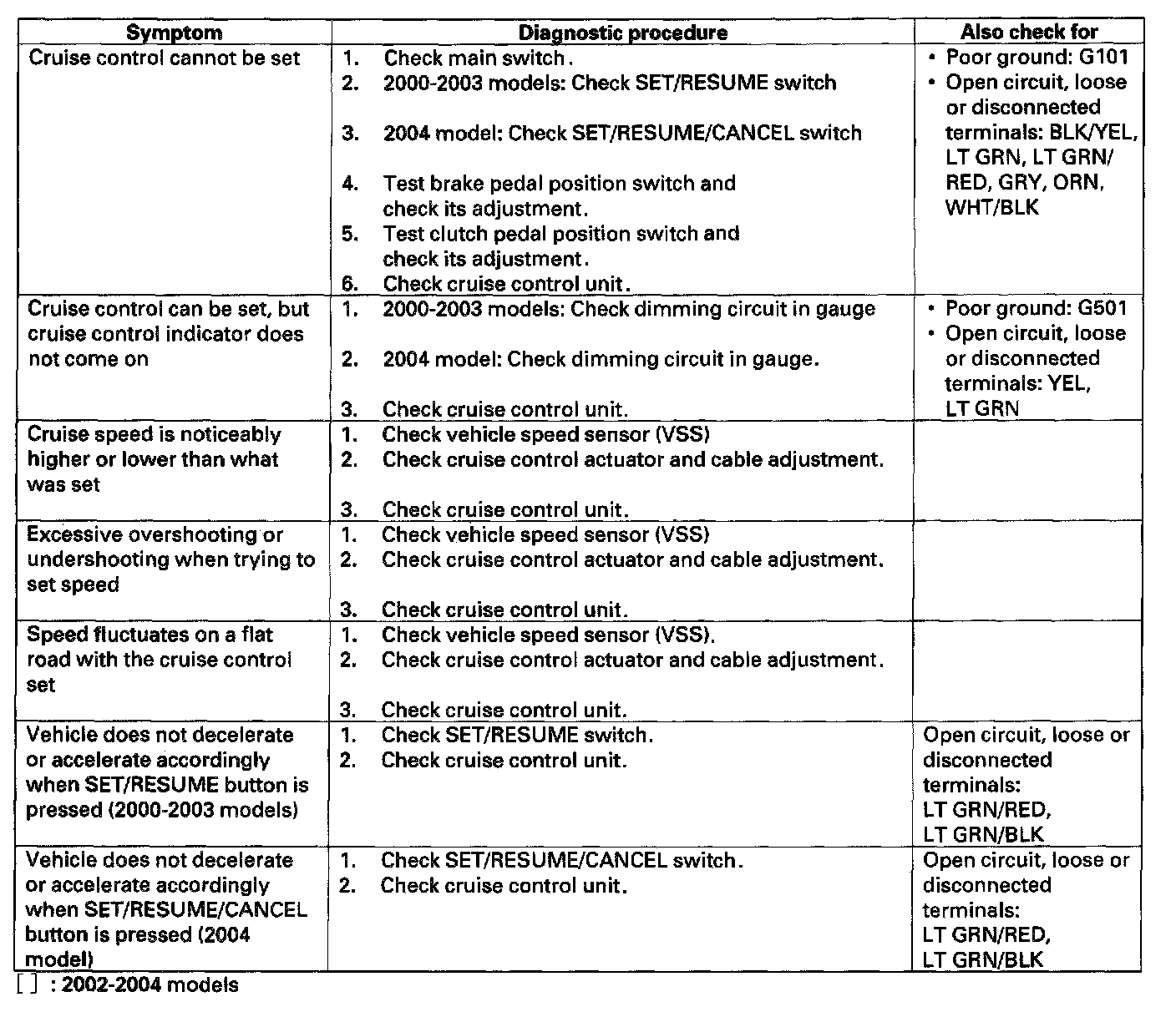

Symptom Troubleshooting Index Part 2:

NOTE:
- The numbers in the table show the troubleshooting sequence.
- Before troubleshooting,
- Check that the speedometer works properly.
- Check the No.23 (10 A) and No.6 (15 A) fuses in the under-dash fuse/relay box, and No.47 (10 A) [No.47 (15 A)] fuse in the main under-hood fuse/relay box.
- Check that the horn sounds.
- Check the tachometer to see if it works properly.
