Views 26-50: 49

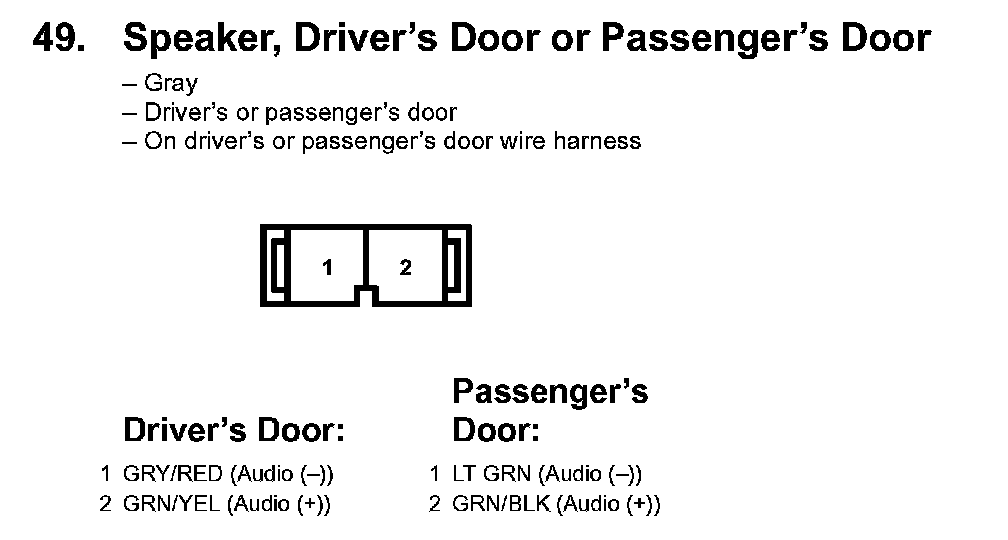

49. Speaker, Driver's Door Or Passenger's Door:

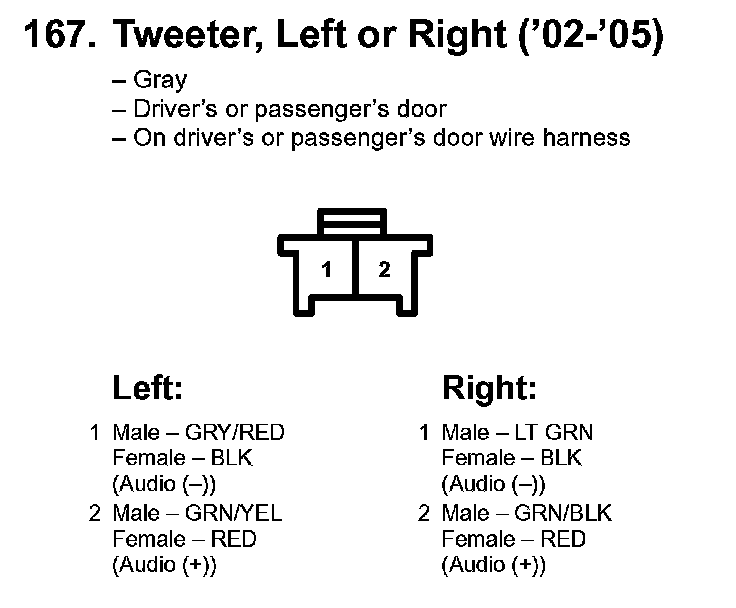

167. Tweeter, Left Or Right:



176. Headrest Speakers, Driver's Or Passenger's (Honda Accessory):
