Under-Dash Fuse and Relay Box

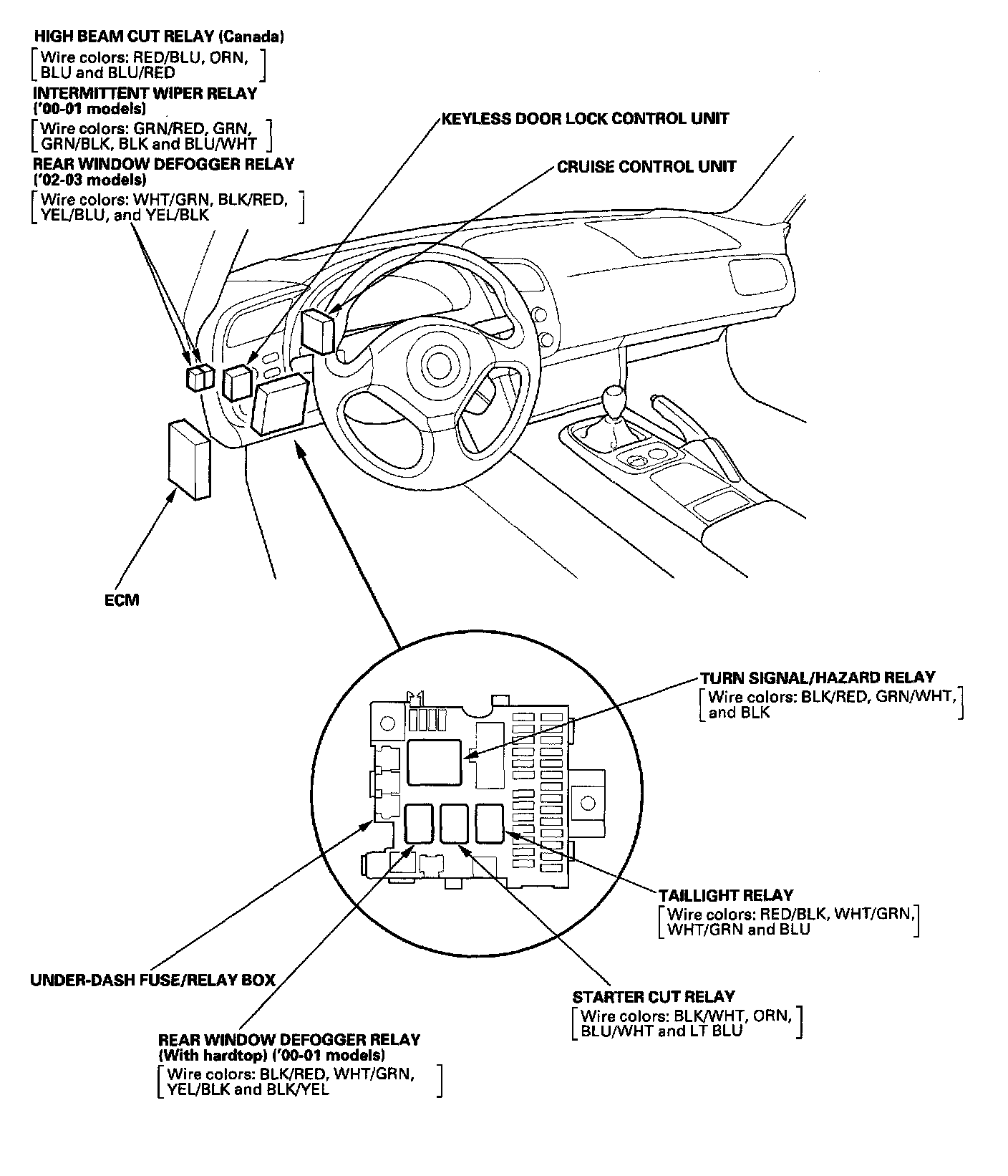

Relay And Control Unit Locations - Dashboard:

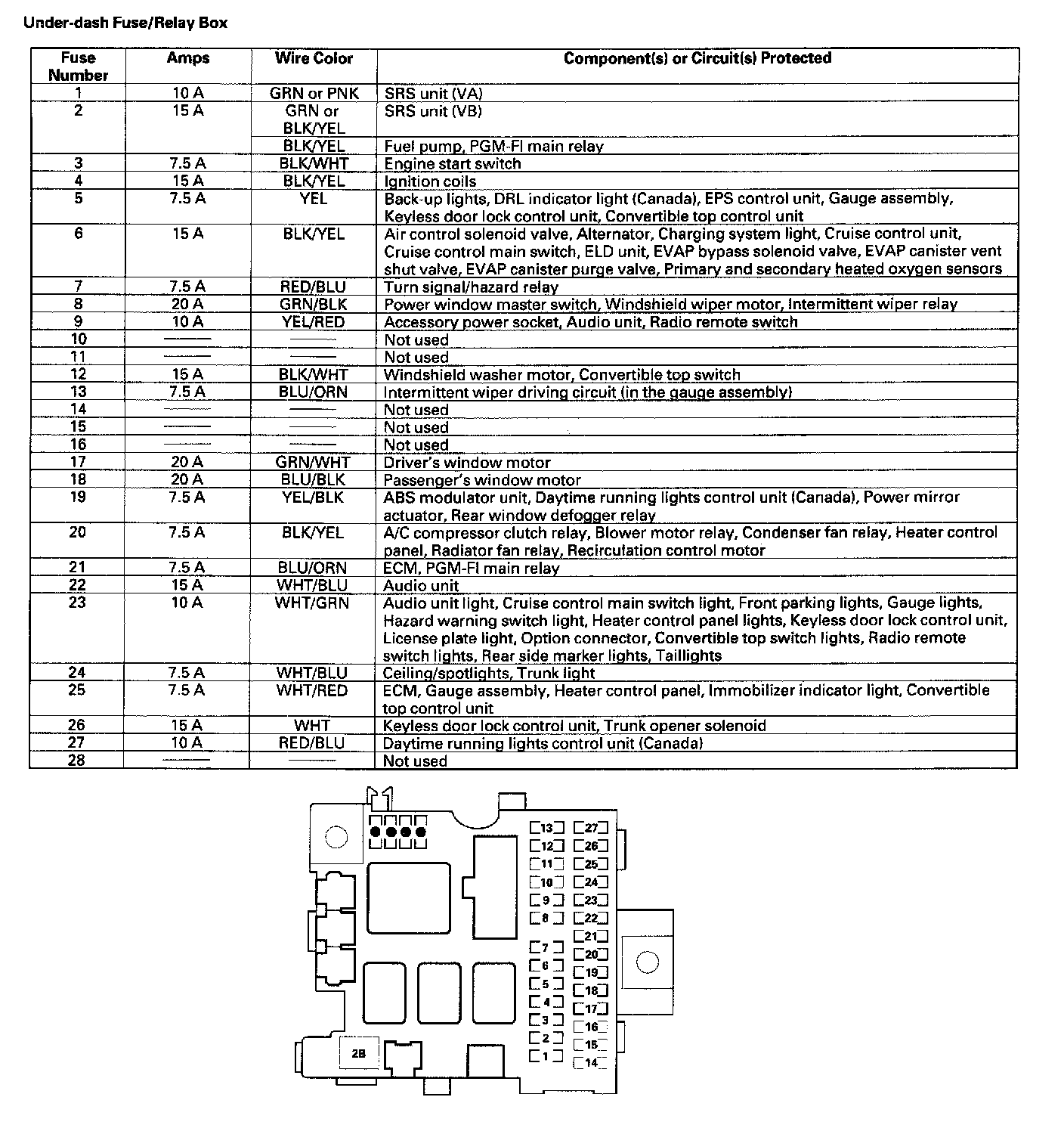

Under-Dash Fuse/Relay Box:

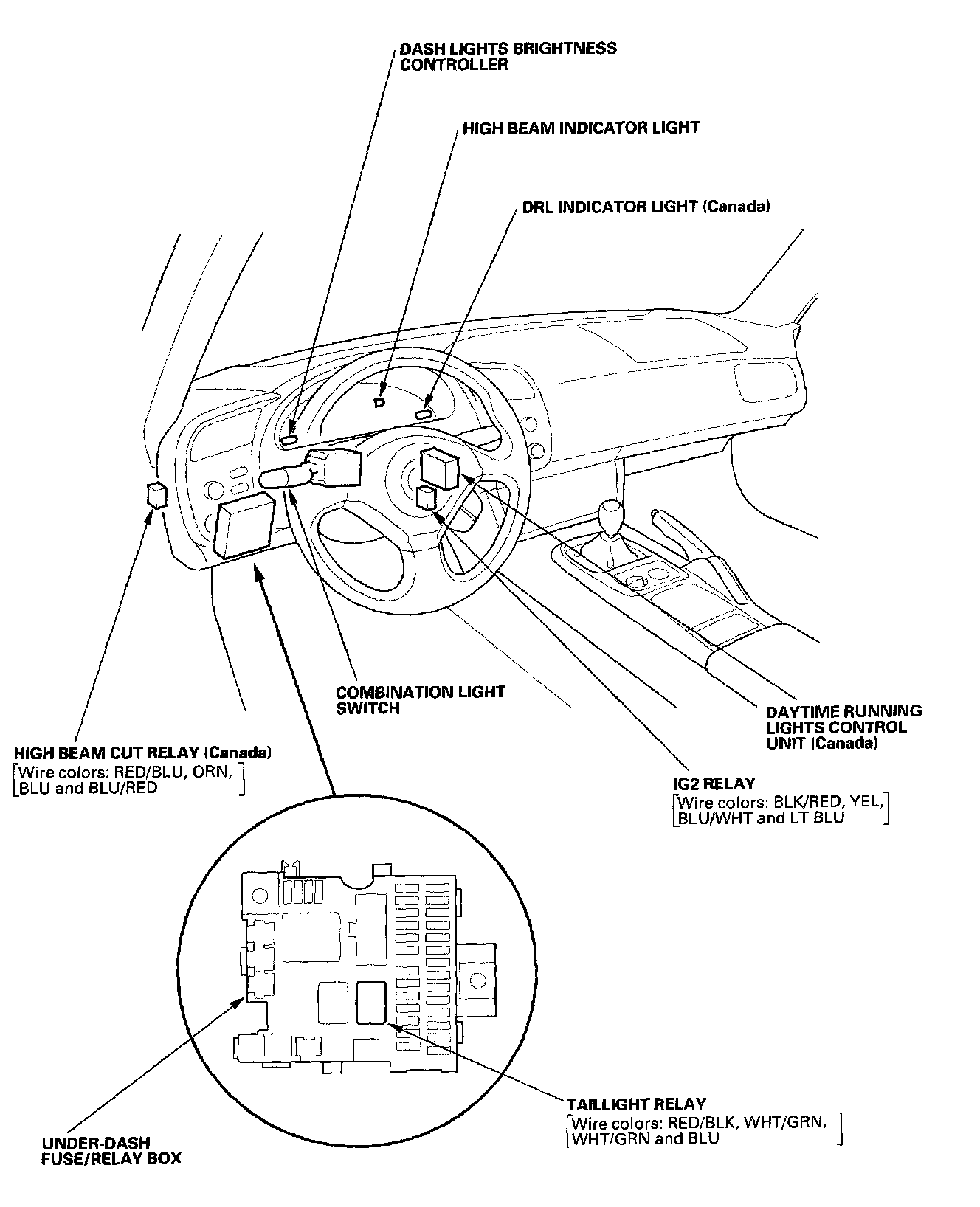

Exterior Lights Component Location Index:

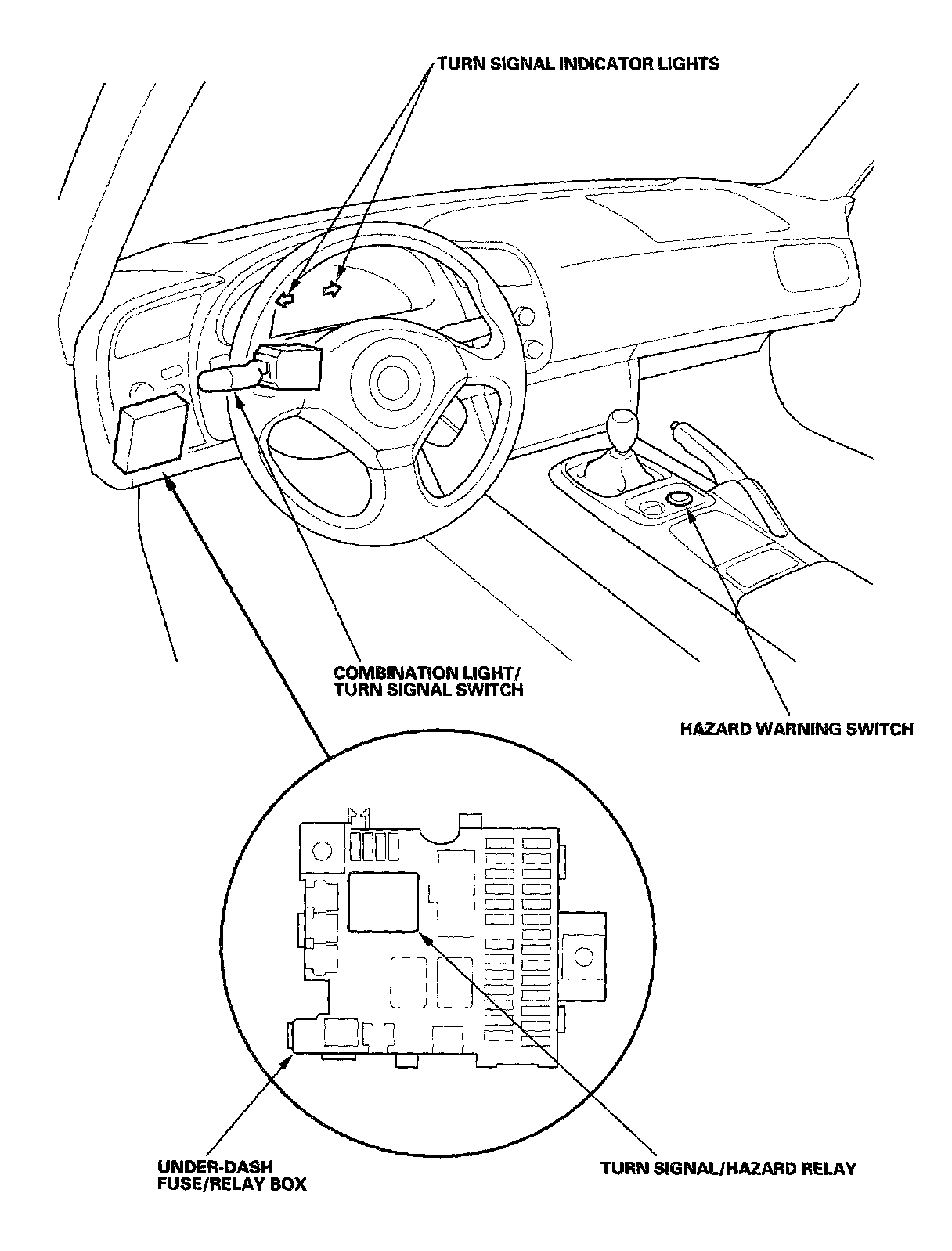

Turn Signal / Hazard Flasher Component Location Index:

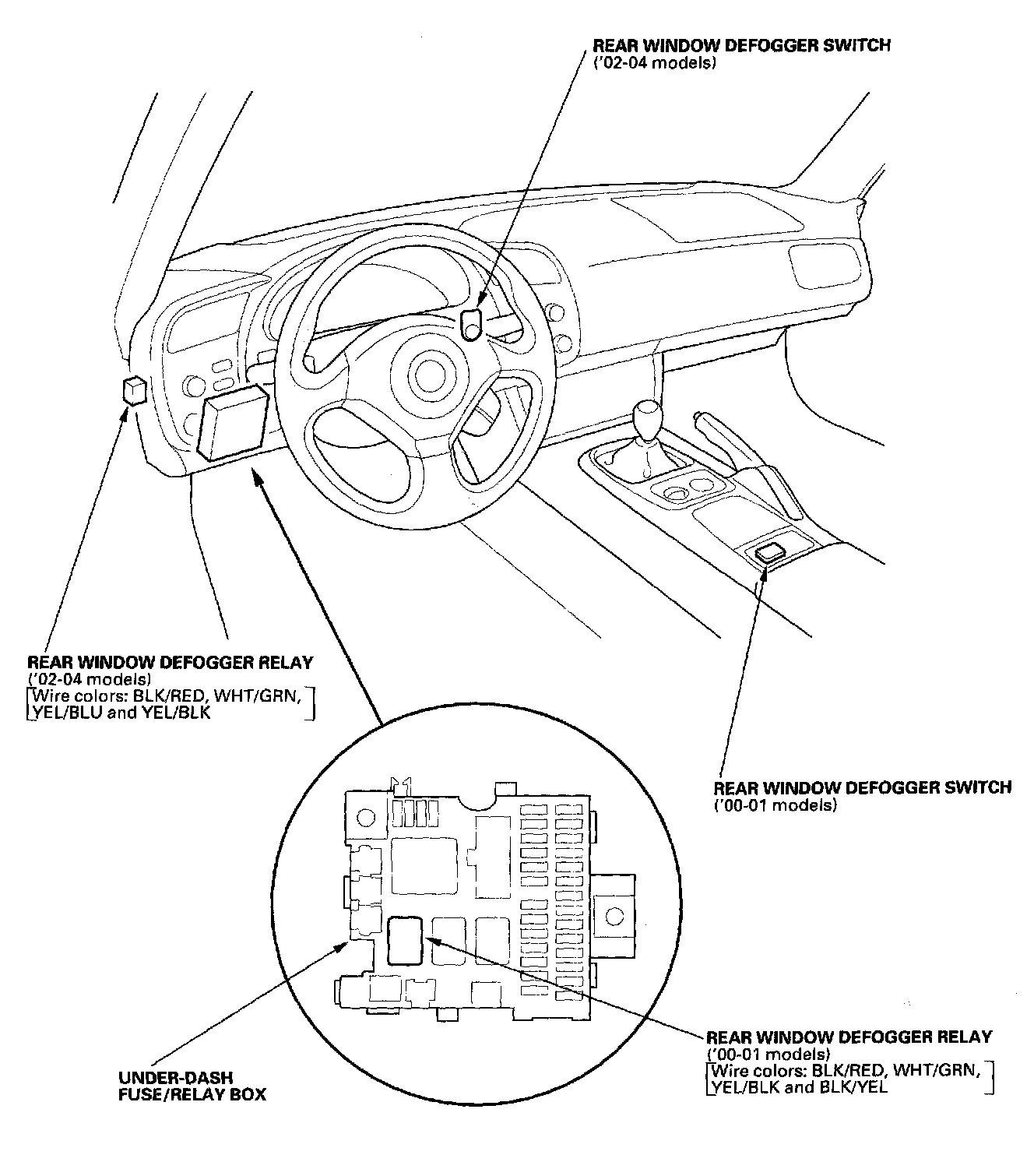

Rear Window Defogger Component Location Index:

Relay And Engine Control Unit Locations - Dashboard:

Under-dash Fuse/Relay Box:

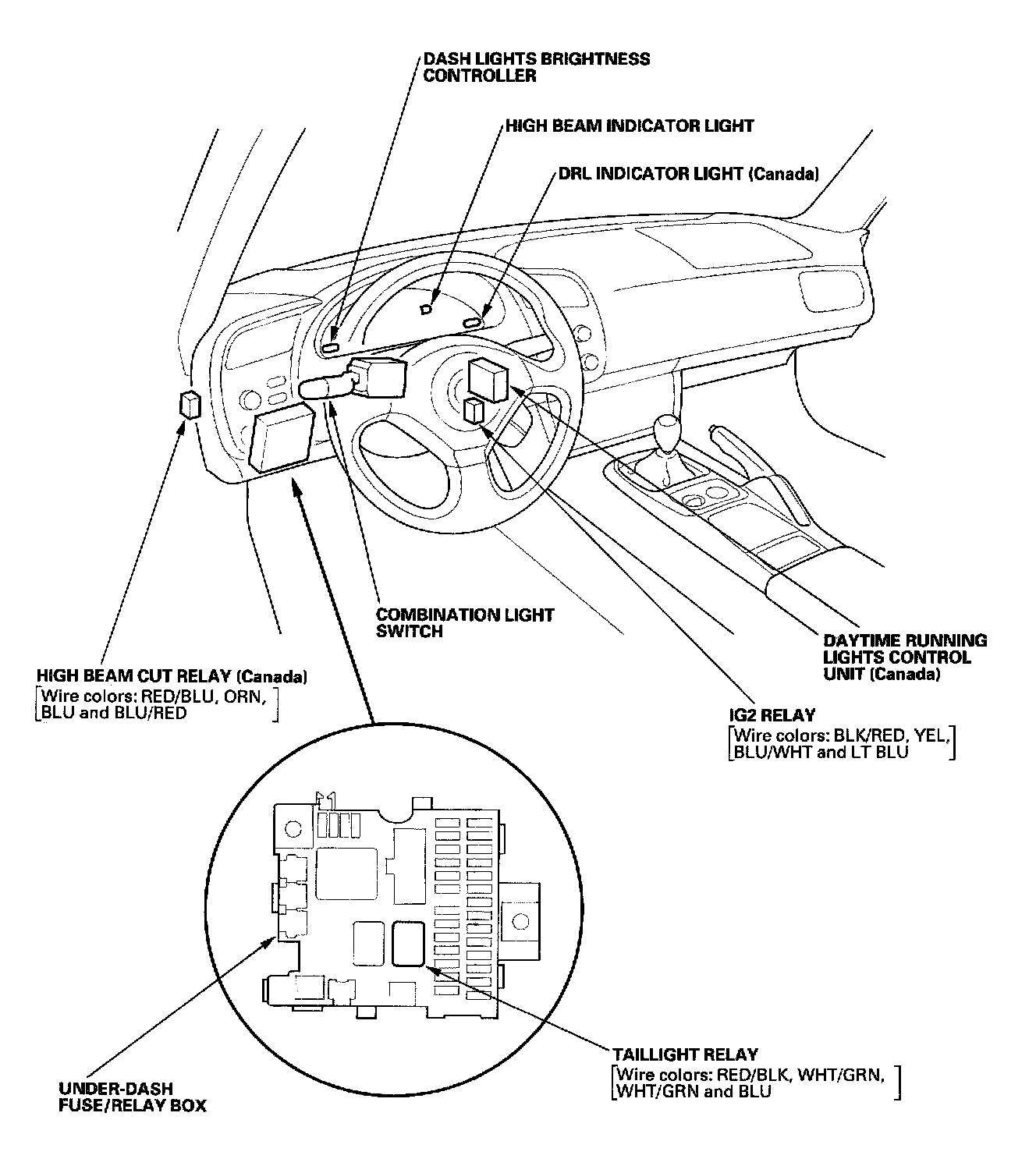

Exterior Lights - Component Location Index:

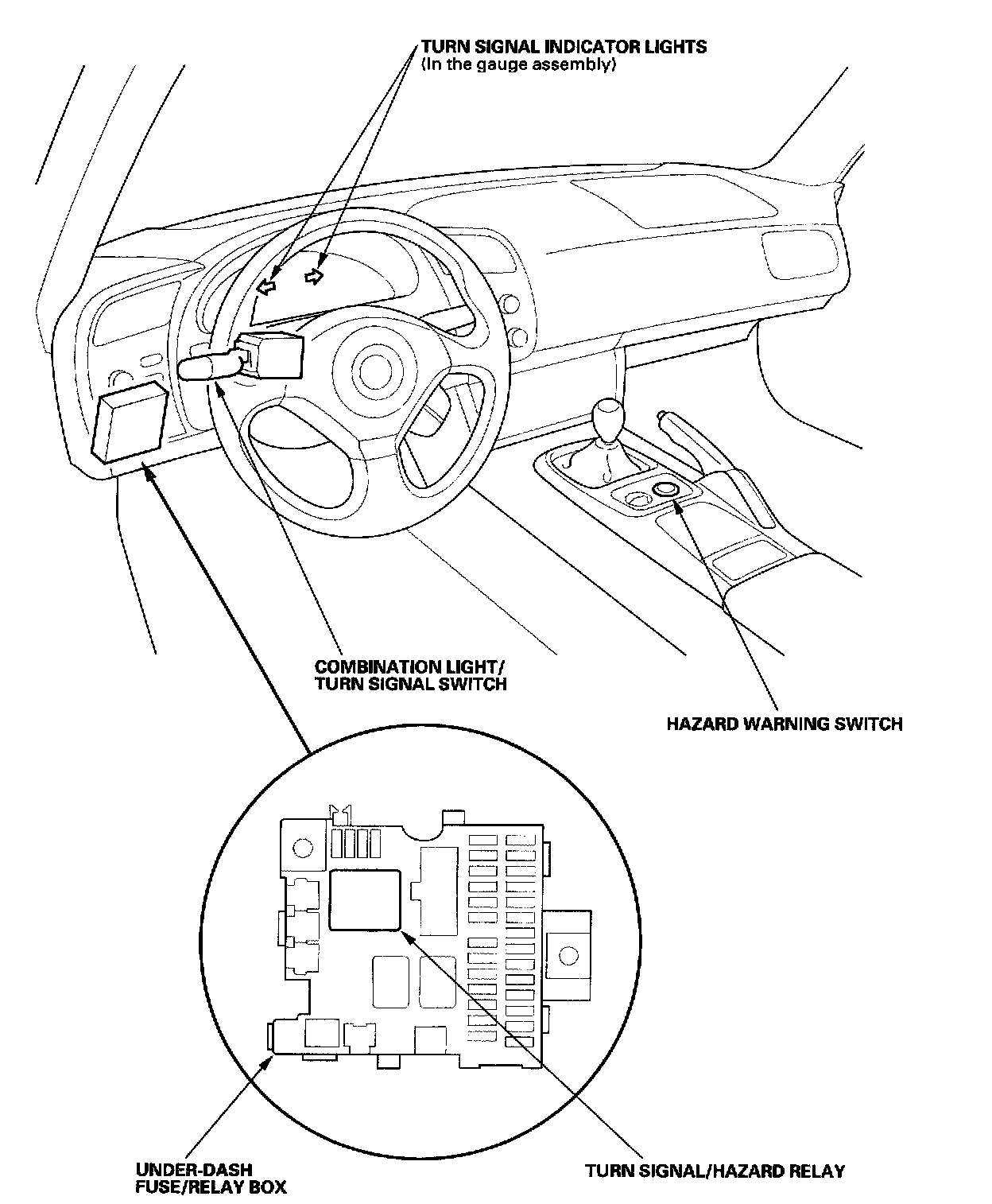

Turn Signal/Hazard Flasher - Component Location Index:

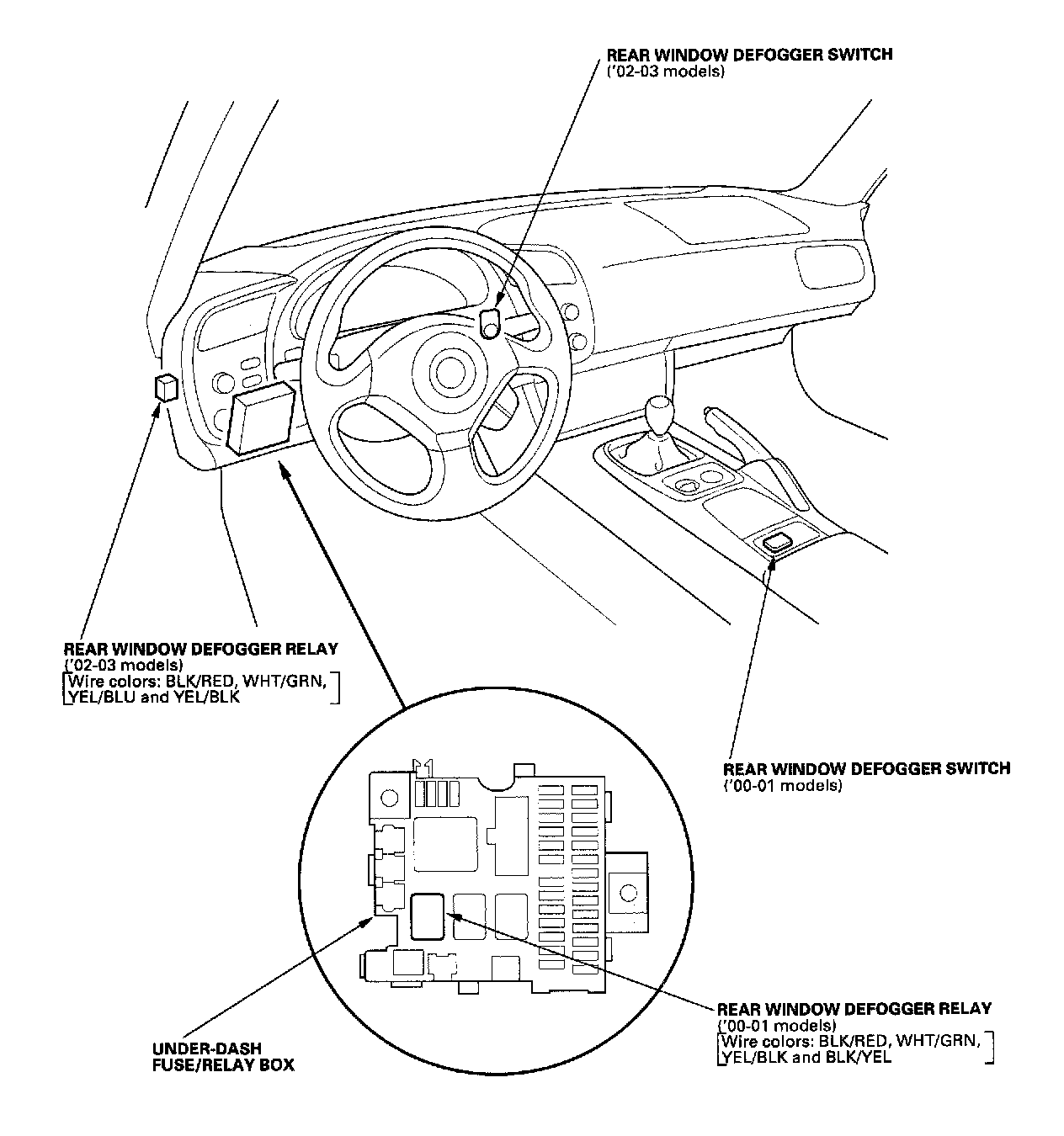

Rear Window Defogger - Component Location Index:
