Secondary HO2S Replacement

Secondary HO2S Replacement

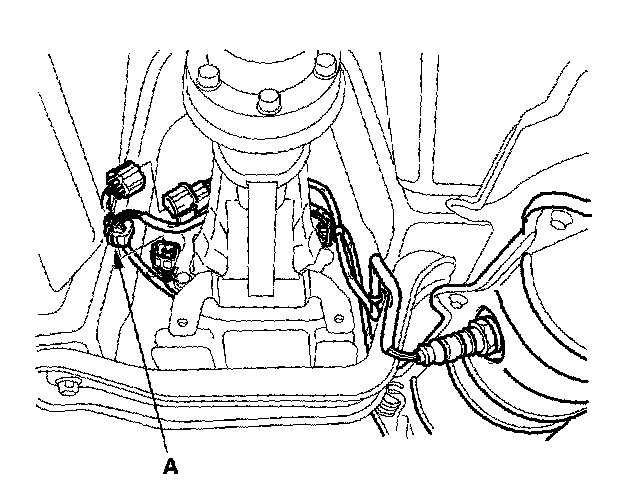

1. Disconnect the primary HO2S 4P connector (A)

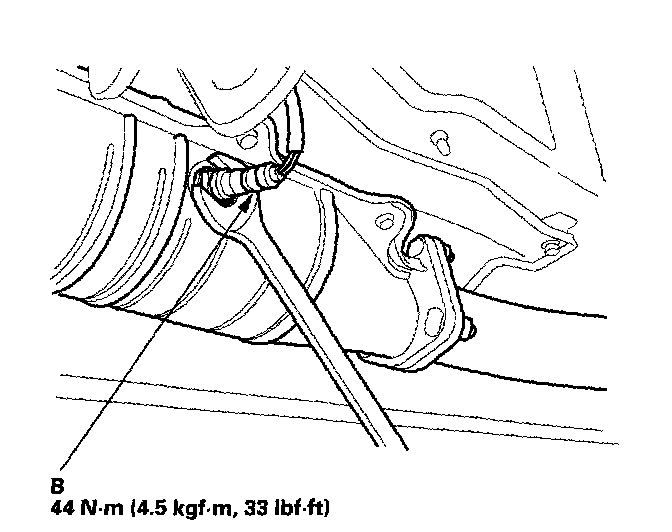

2. Remove the primary HO2S (B).
3. install the secondary HO2S in the reverse order of removal.
