Starter Switch Signal Circuit Troubleshooting
Starter Switch Signal Circuit TroubleshootingNOTE: The clutch pedal must be pressed.

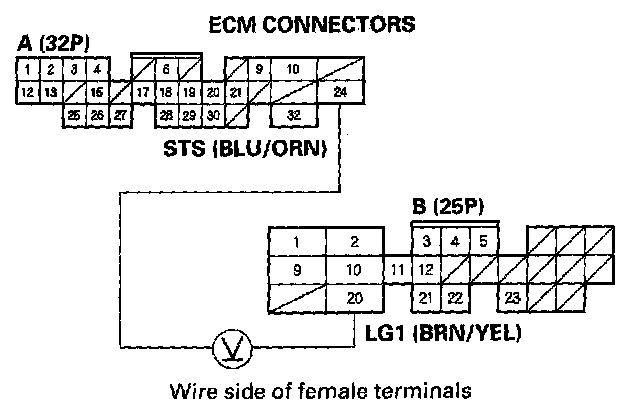

1. Measure voltage between ECM connector terminals A24 and B20 with the ignition switch in the ON (II) position and the engine start button pressed.
Is there battery voltage?
YES - The starter switch signal is OK.
NO - Go to step 2.
2. Inspect the No. 21 STARTER SIGNAL (7.5 A) fuse in the under-dash fuse/relay box.
Is the fuse OK ?
YES - Repair open in the wire between the ECM (A24) and the No. 21 STARTER SIGNAL (7.5 A) fuse.
NO - Repair short in the wire between the ECM (A24) and the No. 21 STARTER SIGNAL (7.5A) fuse or the PGM-FI main relay. Replace the No. 21 STARTER SIGNAL (7.5 A) fuse.
