Air Injection Pump Relay: Service and Repair

Air Pump/Air Pump Relay Removal/Installation

1. Remove the front bumper.

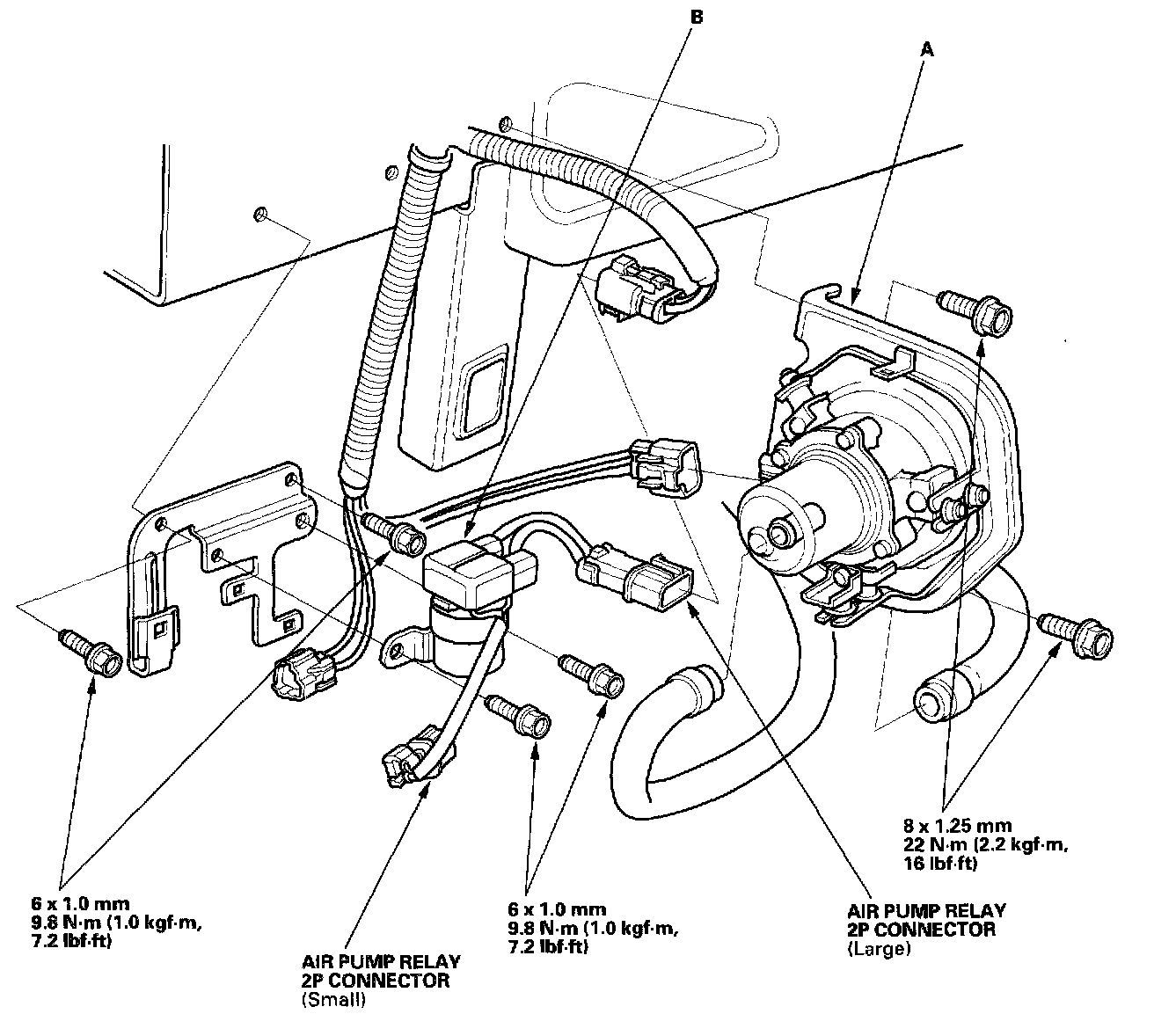

2. Remove the air pump (A), and the air pump relay (B).
3. Install in the reverse order of removal.
