PCM A/T Control System

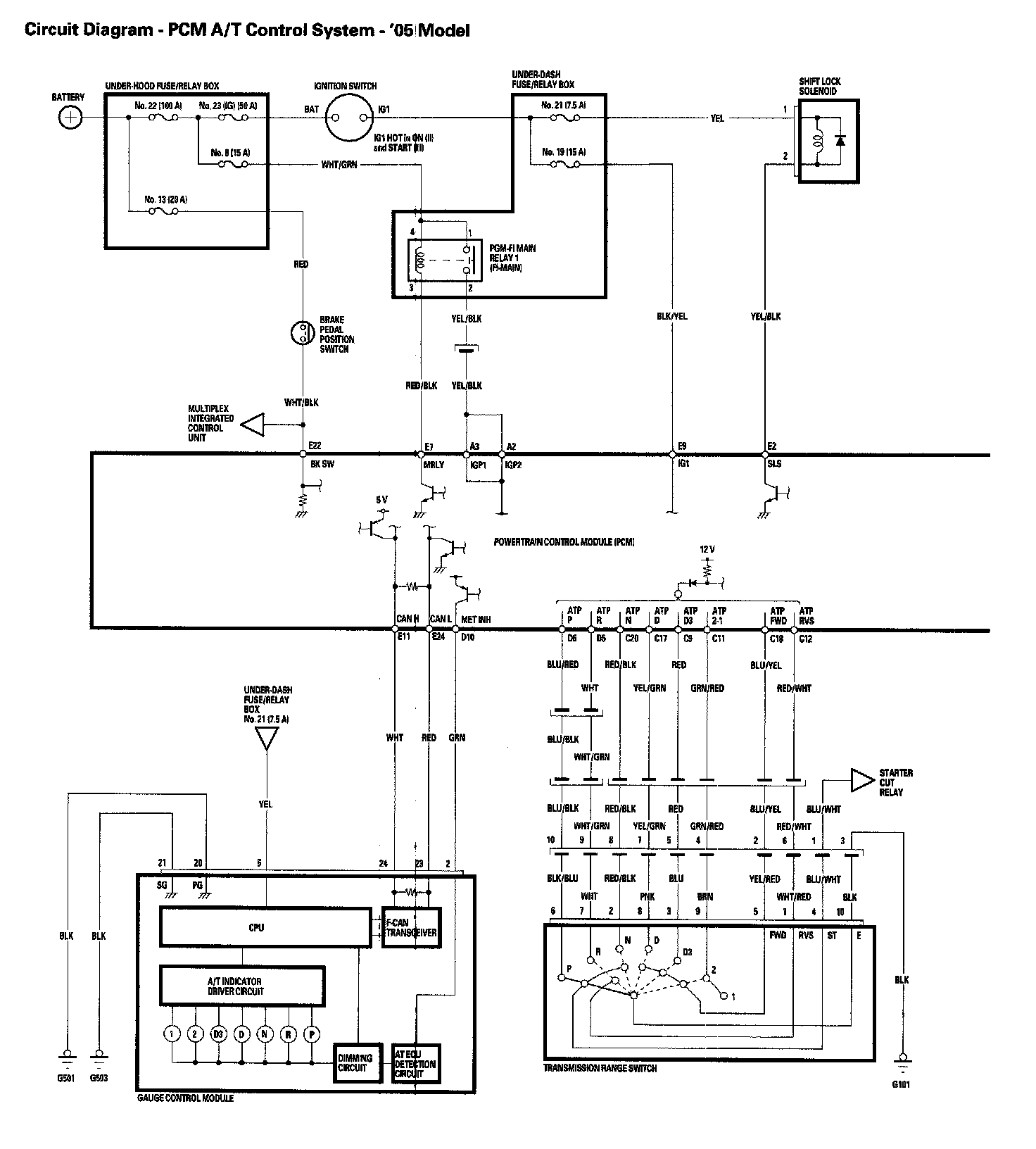

Circuit Diagram - PCM Control System - '05 Model:

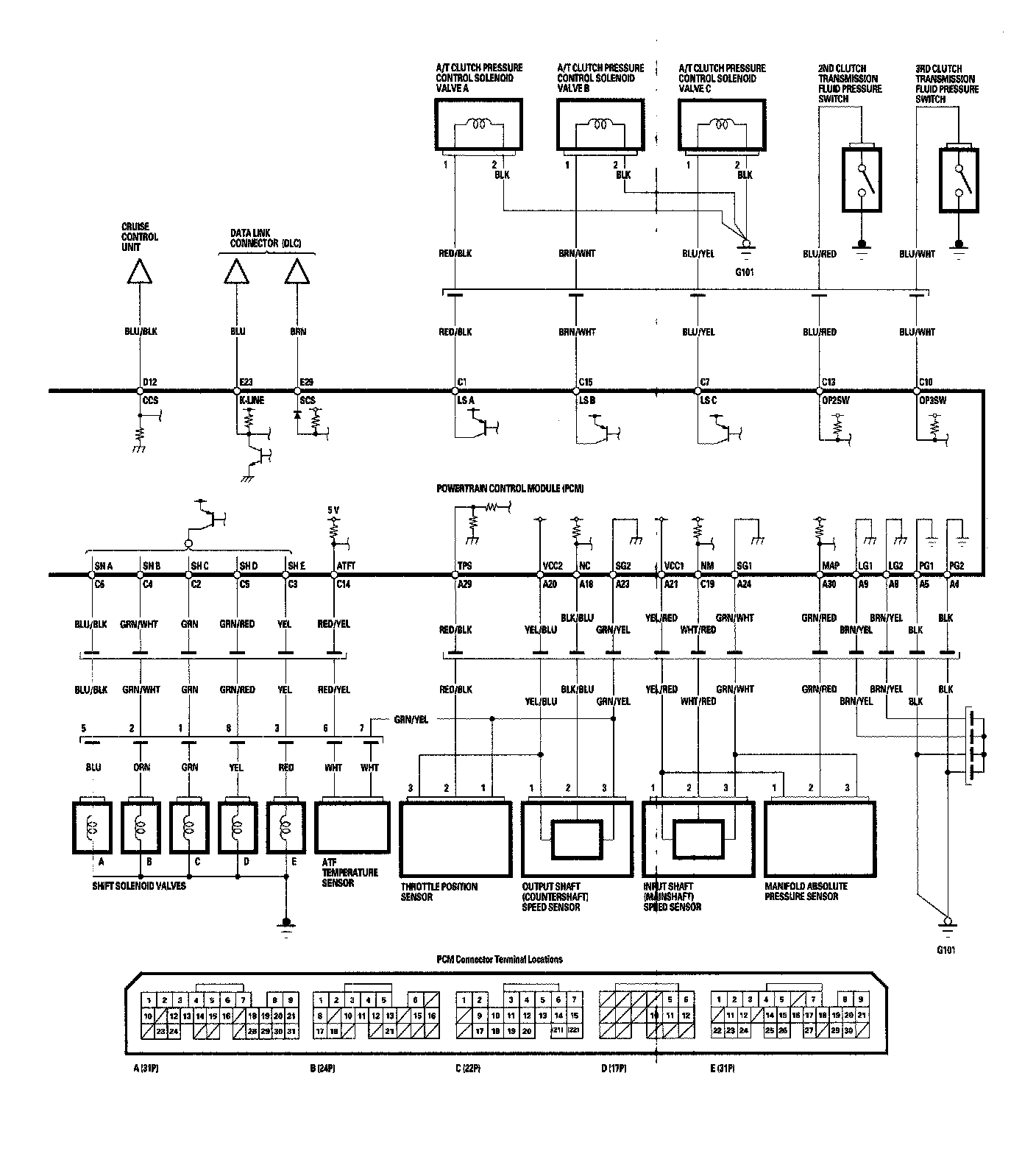

Circuit Diagram - PCM Control System - '05 Model:
