Heater Control Panel Bulb Replacement

Heater Control Panel Bulb Replacement

1. Discharge the static electricity (which accumulated on you when you removed the climate control unit) by touching the door striker or other body parts.

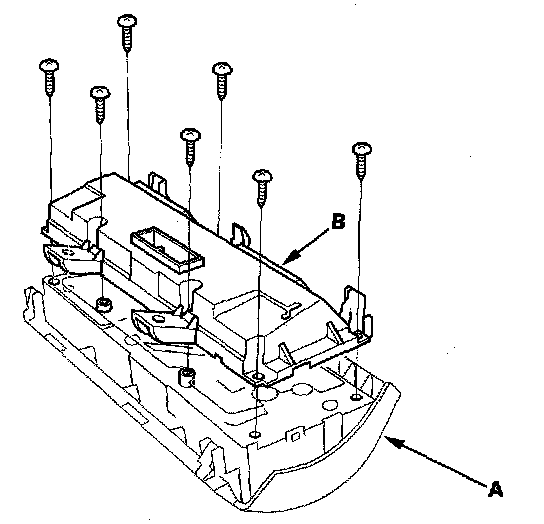

2. Remove the self-tapping screws, then carefully separate the heater control panel display (A) from the control panel (B). Do not kink or pull on the wires between the display and the control panel. Do not touch the electronic components on the printed circuit board in the control panel.




3. Remove the bulb(s) with a flat-tip screwdriver.
4. Install the bulb(s) in the reverse order of removal.
