CMP Pulse Plate B (TDC Pulse Plate) Replacement

CMP Pulse Plate A (TDC Pulse Plate) Replacement
1. Remove the cylinder head cover.

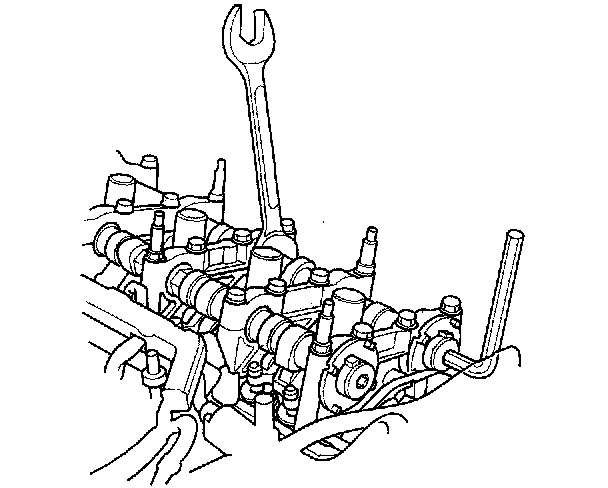

2. Hold the exhaust camshaft with an open-end wrench, then loosen the bolt.

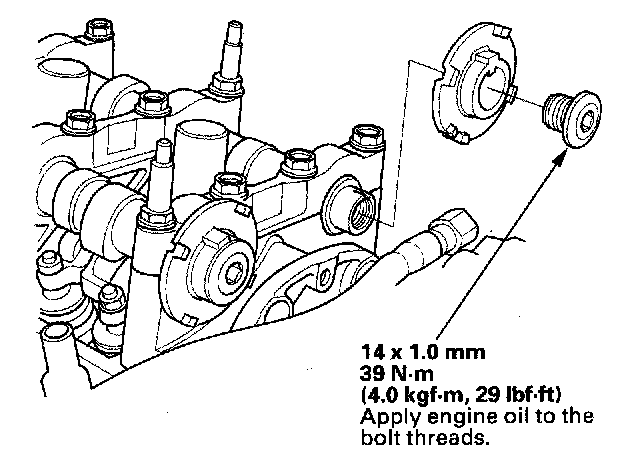

3. Remove the camshaft position (CMP) pulse plate B (top dead center (TDC) pulse plate).
4. Install the CMP pulse plate B (TDC pulse plate) in the reverse order of removal.
