Service Specifications

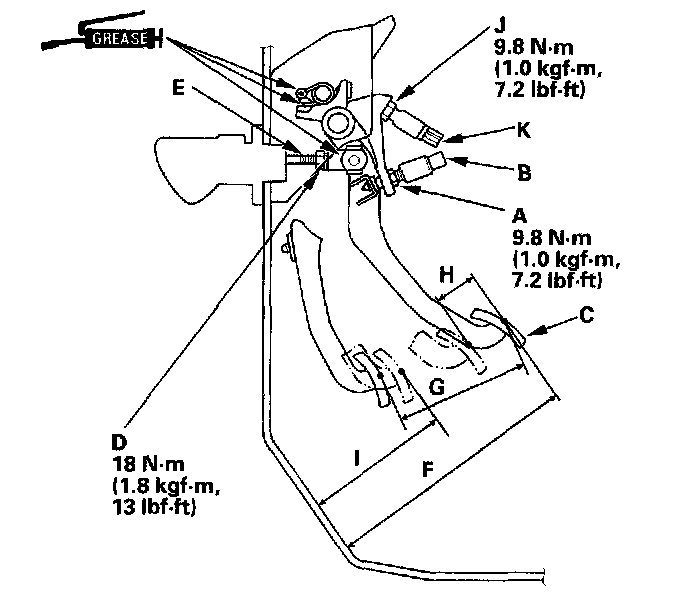

Clutch Pedal





Pedal height (F)
Stroke (G)
Free play (H)
Disengagement height (I)
Clutch Pedal Stroke: 125 - 135 mm (4.92 - 5.31 inch)
Clutch Pedal Free Play: 6 - 17 mm (0.24 - 0.67 inch)
Clutch Pedal Height: 200 mm (7.87 inch)
Clutch Pedal Disengagement Height: 112 mm (4.41 inch)


Pressure Plate

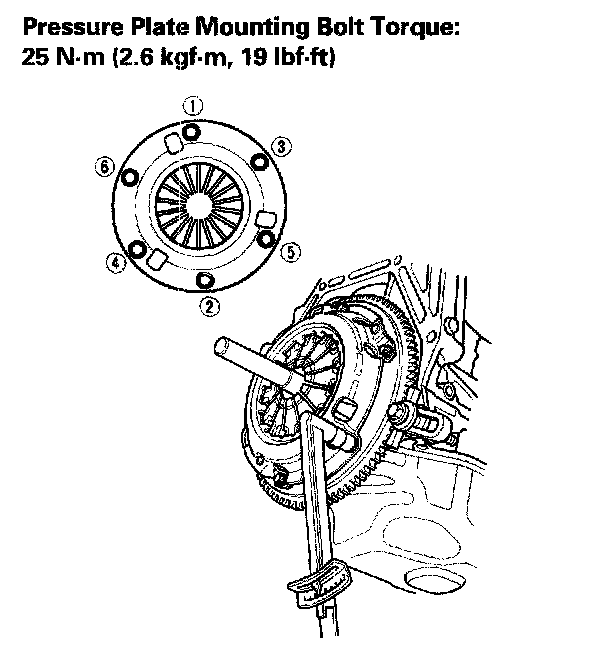

Torque the mounting bolts in a crisscross pattern. Tighten the bolts in several steps to prevent warping the diaphragm spring.


Flywheel, M/T

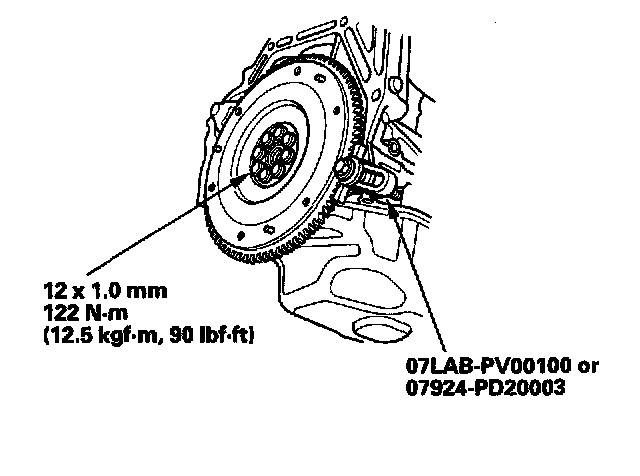

Install the special tool, then torque the flywheel mounting bolts in a crisscross pattern in several steps.
