EVAP Canister Purge Valve Replacement

  1. Remove the intake manifold cover (see step 1 on REMOVAL ).
  2. Disconnect the EVAP canister purge valve connector (A), and hose (B).

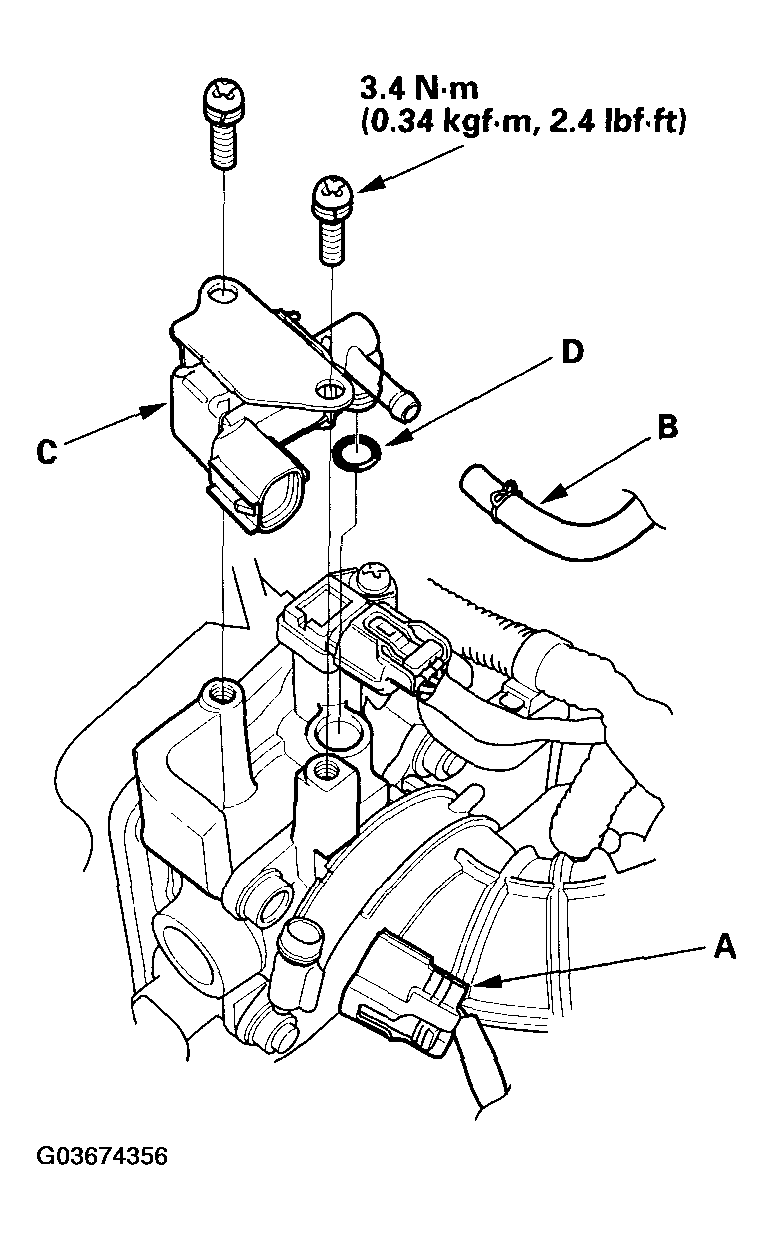

    Fig 1: Disconnecting EVAP Canister Purge Valve Connector, Hose, Canister Purge Valve With Torque Specifications
    G03674356Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EVAP canister purge valve (C).
  4. Install the EVAP canister purge valve in the reverse order of removal with a new O-ring (D).
