System Diagram

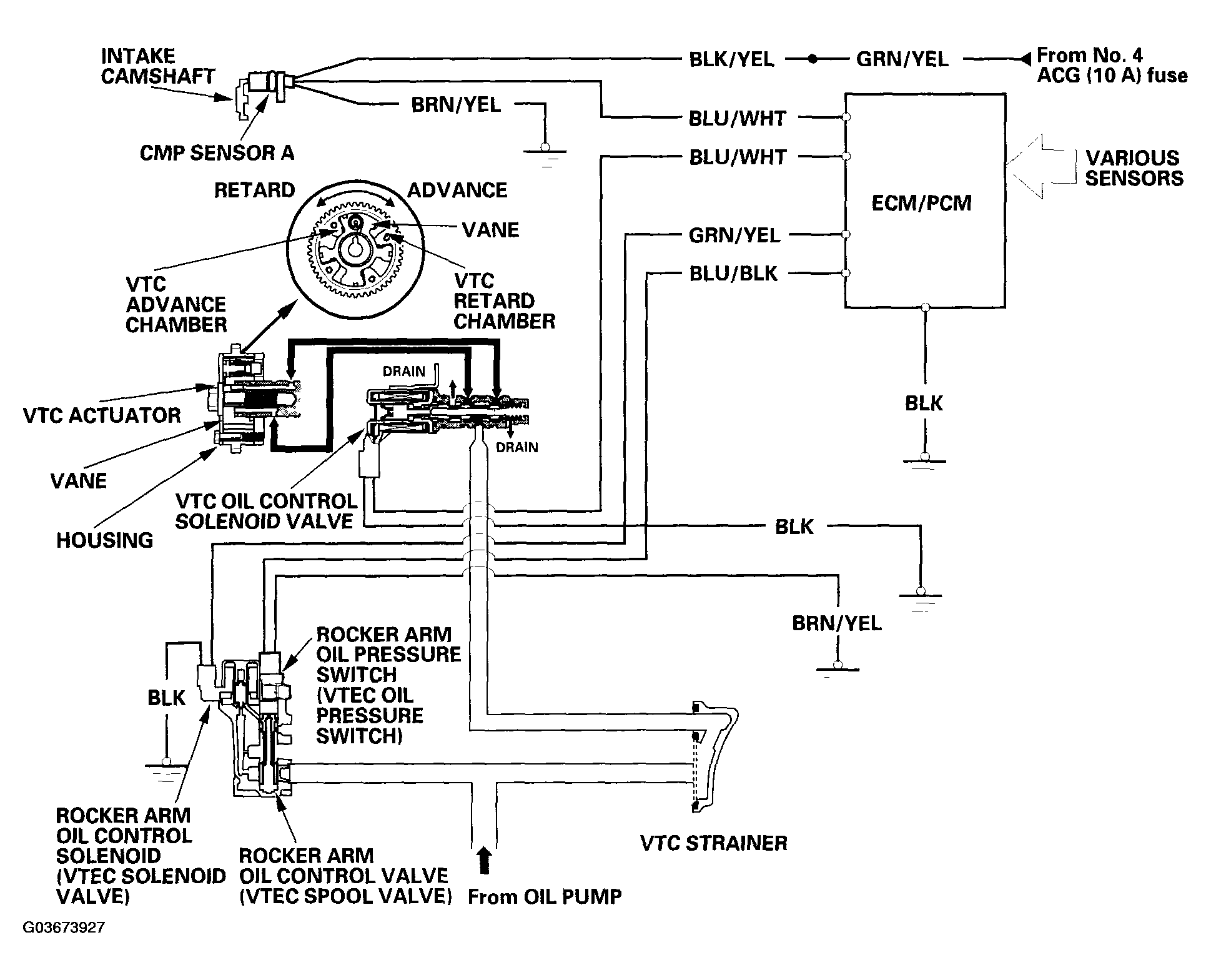

Fig 1: Identifying VTEC/VTC (System Diagram)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
