Fuel Tank Replacement

  1. Drain the fuel tank (see FUEL TANK DRAINING  ).
  2. Reinstall the fuel tank unit.
  3. Jack up the vehicle, and support it with jackstands.
  4. 4WD model:

    Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ). Remove the rear differential mounting bolt (A), then support it with jackstands.

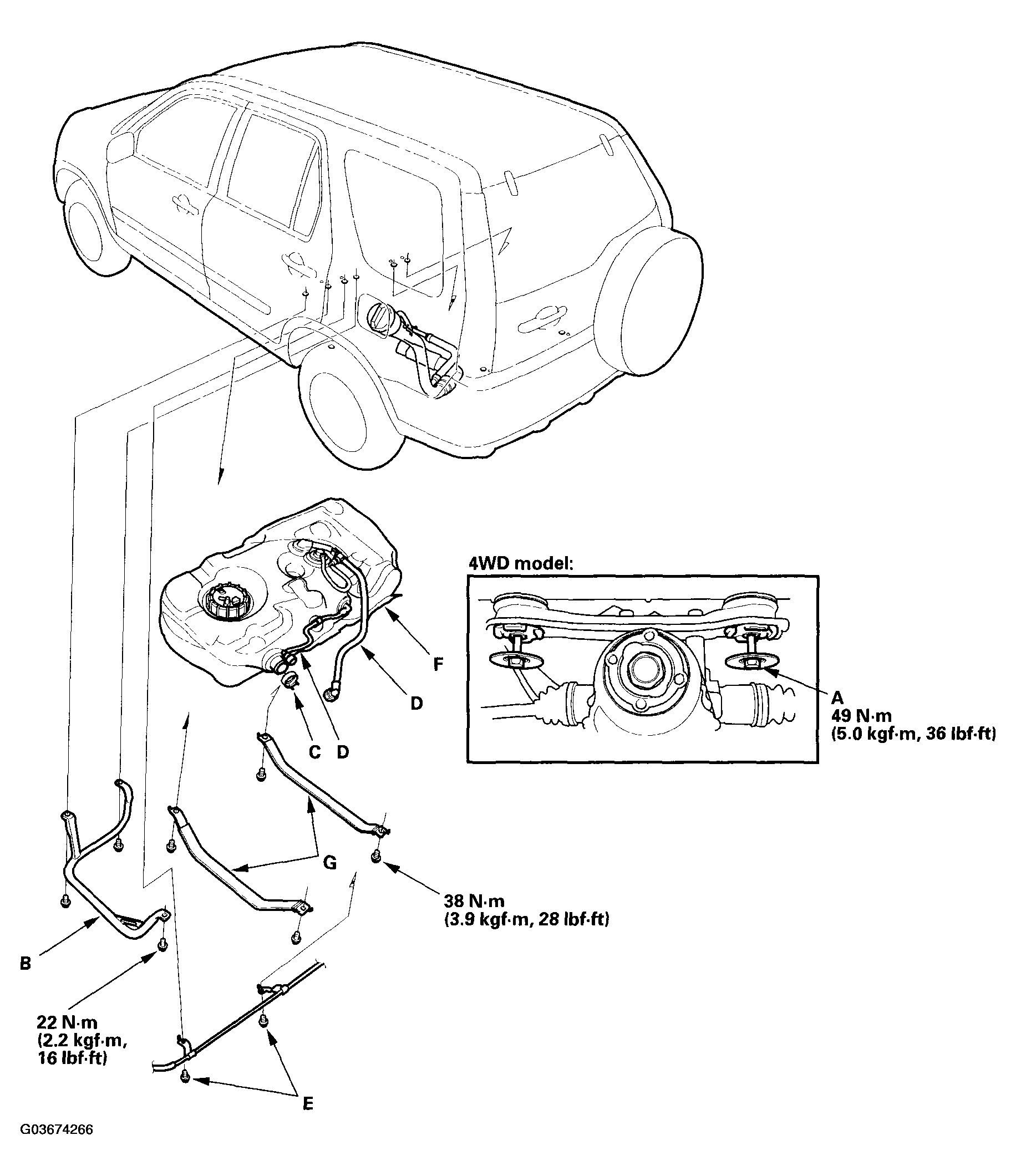

    Fig 1: Removing Propeller Shaft (4WD Model) With Torque Specifications
    G03674266Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Loosen the evaporative emission (EVAP) canister bracket bolt.
  6. Remove the fuel tank guard (B).
  7. Loosen the clamp (C).
  8. Disconnect the hoses (D), and parking brake cable holder bolts (E). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.
  9. Place a jack or other support under the tank (F).
  10. Remove the strap bolts and the straps (G).
  11. Remove the fuel tank.
  12. Install the parts in the reverse order of removal.
