Pinout Values and Diagnostic Parameters



TCM Electrical Connection

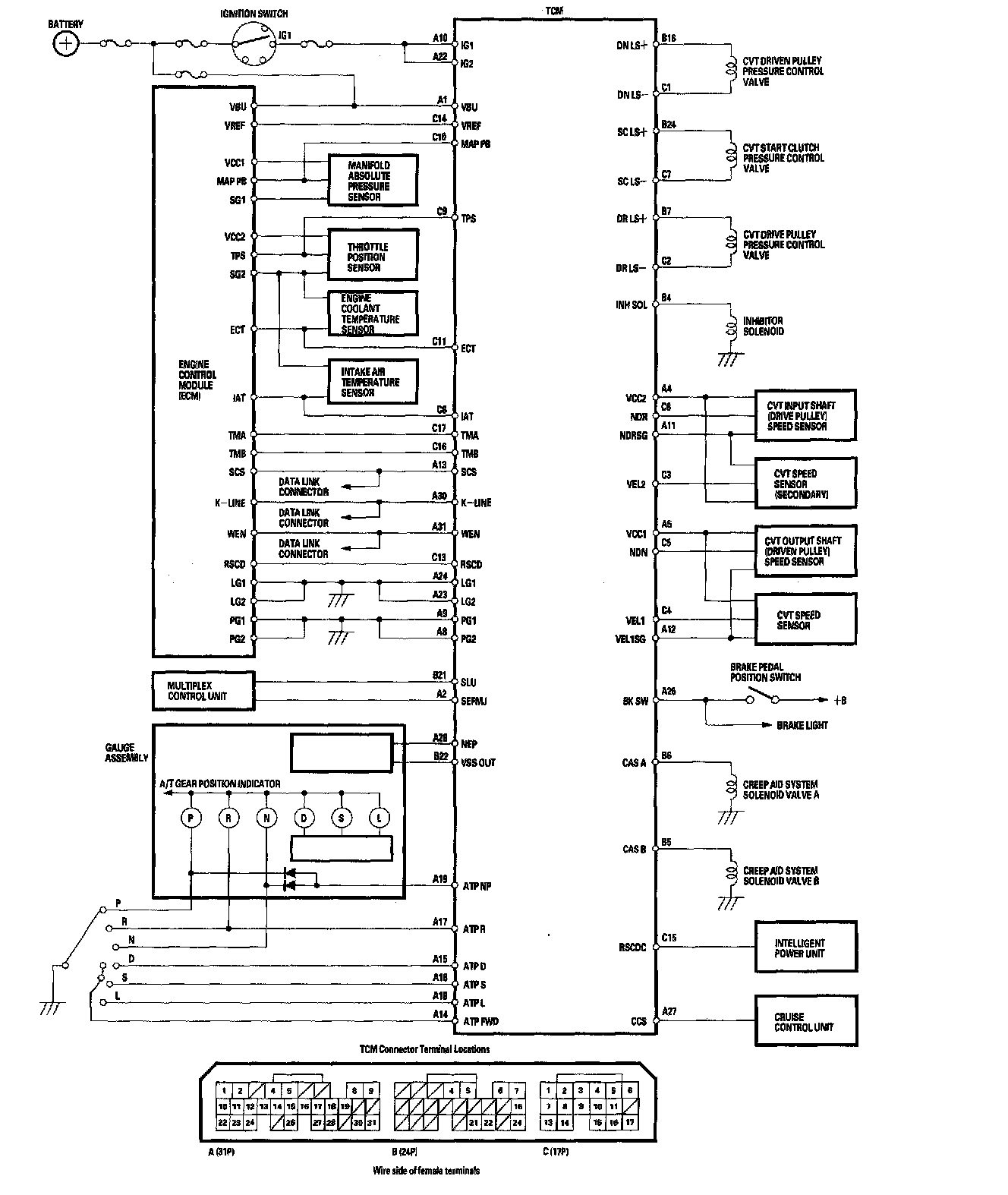

TCM Connection Circuit Diagram:






TCM Inputs and Outputs

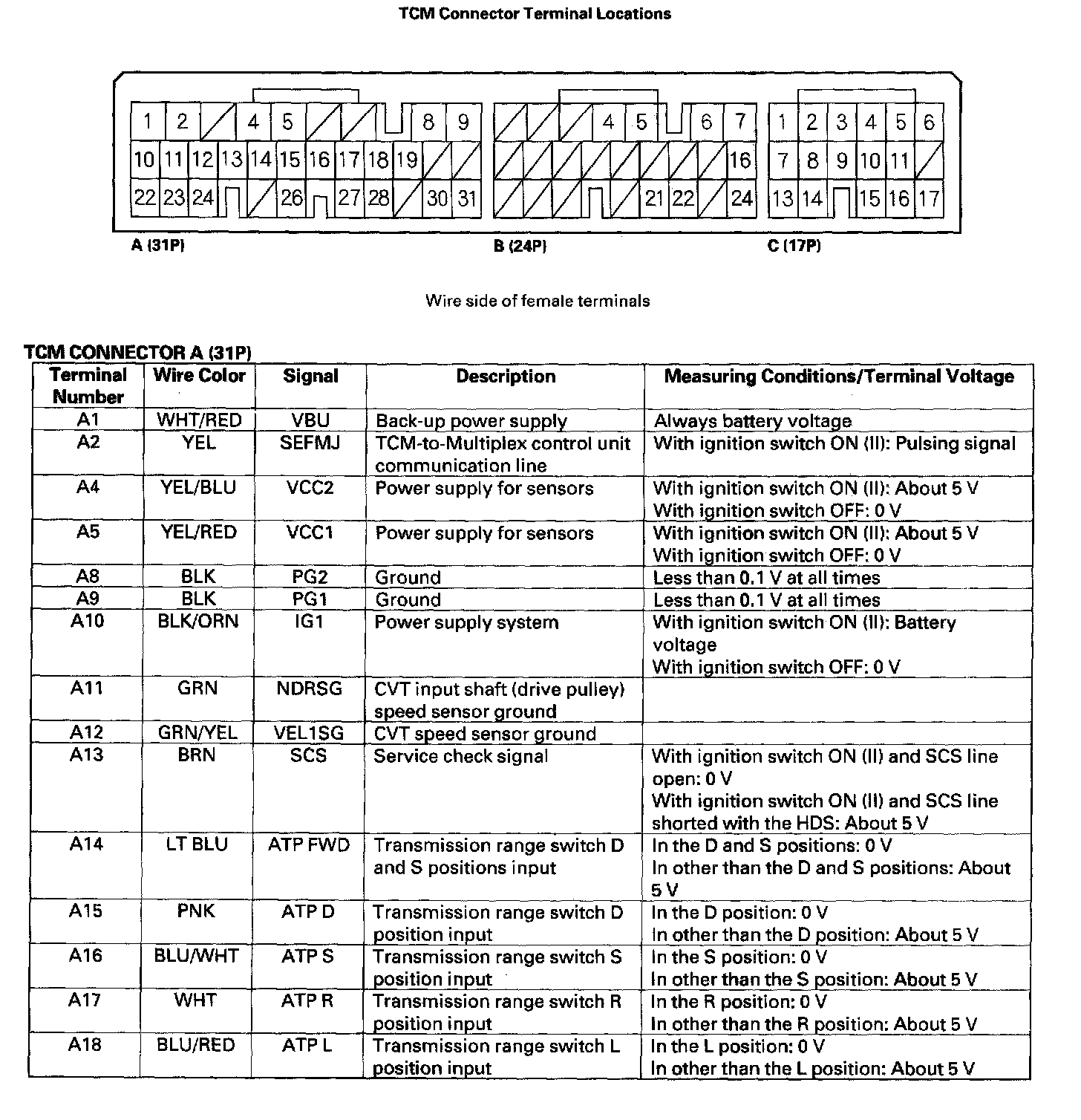

TCM CONNECTOR A (31P), Part 1 Of 2:

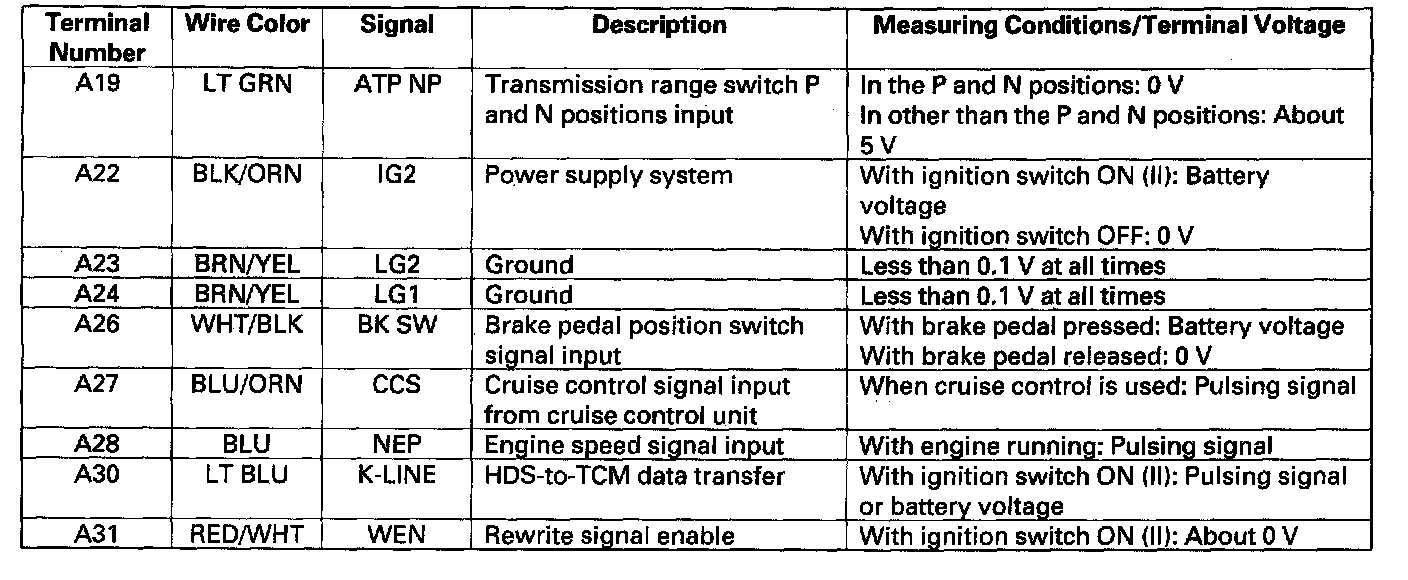

TCM CONNECTOR A (31P), Part 2 Of 2:

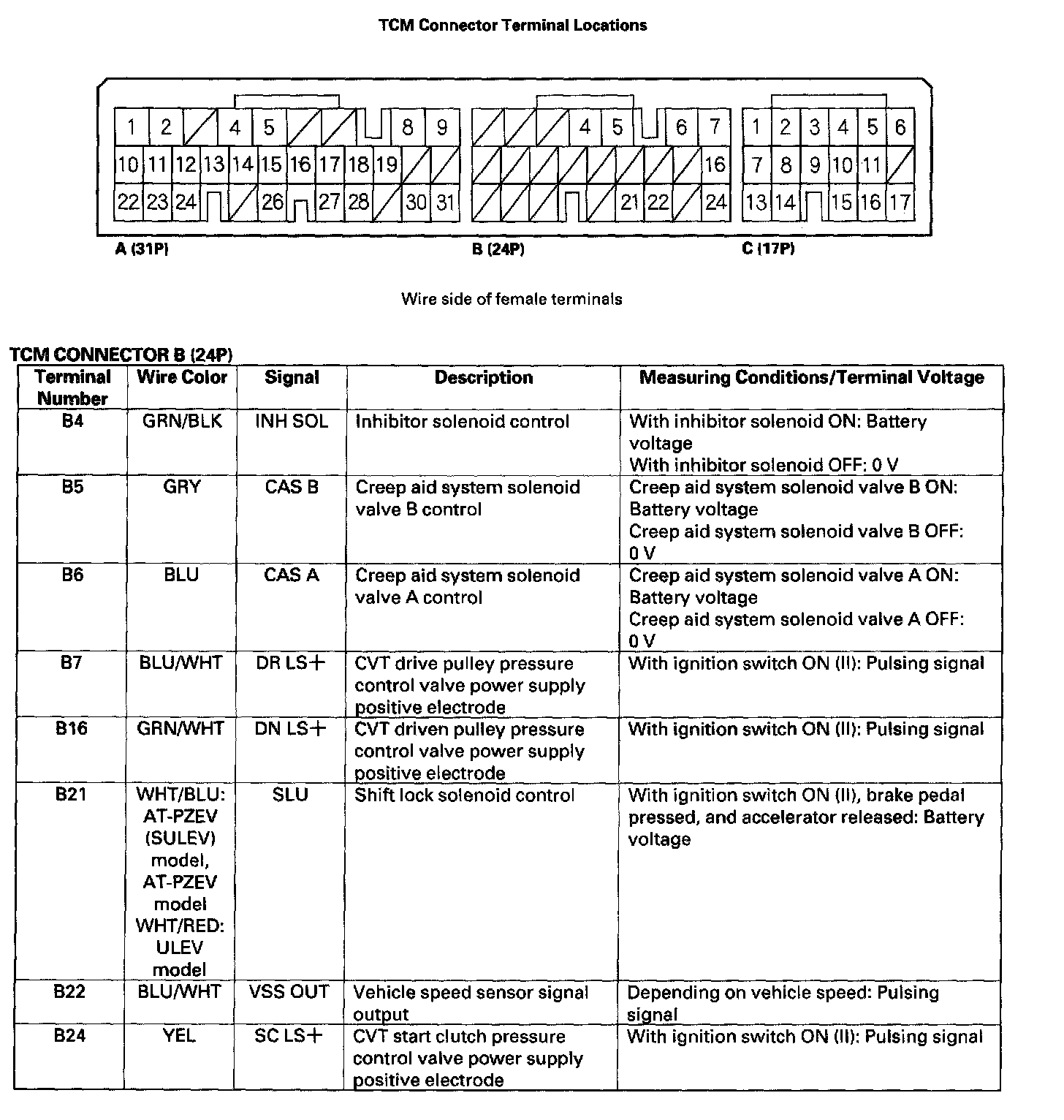

TCM CONNECTOR B (24P):

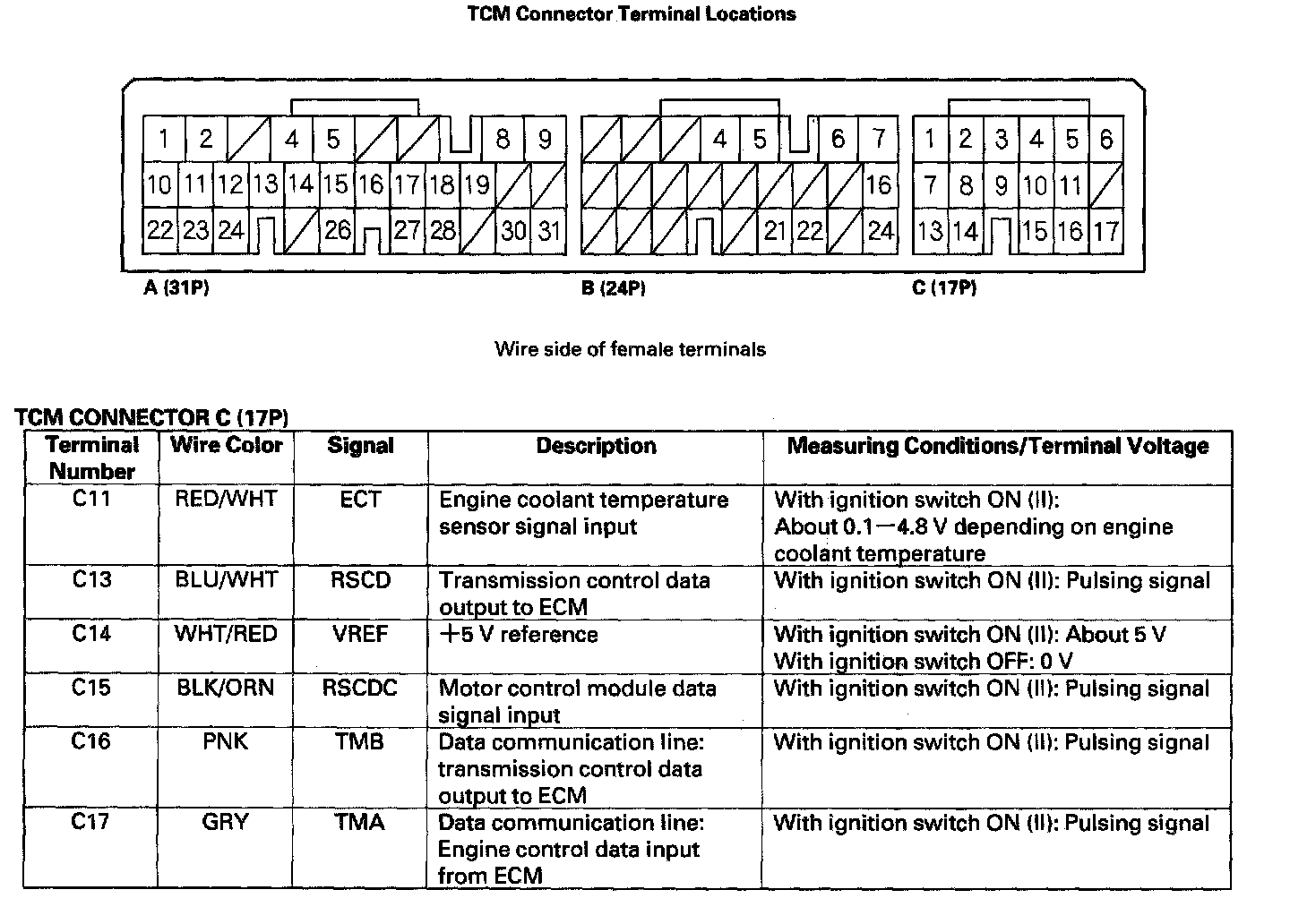

TCM CONNECTOR C (17P) Part 1 Of 2:

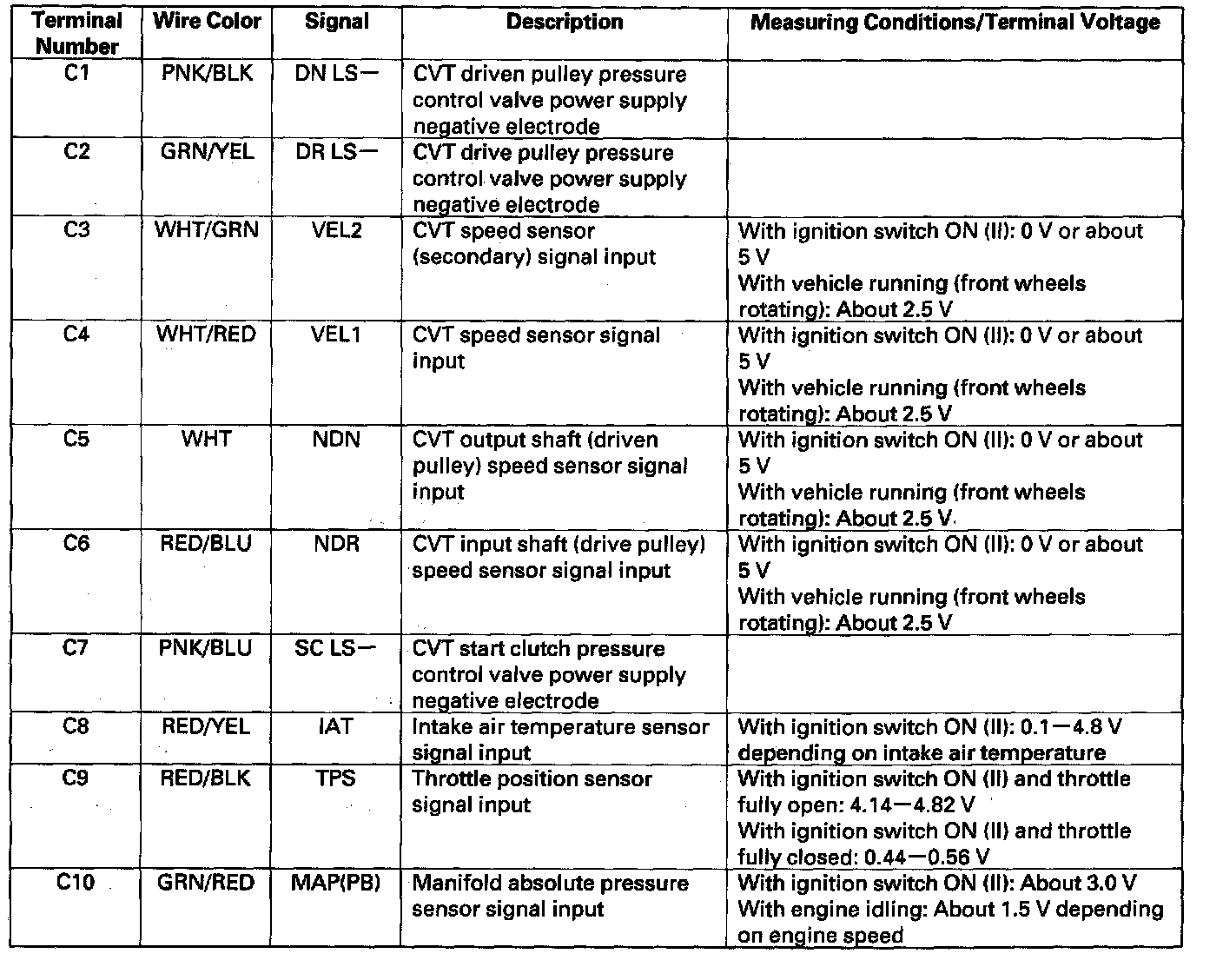

TCM CONNECTOR C (17P) Part 2 Of 2:
