Electric Load Sensor: Locations

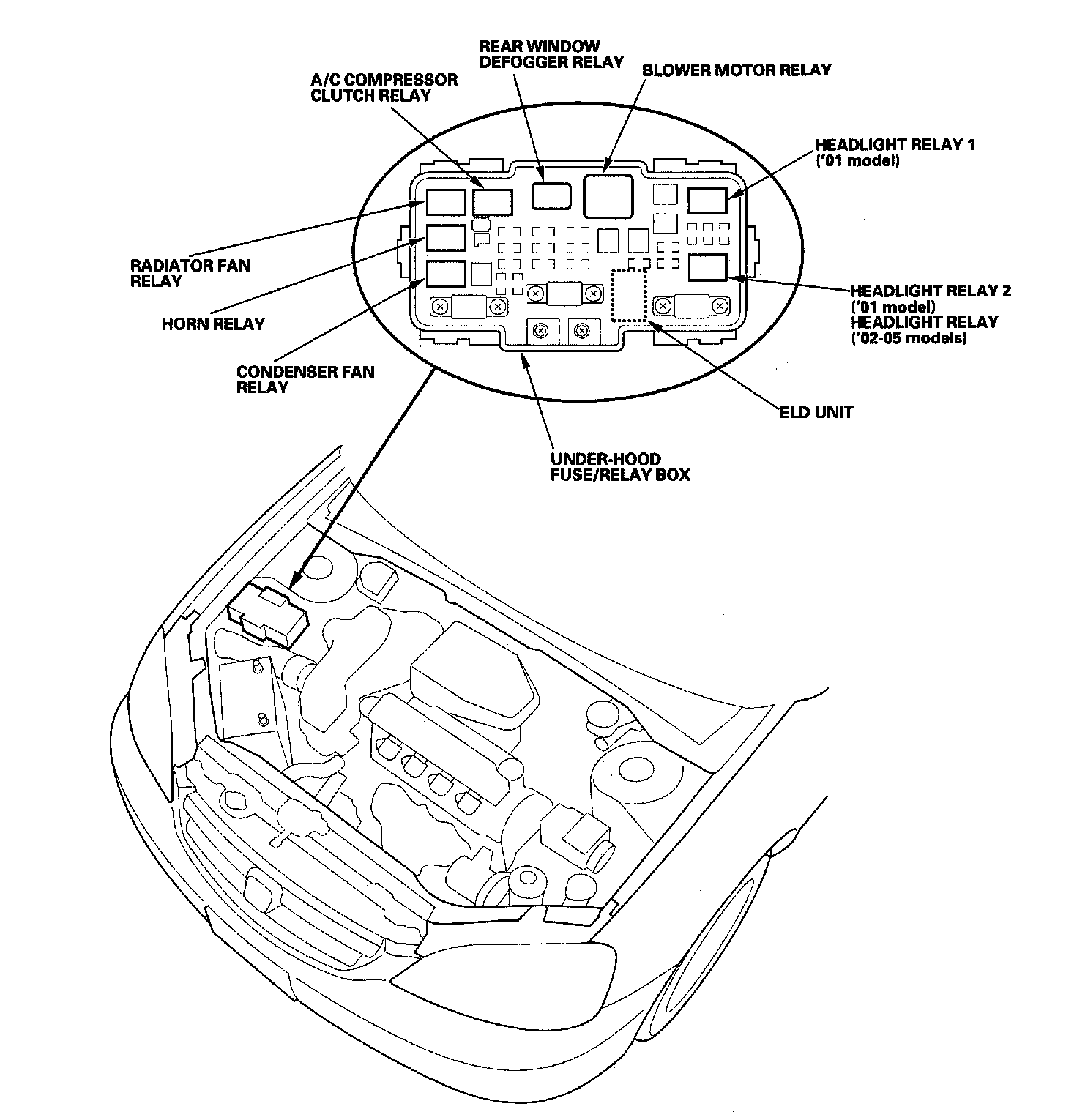

Relay And Control Unit Locations - Engine Compartment:

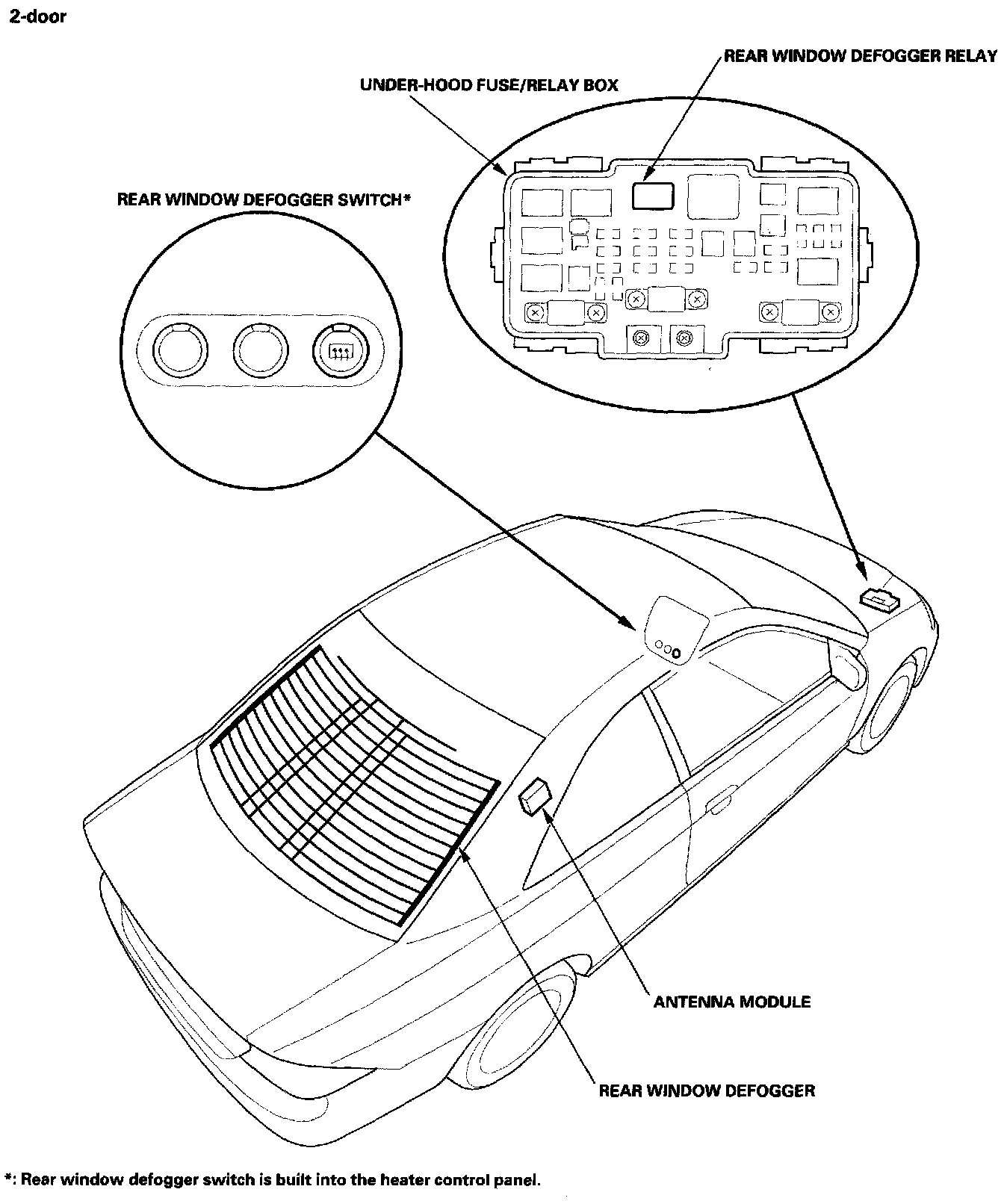

Rear Window Defogger - Component Location Index:

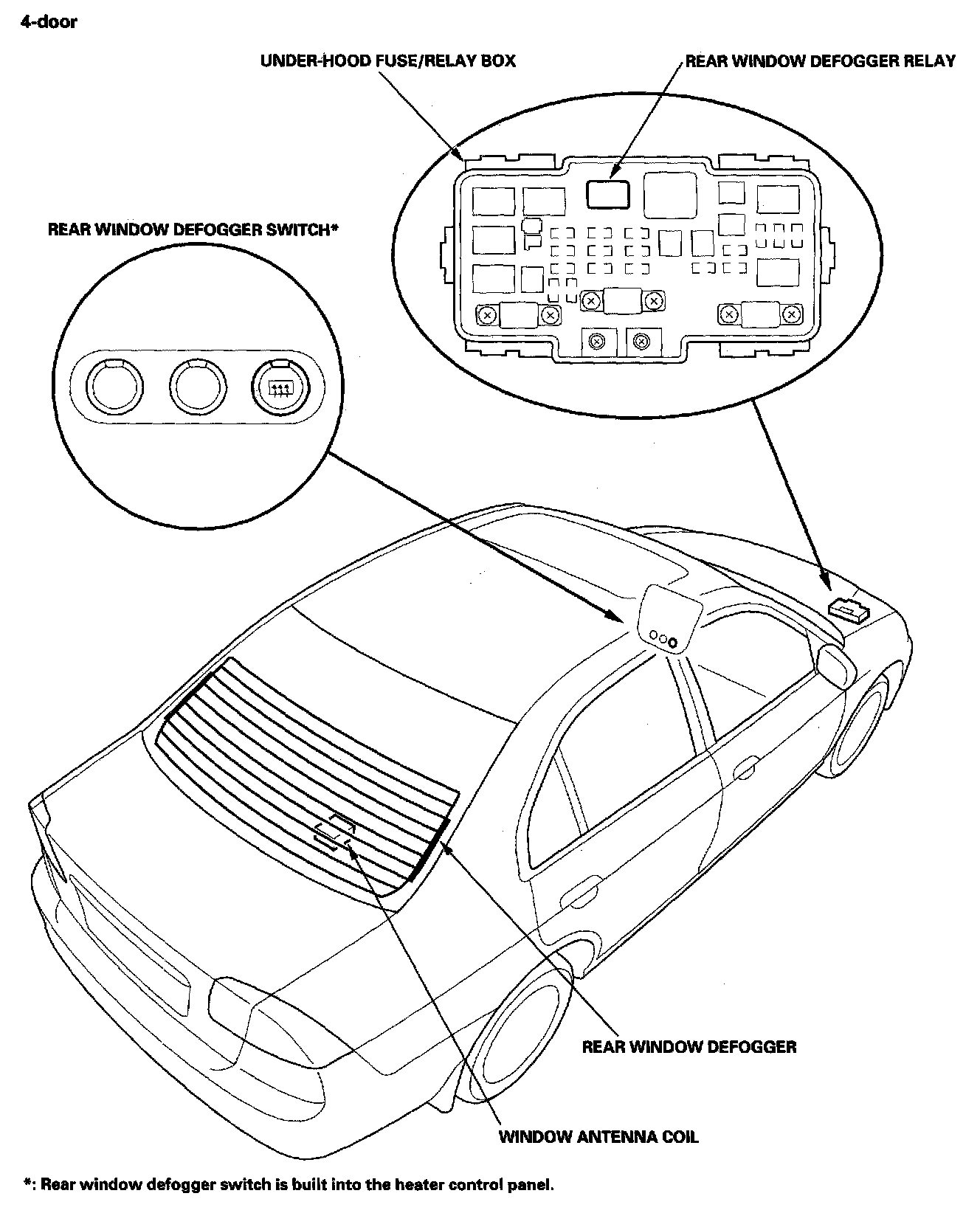

Rear Window Defogger - Component Location Index:
