Torque Specifications

CVT

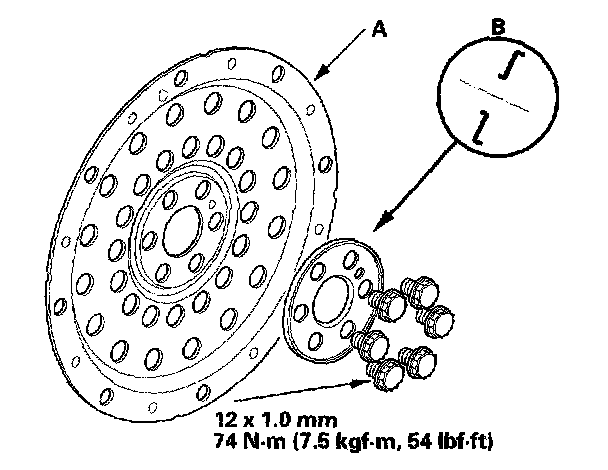

Drive Plate



Tighten the six bolts in a crisscross pattern.

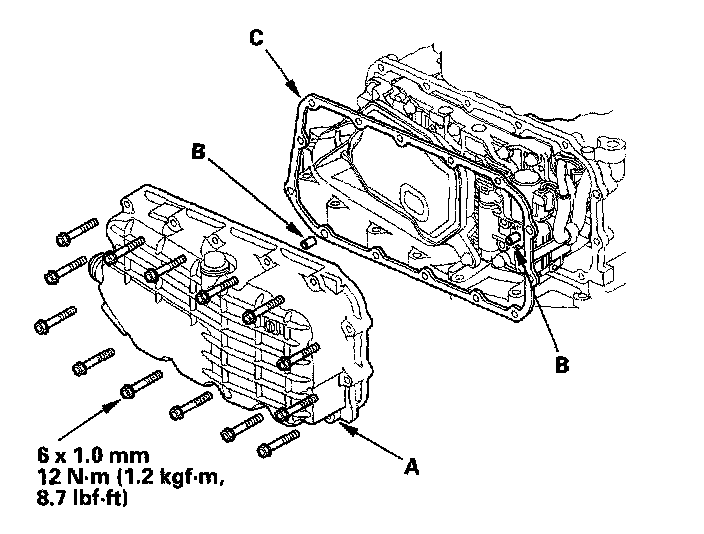

ATF Pan



ATF pan/bolts


Overhaul Specifications
Please refer to Automatic Transmission/Transaxle, Service and Repair, Procedures, Continuously Variable Transmission, Overhaul (Transmission) and Overhaul (Differential).
