Cruise Control Master Switch
Cruise Control Master Switch Test/Replacement1. Remove the driver's dashboard lower cover.

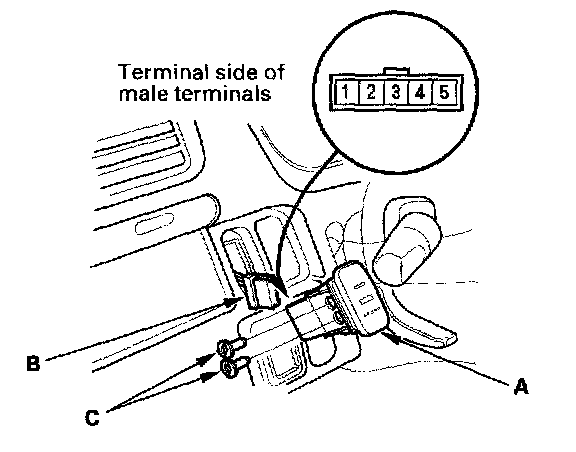

2. Release the clips of the cruise control master switch and push the cruise control master switch (A) out of the panel, then disconnect the 5P connector (B) from the cruise control master switch.

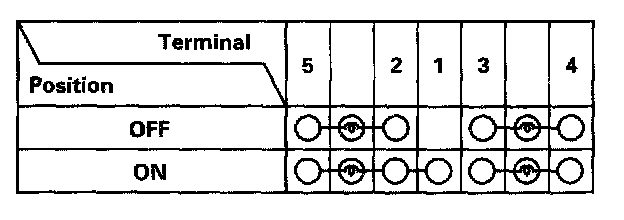

3. Check for continuity between the terminals in each switch position according to the table. If the continuity is not as specified, replace illumination bulbs (C) or the switch.
