Auxiliary Power Outlet: Locations

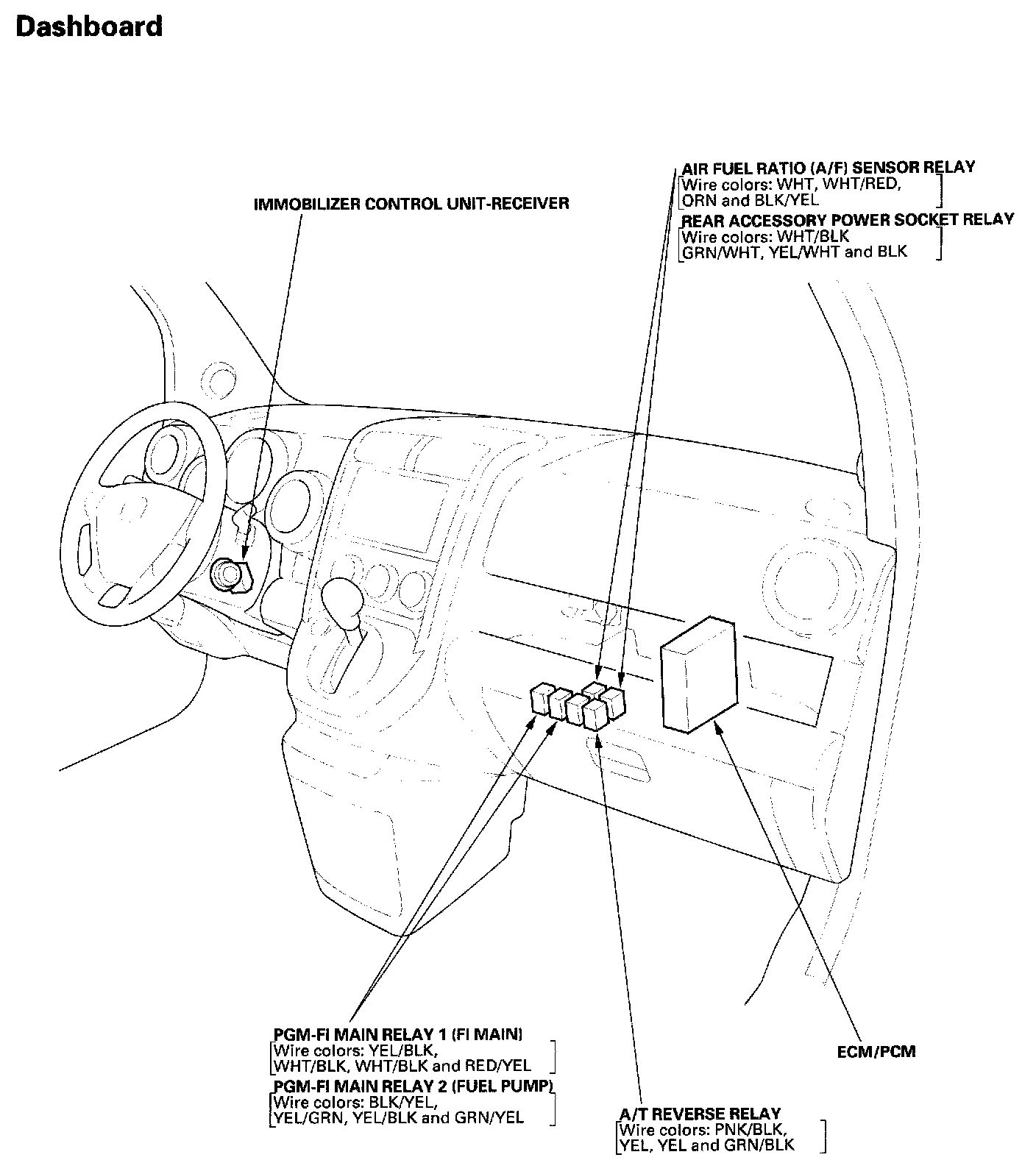

Relay And Control Unit Locations - Dashboard:

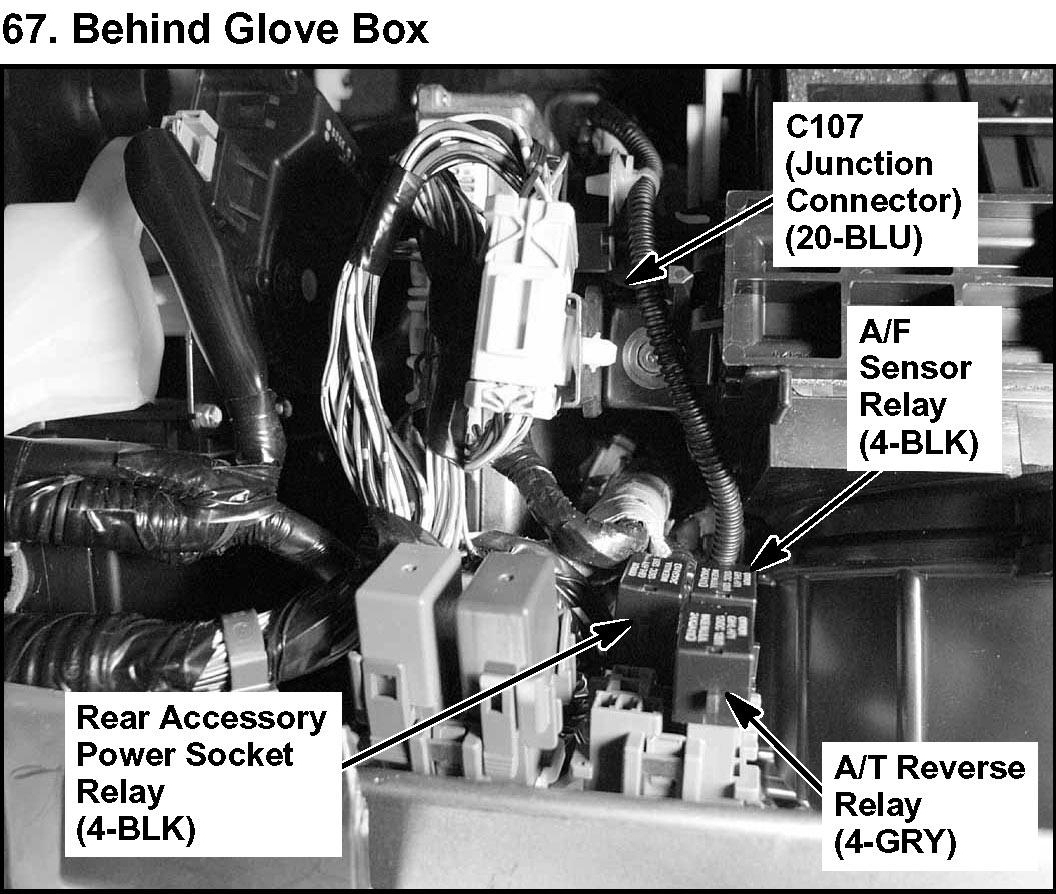

67. Behind Glove Box:
