Oil Filter Feed Pipe Replacement

Remove the oil filter (see ENGINE OIL FILTER REPLACEMENT ).
Remove the oil filter feed pipe.

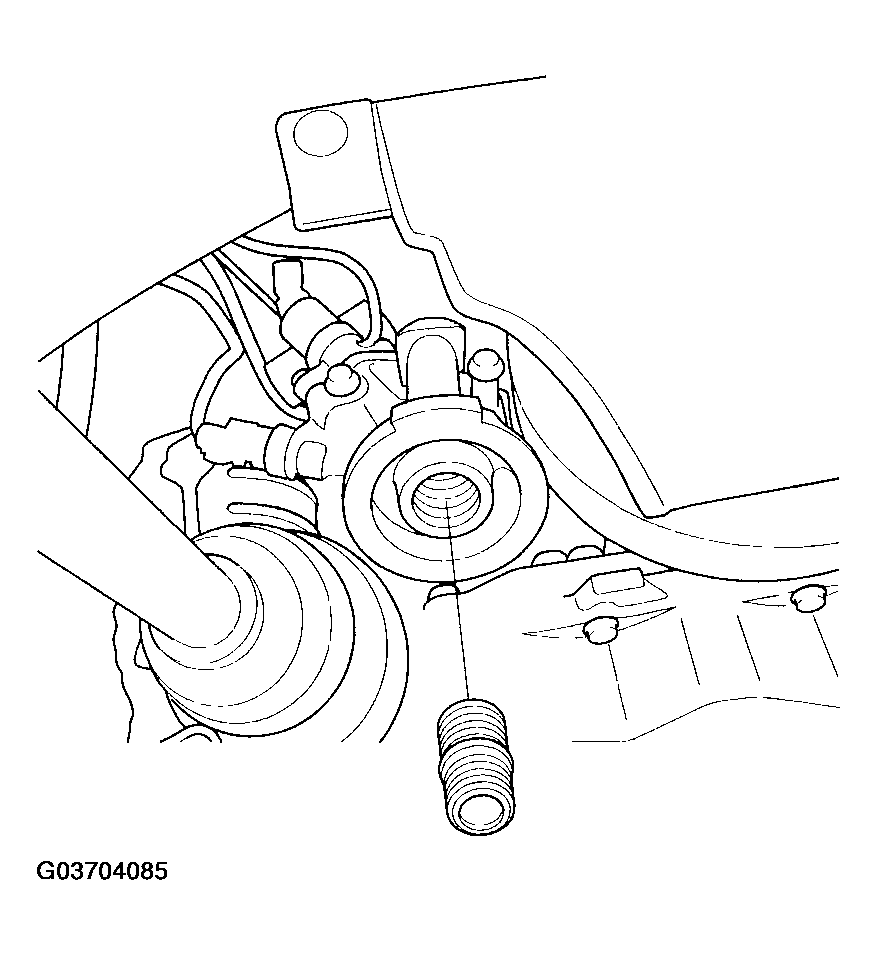

Fig 1: Removing Oil Filter Feed Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install two 20 x 1.5 mm nuts (A) onto the new oil filter feed pipe, and hold one nut with a wrench, then tighten the other nut.

Fig 2: Installing Nuts Onto Oil Filter Feed Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the oil filter feed pipe to 49 N-m (5.0 kgf-m, 36 lbf-ft), then remove the nuts from the oil filter feed pipe.
Install the oil filter (see ENGINE OIL FILTER REPLACEMENT ).
