Audio Unit Connector for Inputs and Outputs: Notes

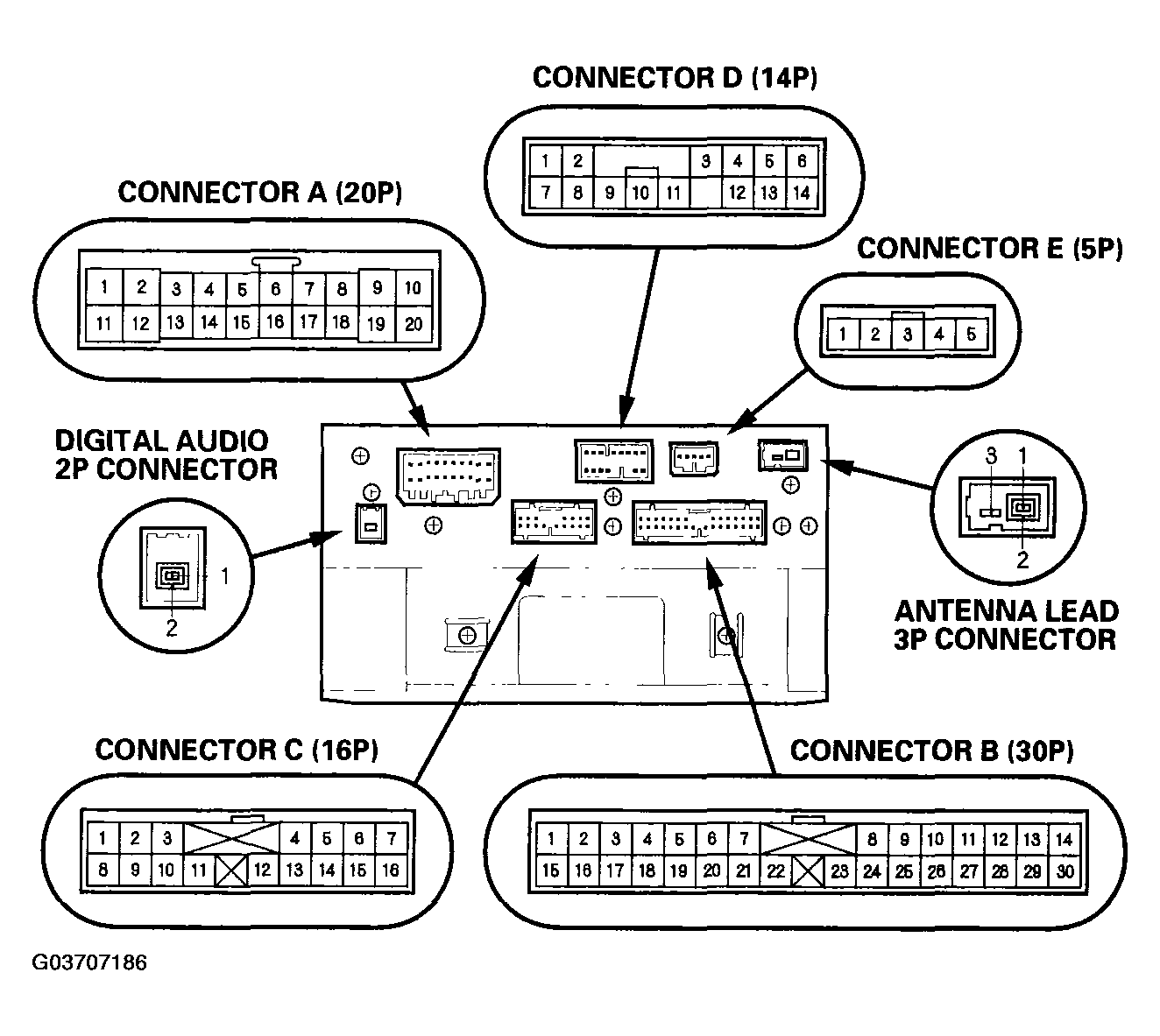

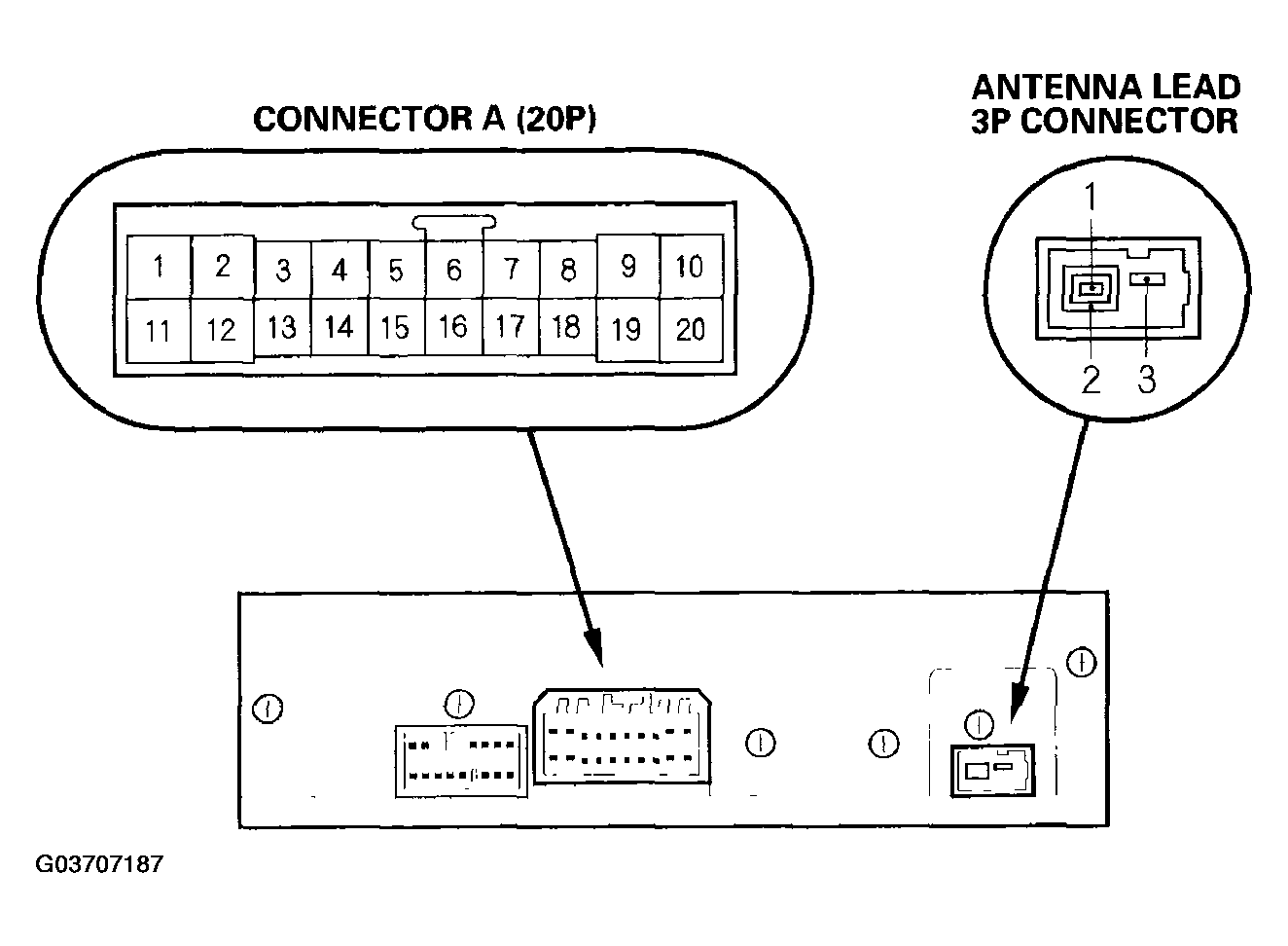

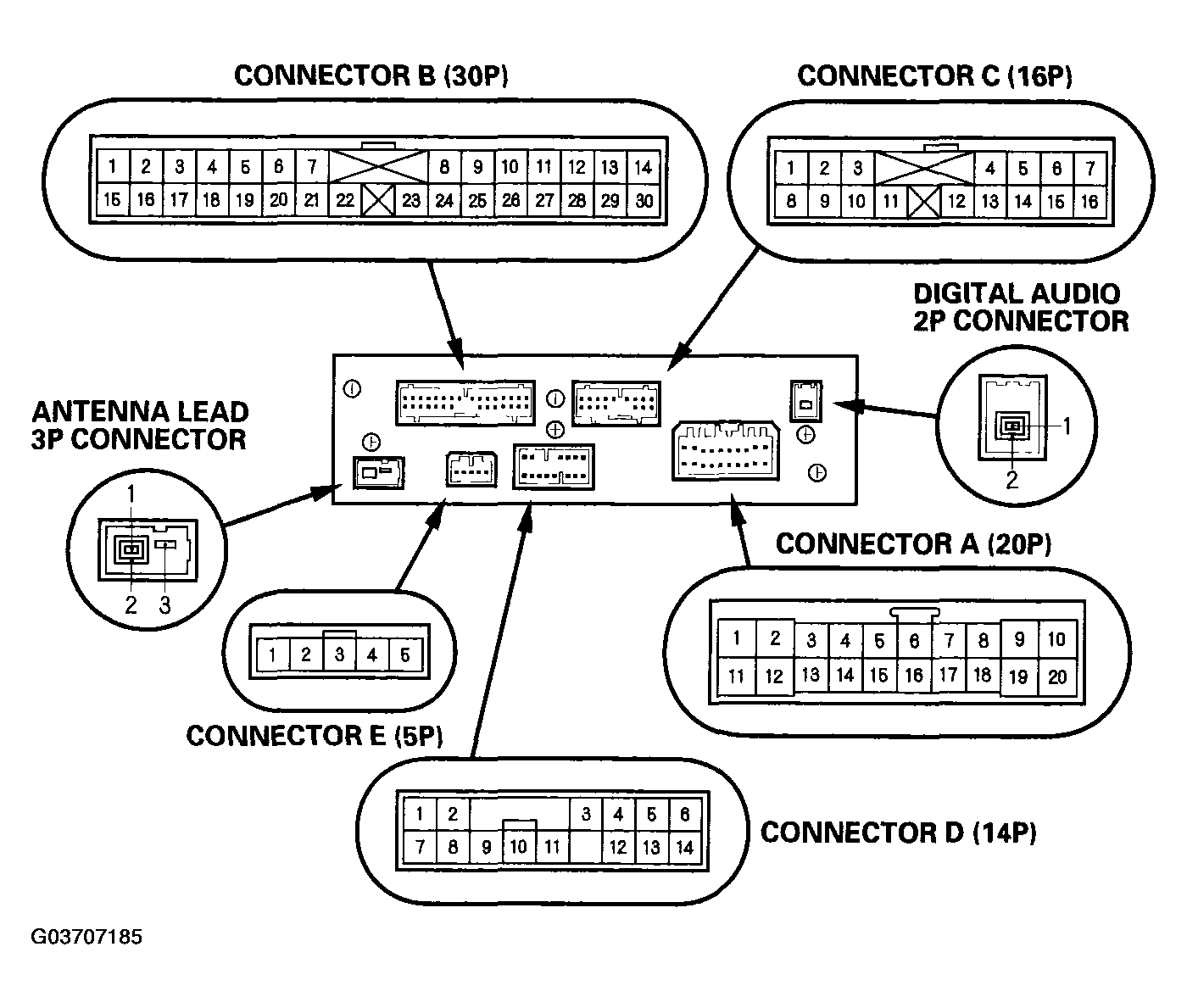

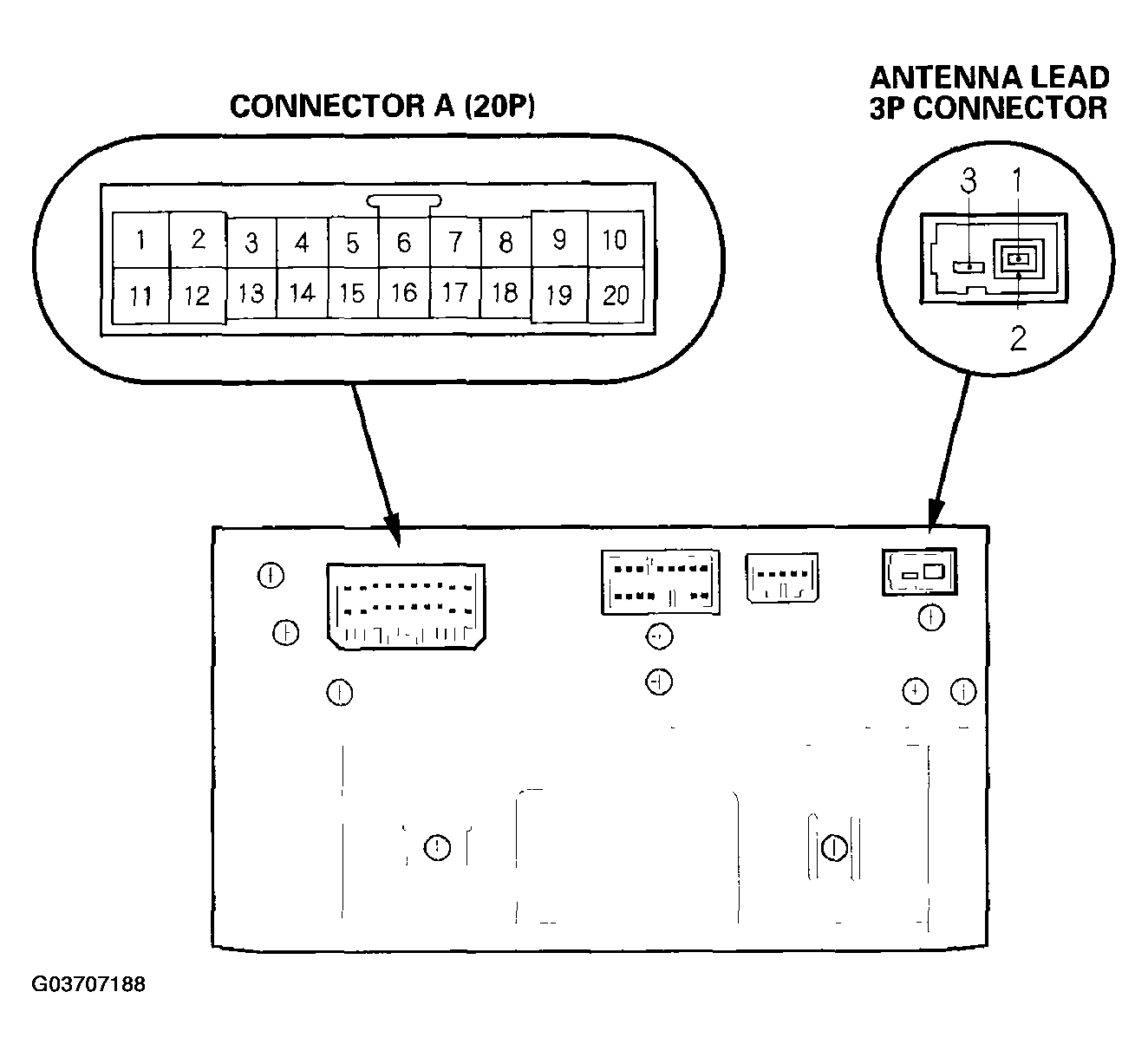

When replacing an audio unit connector, match the wires to the cavities listed in the table shown in Figure , with navigation/with entertainment system & Figure , without navigation/with rear entertainment system.
