A/C Control Panel Inputs and Outputs

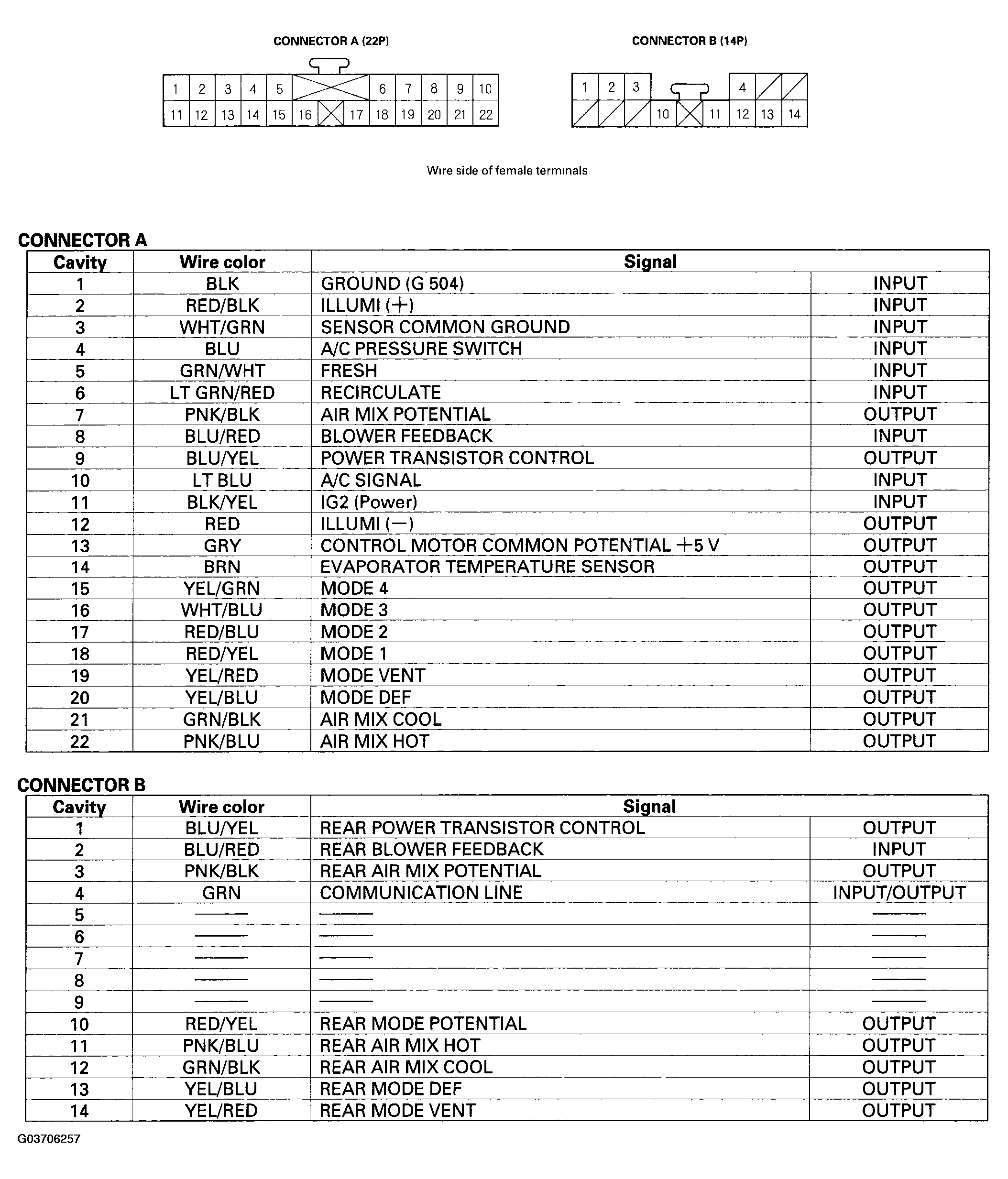

Fig 1: Identifying Control Panel Inputs And Outputs Chart
G03706257Courtesy of AMERICAN HONDA MOTOR CO., INC.
