Front Passenger's

  1. Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the screw and disconnect the 10P connector (A) from the power window switch (B), then remove the switch assembly from the door panel.

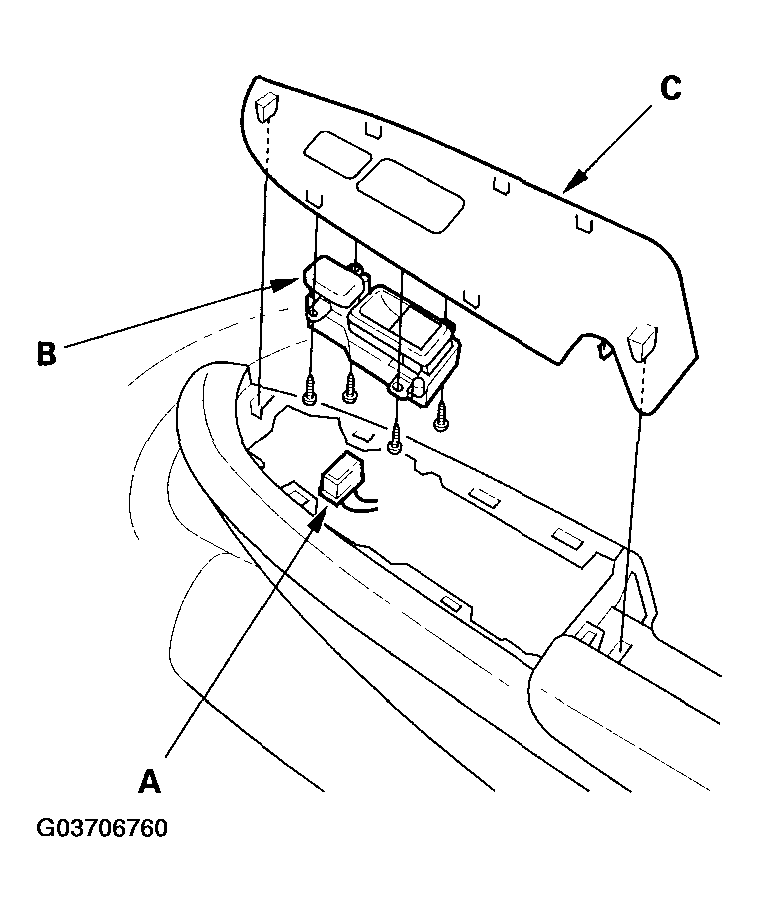

    Fig 1: Disconnecting 10P Connector From Power Window Switch (Front Passenger's)
    G03706760Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four mounting screws, then remove the power window switch from the switch panel (C).
  4. Swap the window switch with another known-good switch and test. If the original window switch is faulty; replace it.
  5. Install in the reverse order of removal.
