Sensor Cluster Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use an impact wrench.
  1. Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the sensor cluster connector (A).

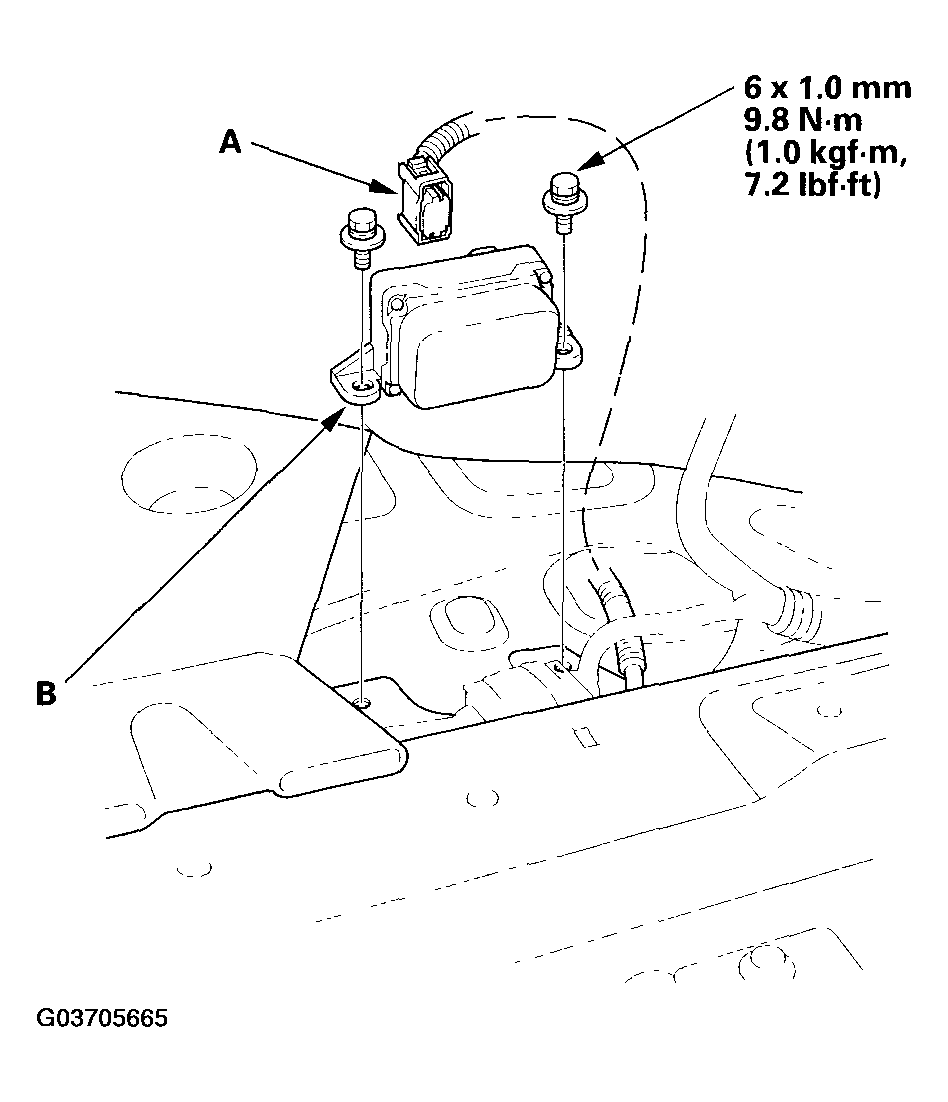

    Fig 1: Disconnecting Sensor Cluster Connector
    G03705665Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the sensor cluster (B).
  4. Install in the reverse order of removal.
