Pressure Reducing Mode

VSA NO valve closed, VSA NC valve closed, inlet valve closed, outlet valve open, pump motor ON.

Caliper fluid flows through the outlet valve to the reservoir.

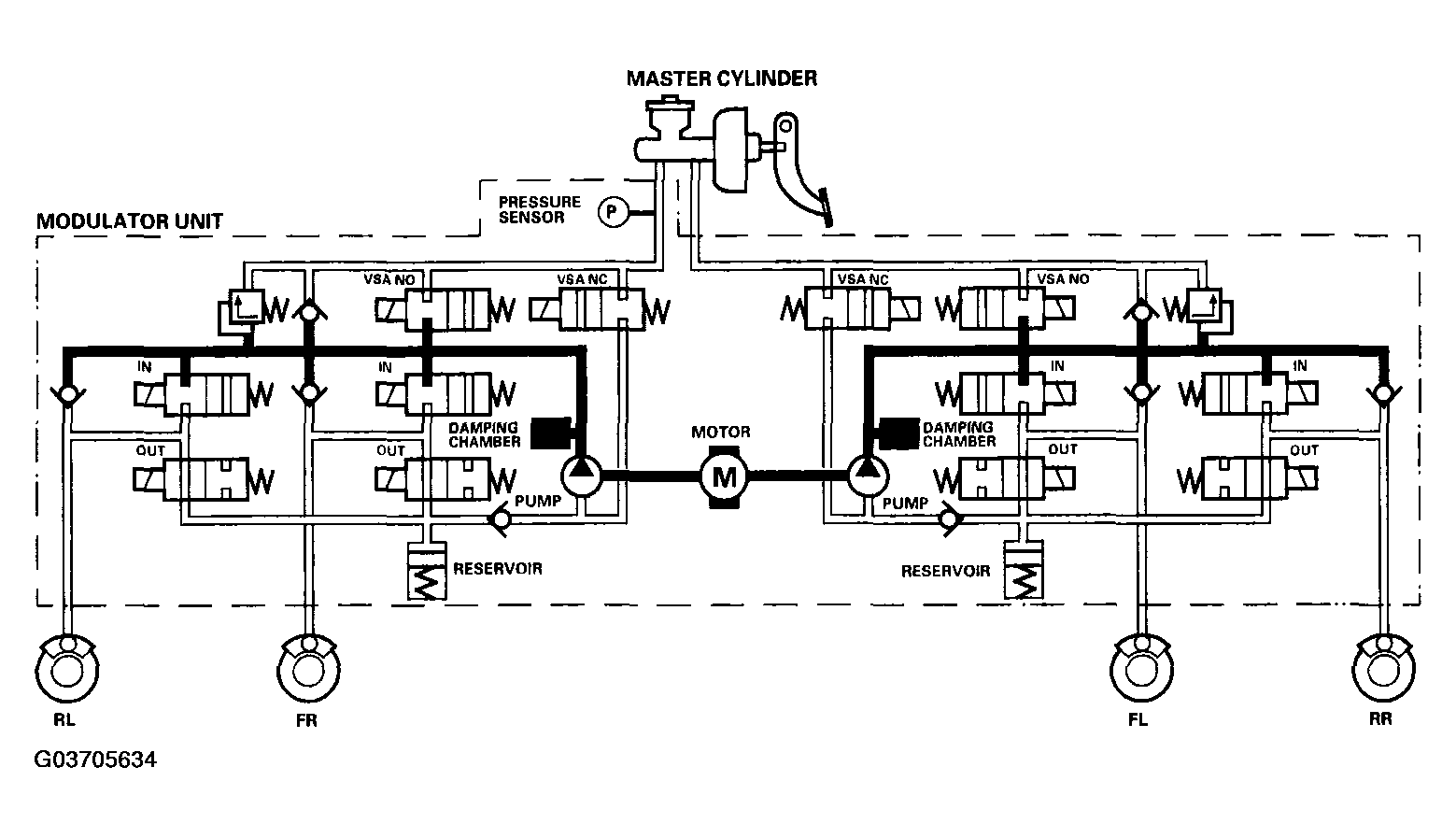

Fig 1: VSA Control Of Pressure Reducing Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
