Pressure Retaining Mode

VSA NO valve closed, VSA NC valve closed, inlet valve closed, outlet valve closed, pump motor ON.

Front and rear caliper fluid is retained by the inlet valve and outlet valve.

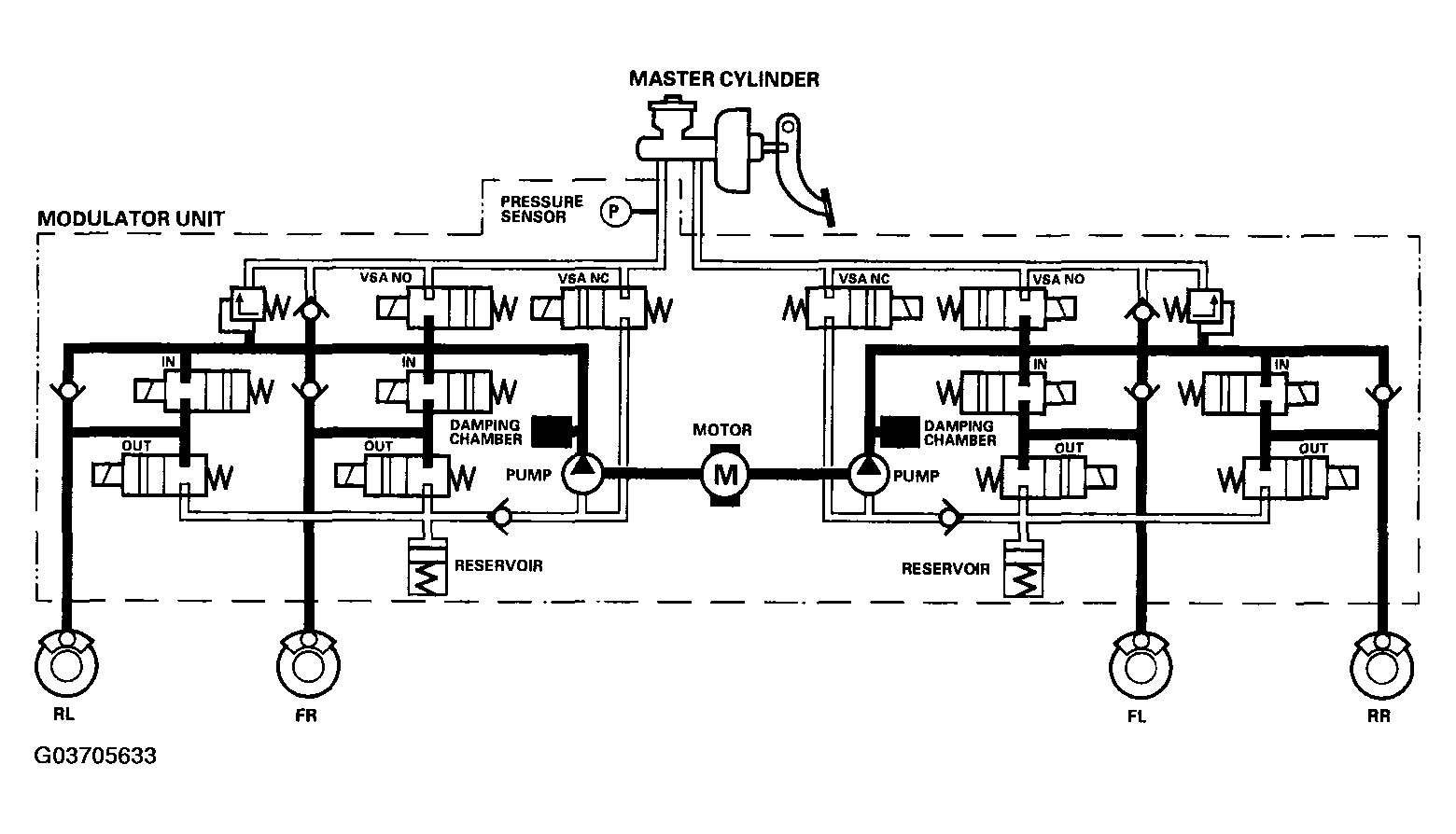

Fig 1: VSA Control Of Pressure Retaining Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
