Wheel Sensor Replacement

NOTE: Install the sensor carefully to avoid twisting the wires.

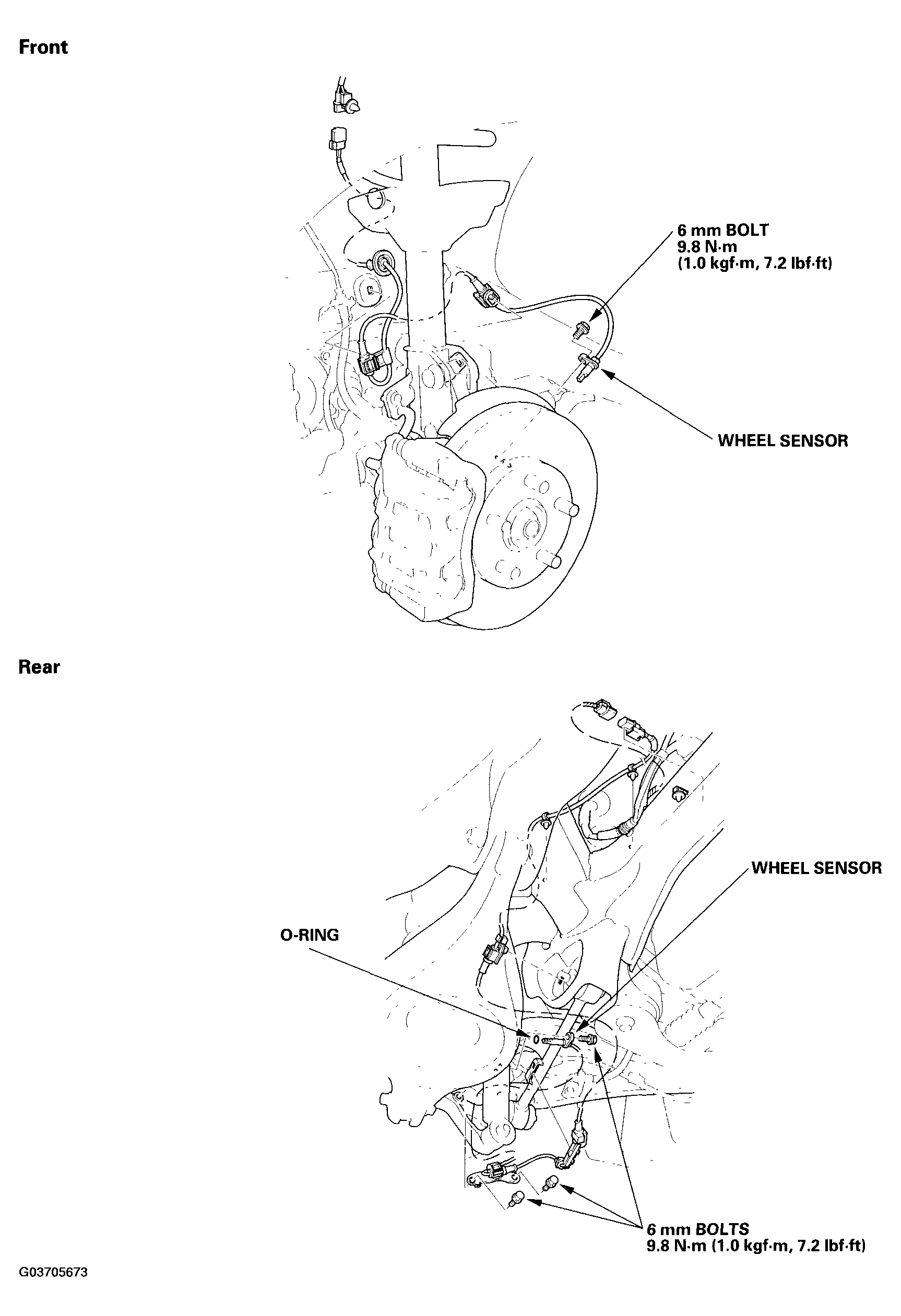

Fig 1: Replacing Wheel Sensor
G03705673Courtesy of AMERICAN HONDA MOTOR CO., INC.
