PCM Inputs and Outputs at Connector A (square) (44P)

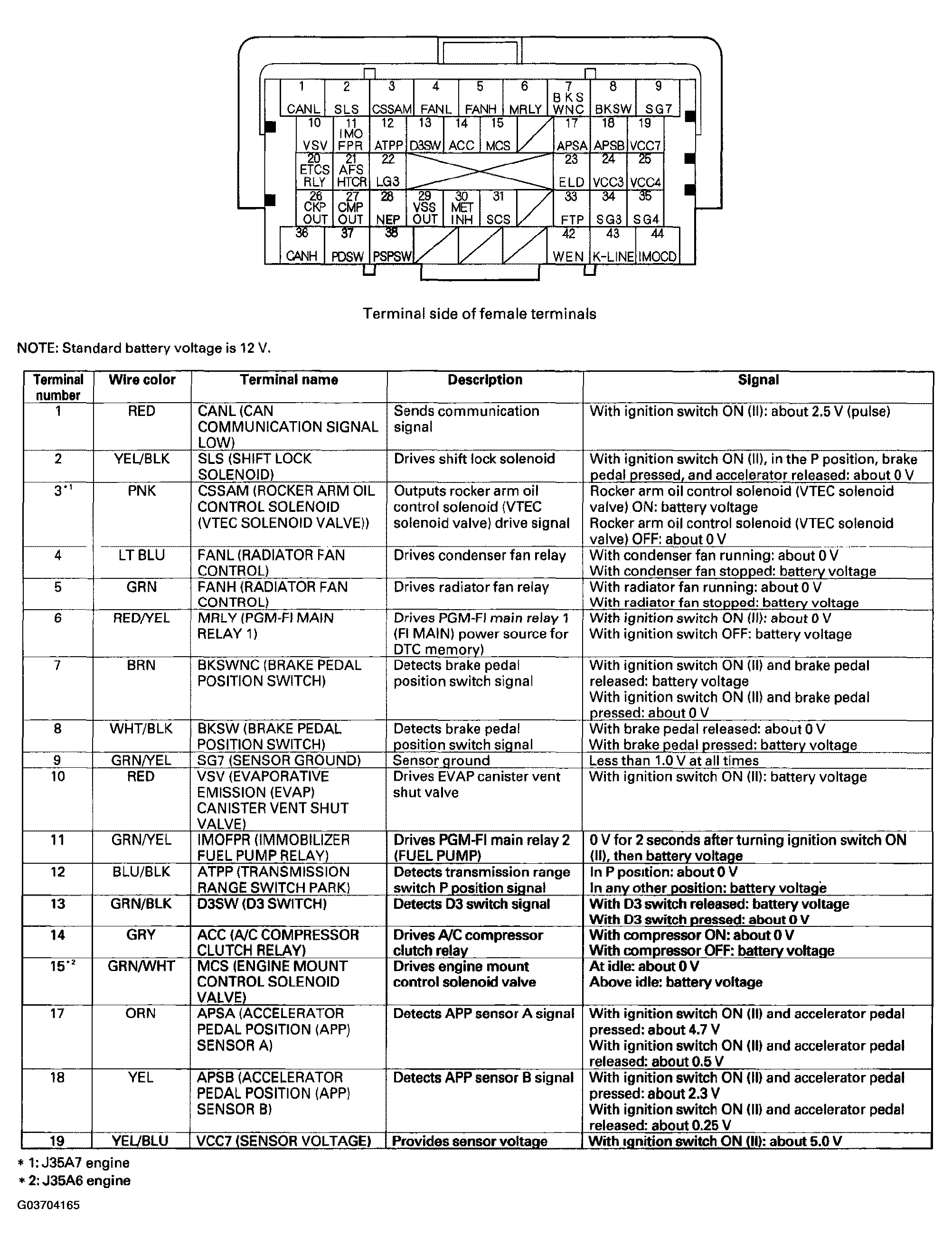

Fig 1: Identifying PCM Inputs and Outputs at Connector A (square) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

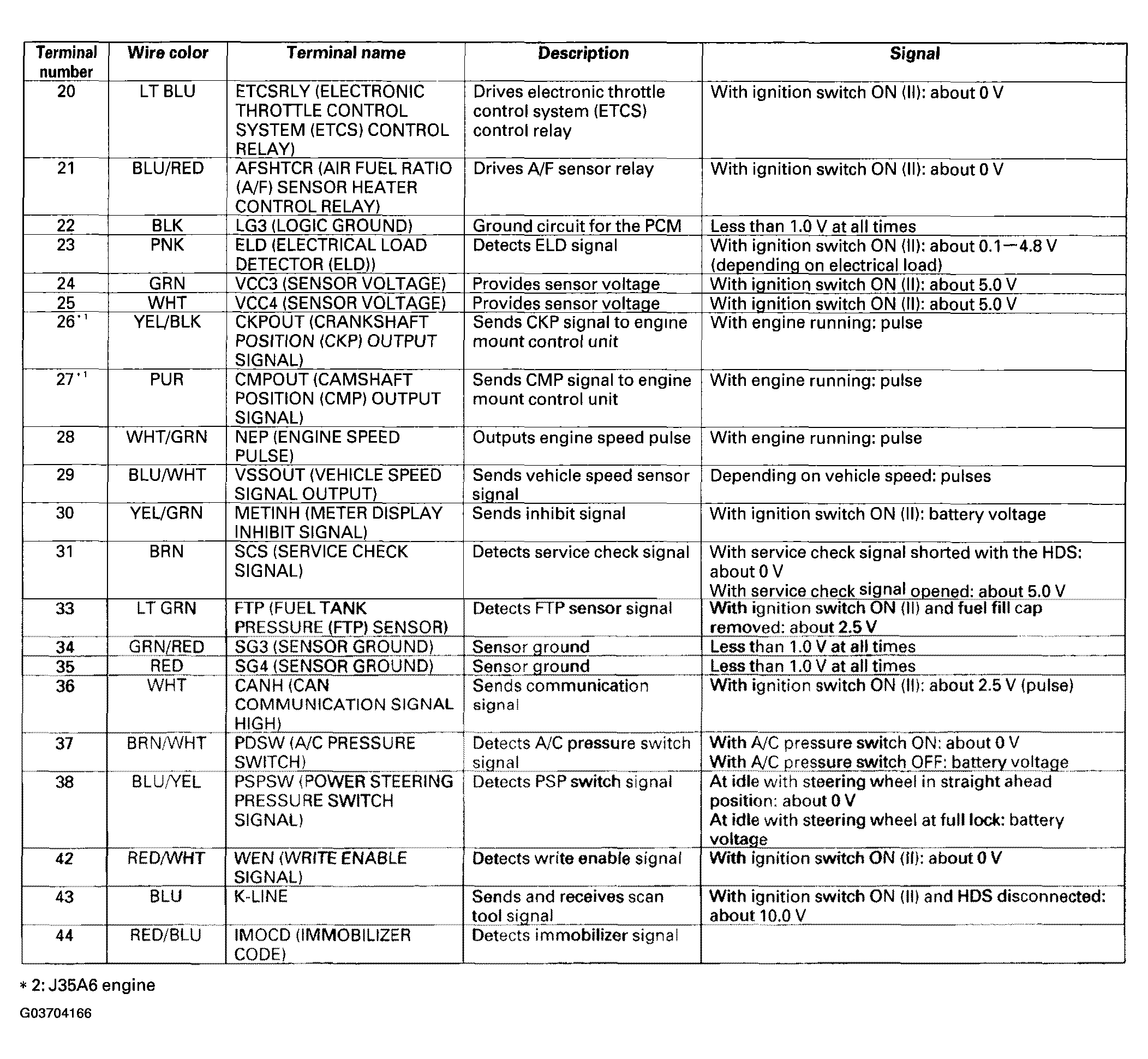

Fig 2: Identifying PCM Inputs and Outputs at Connector A (square) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
