EOP Sensor Removal/Installation

  1. Remove the intake manifold cover (see step 1 in REMOVAL ).
  2. Remove the EOP sensor 3P connector (A).

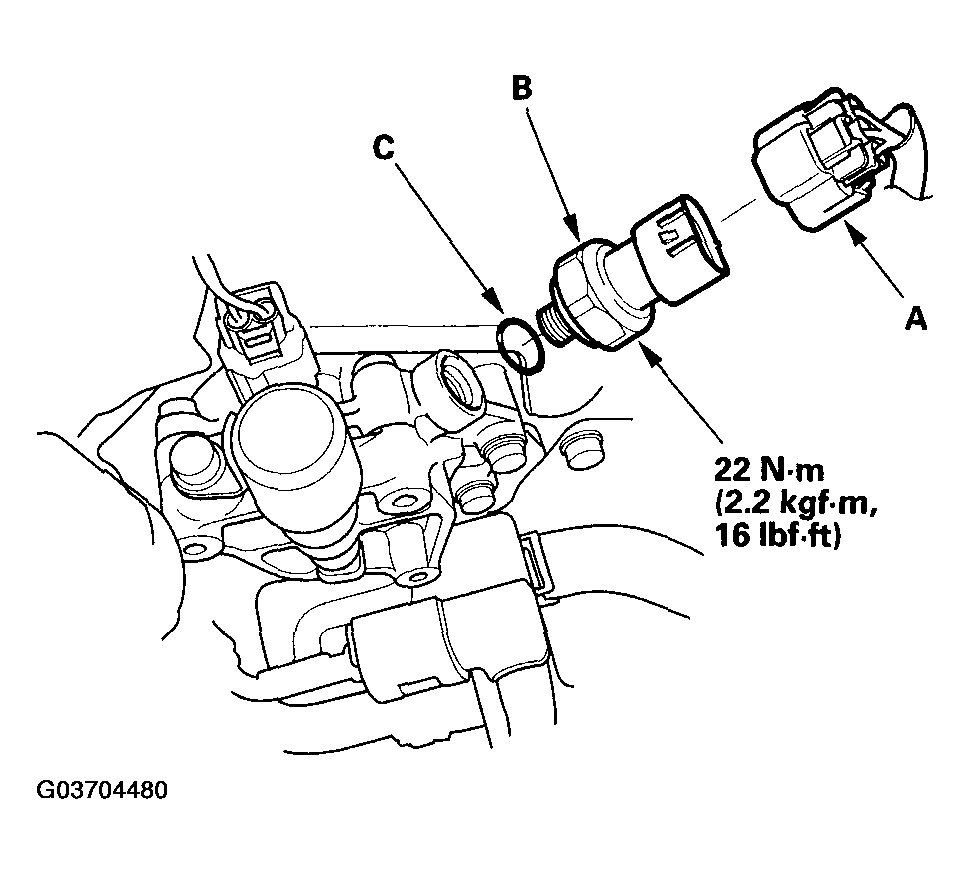

    Fig 1: Removing EOP Sensor 3P Connector
    G03704480Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EOP sensor (B).
  4. Install the EOP sensor in the reverse order of removal with a new O-ring (C).
