Key Interlock Solenoid Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

1. Remove the driver's dashboard lower cover (see DRIVER'S LOWER DASHBOARD SWITCH PANEL REMOVAL ) and lower steering column cover.
2. Disconnect steering lock assembly connector.
3. Insert the ignition key in the key cylinder, then turn the ignition key to ACC (I).
4. Connect the battery positive terminal to steering lock assembly connector terminal No. 4, and connect the battery negative terminal to No. 3 terminal. Make sure that the ignition key cannot be turned to the LOCK (0) position. Disconnect the battery terminals, and make sure that the key can be turned to the LOCK (0) position and removed from the cylinder.

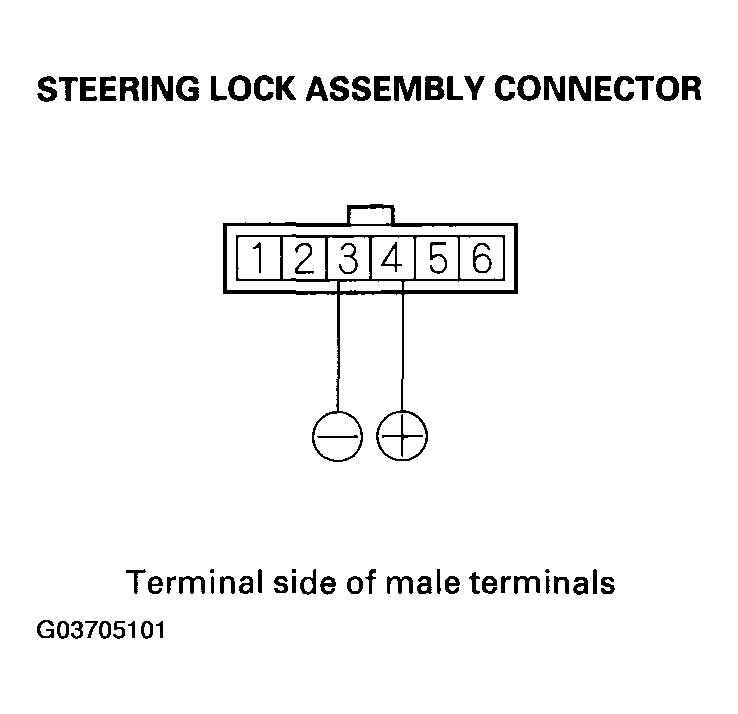

   Fig 1: Connecting Battery Positive Terminal To Steering Lock Connector Terminal 4, And Connect Battery Negative Terminal To 3 Terminal

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the key interlock solenoid does not work correctly, replace the ignition key cylinder/steering lock assembly (see STEERING LOCK REPLACEMENT ).
