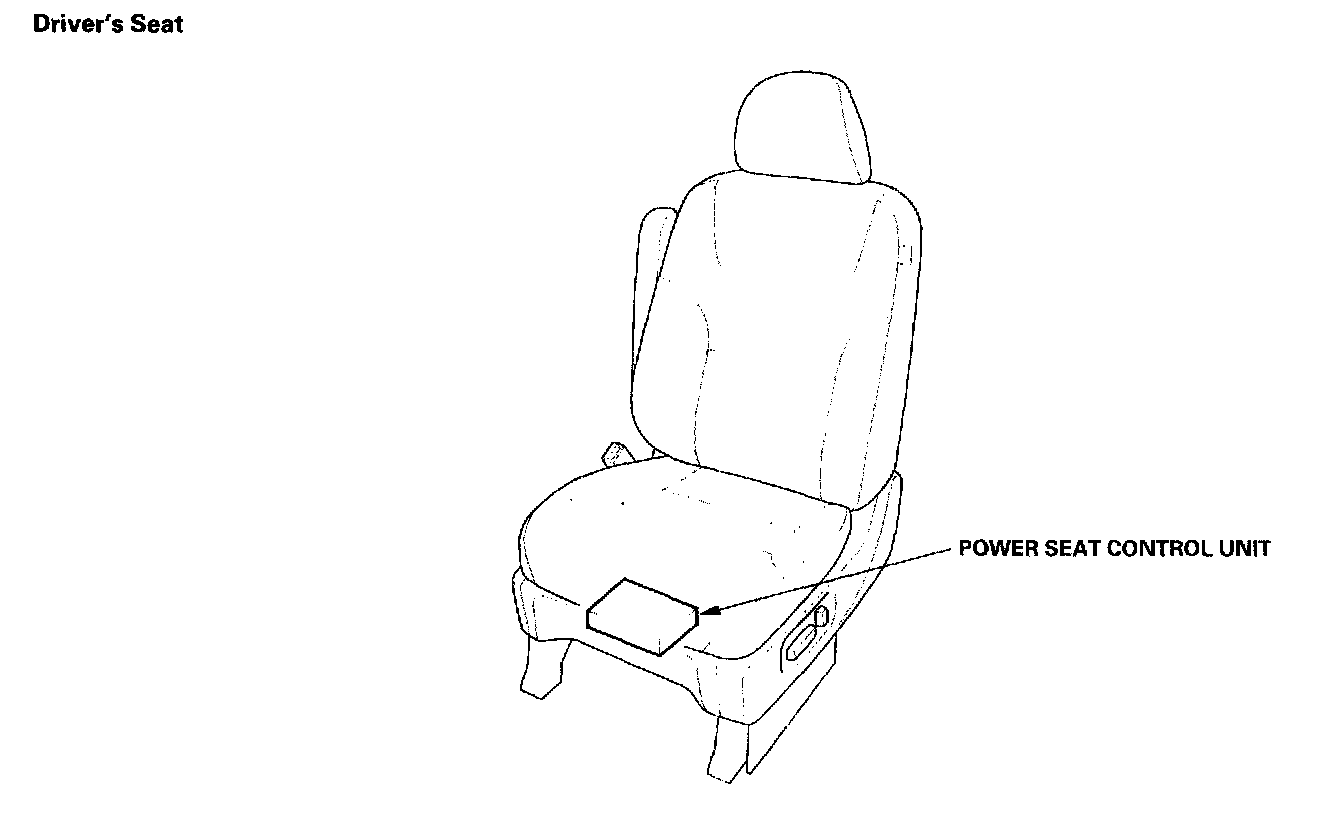

Power Seat Control Module: Locations

Relay And Control Unit Locations - Door And Seat:

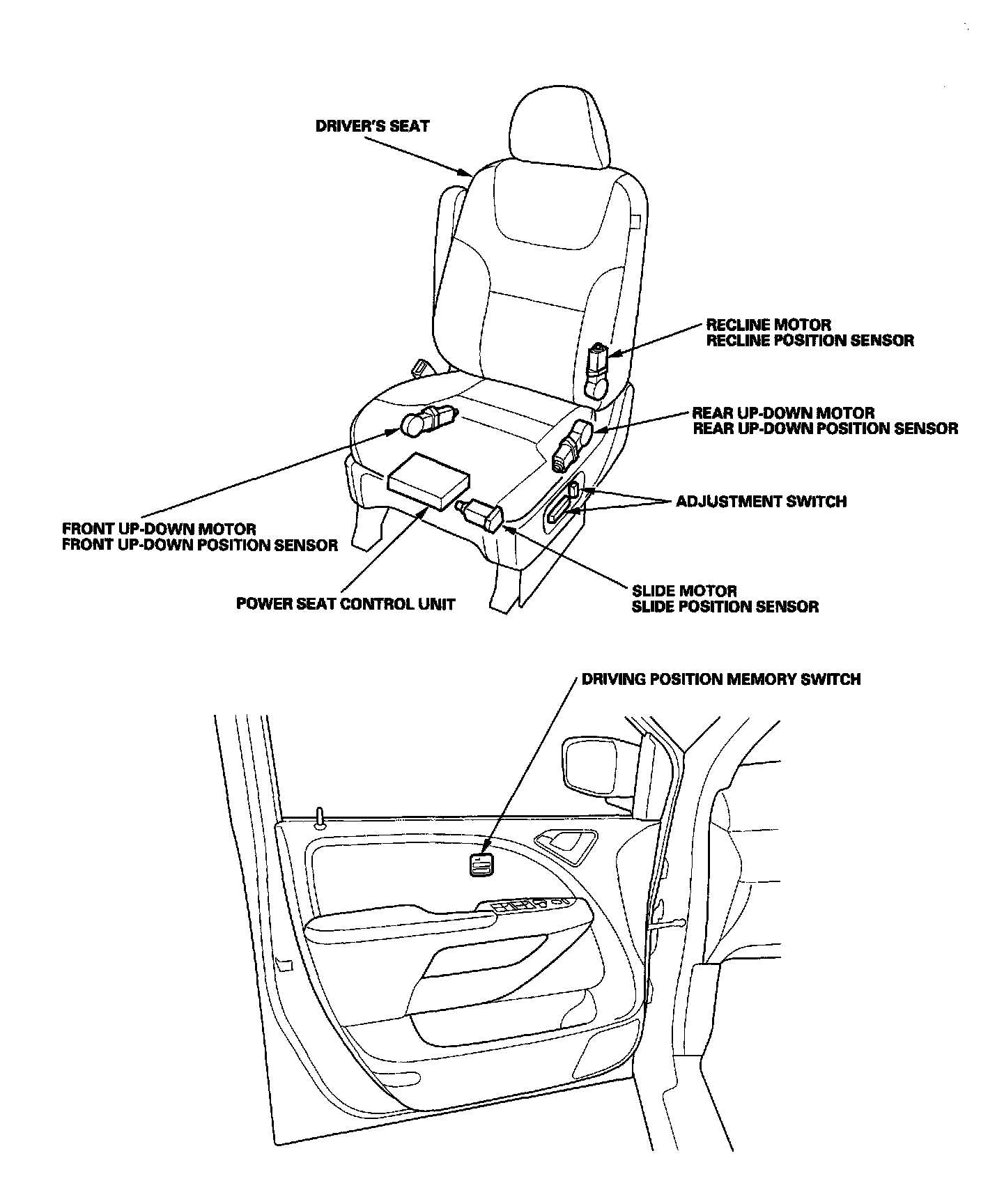

Driving Position Memory System (DPMS) - Component Location Index:

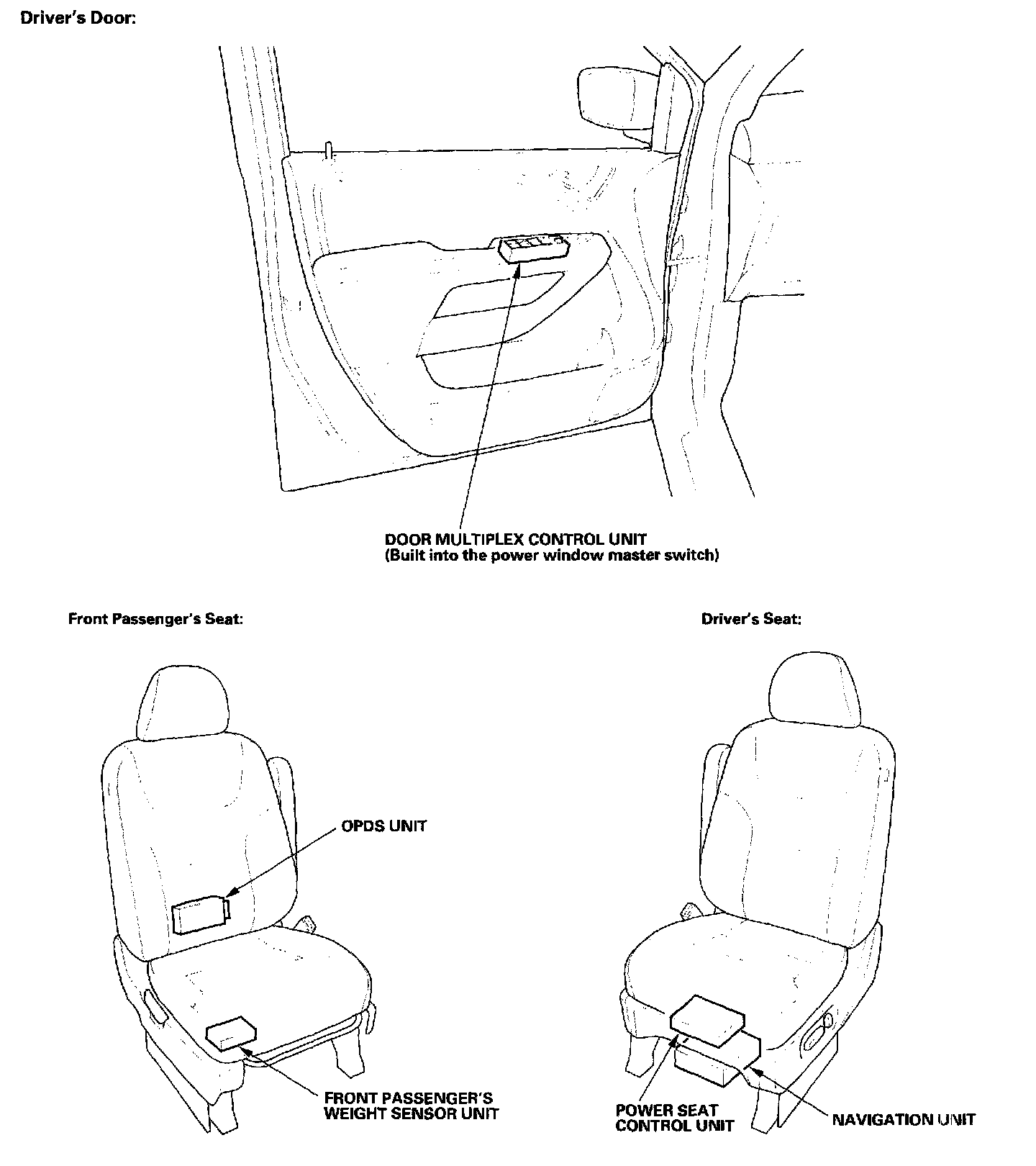

Multiplex Integrated Control Systems(MICS) - Component Location Index:

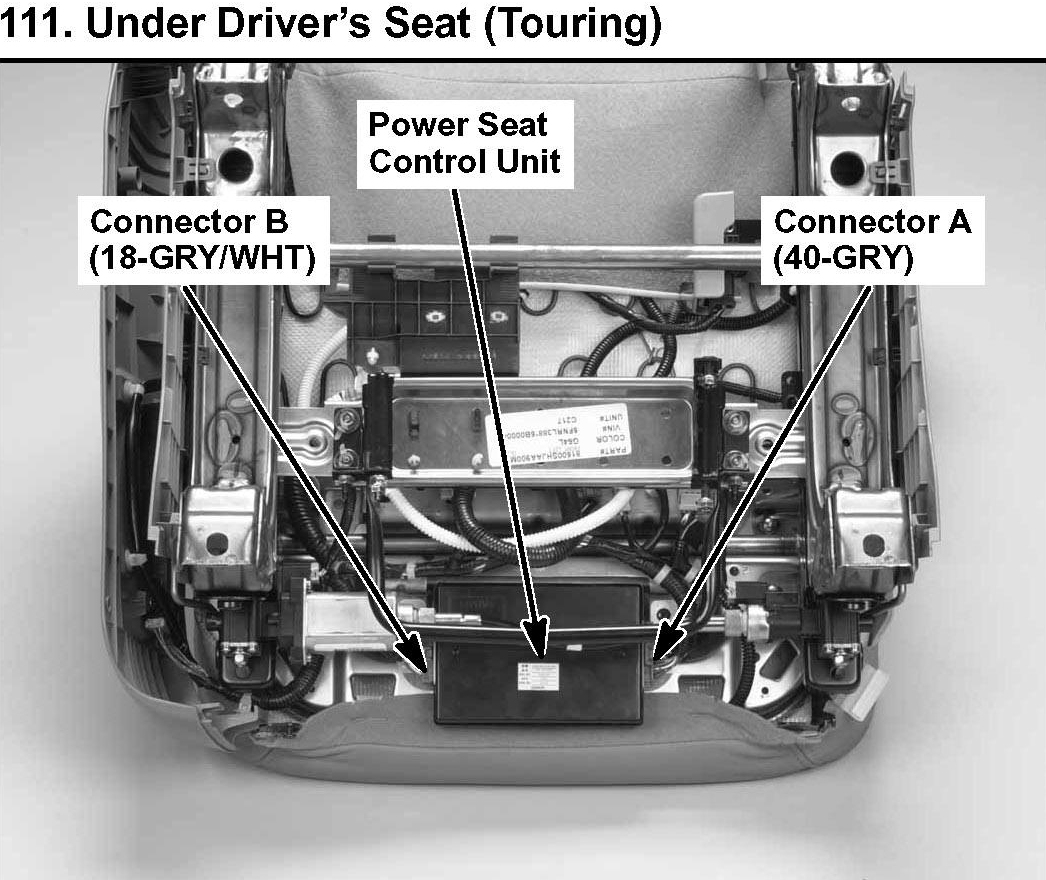

111. Under Driver's Seat (Touring):
