Map Light

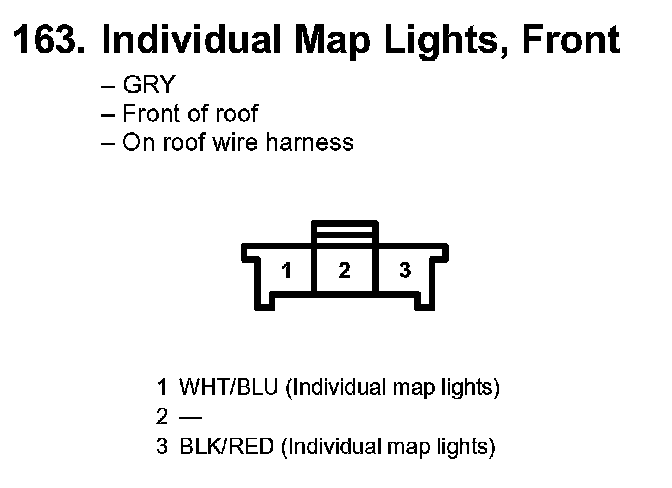

163. Individual Map Lights, Front:

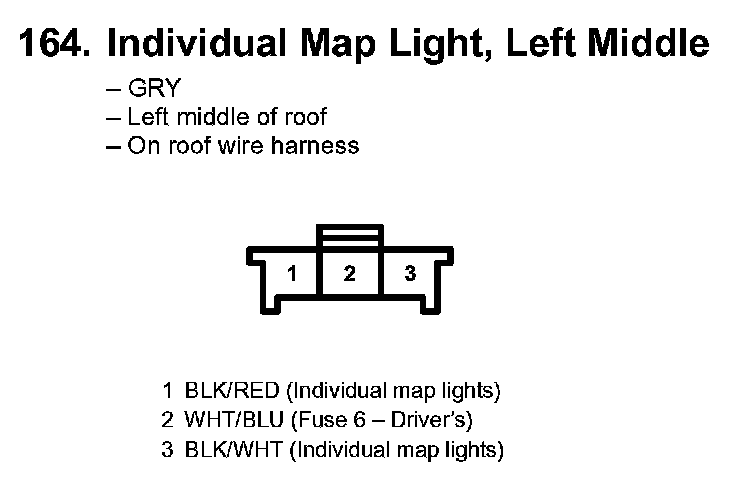

164. Individual Map Light, Left Middle:

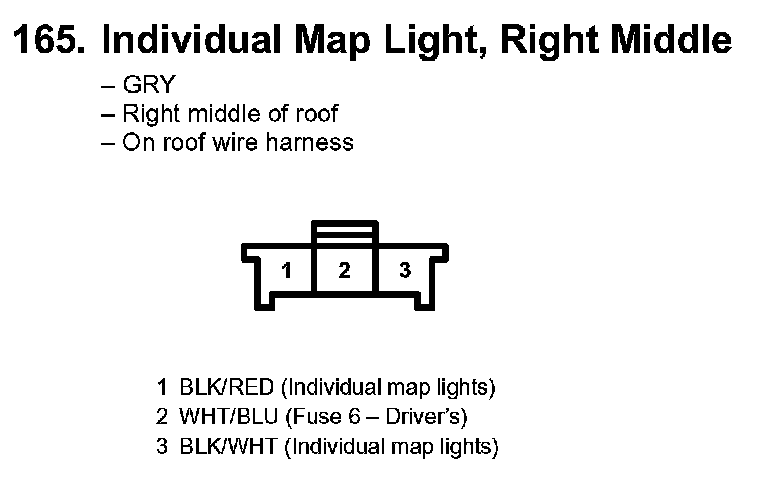

165. Individual Map Light, Right Middle:

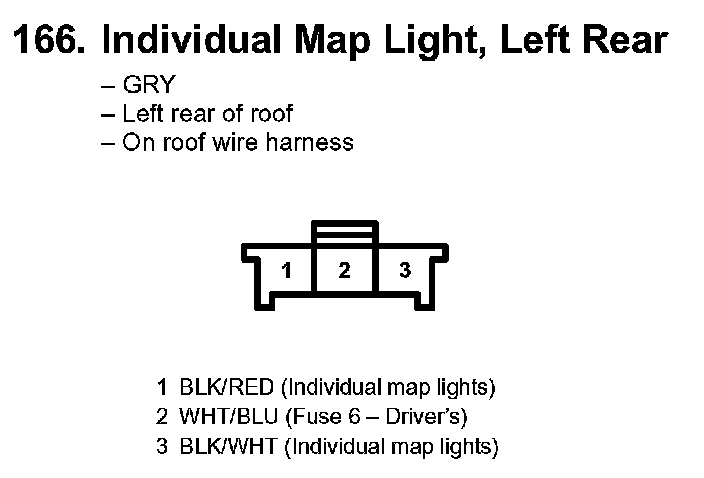

166. Individual Map Light, Left Rear:

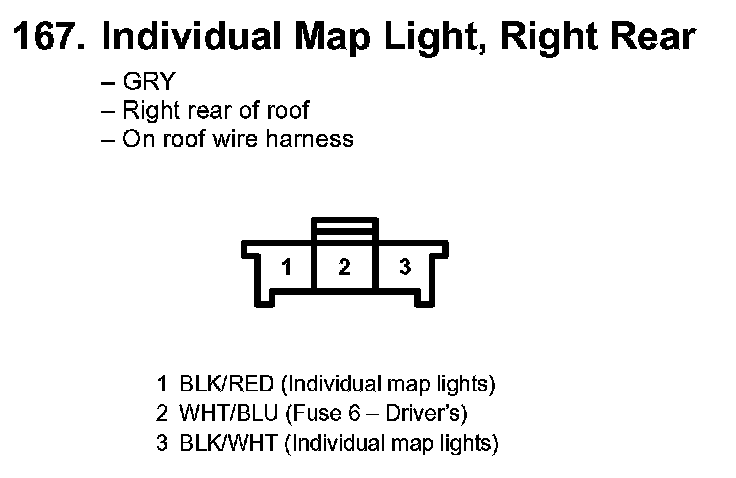

167. Individual Map Light, Right Rear:
