Multiple Junction Connector

290. C405 (Junction Connector):



291. C502 (Junction Connector) (LX):

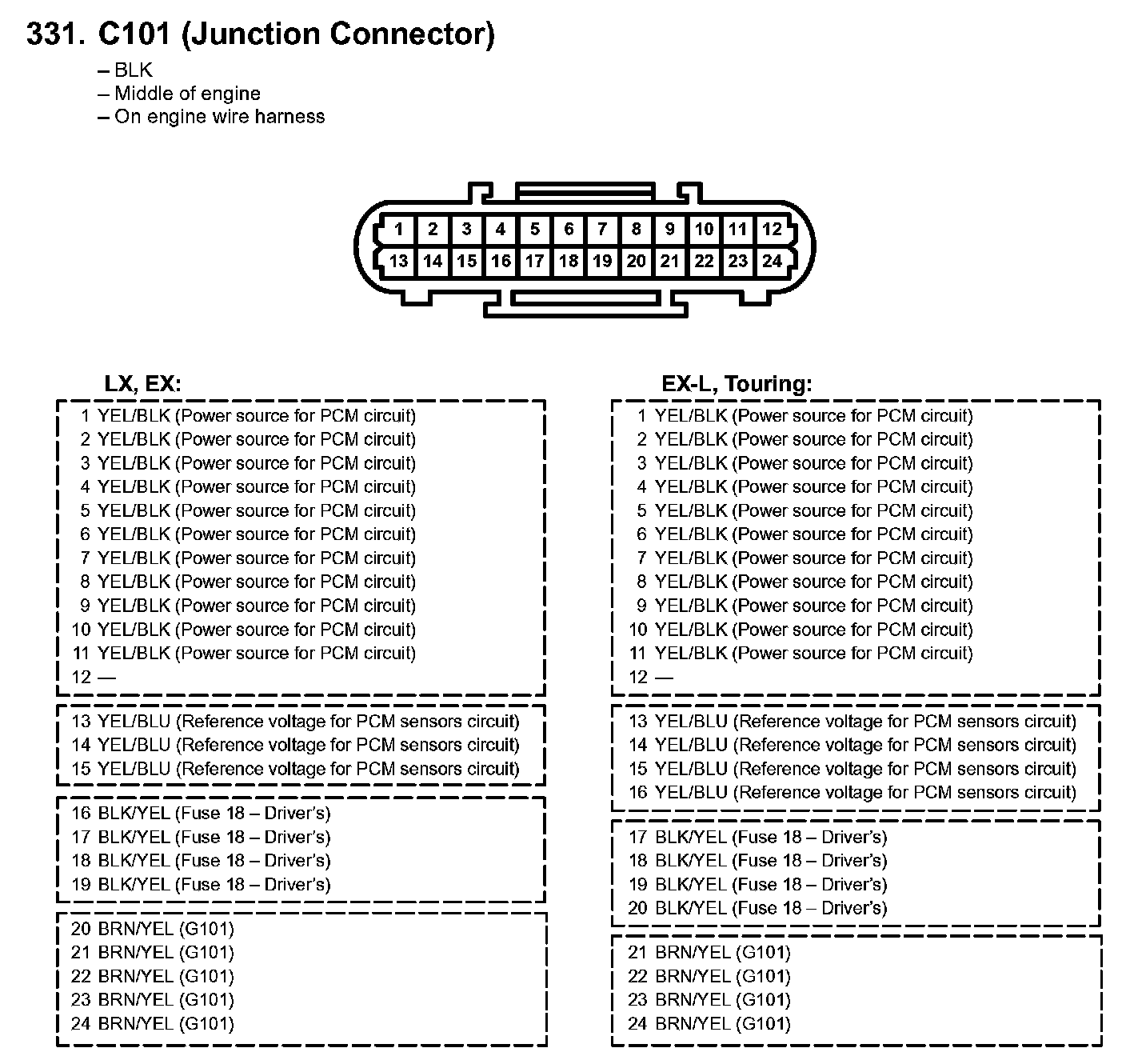

331. C101 (Junction Connector):

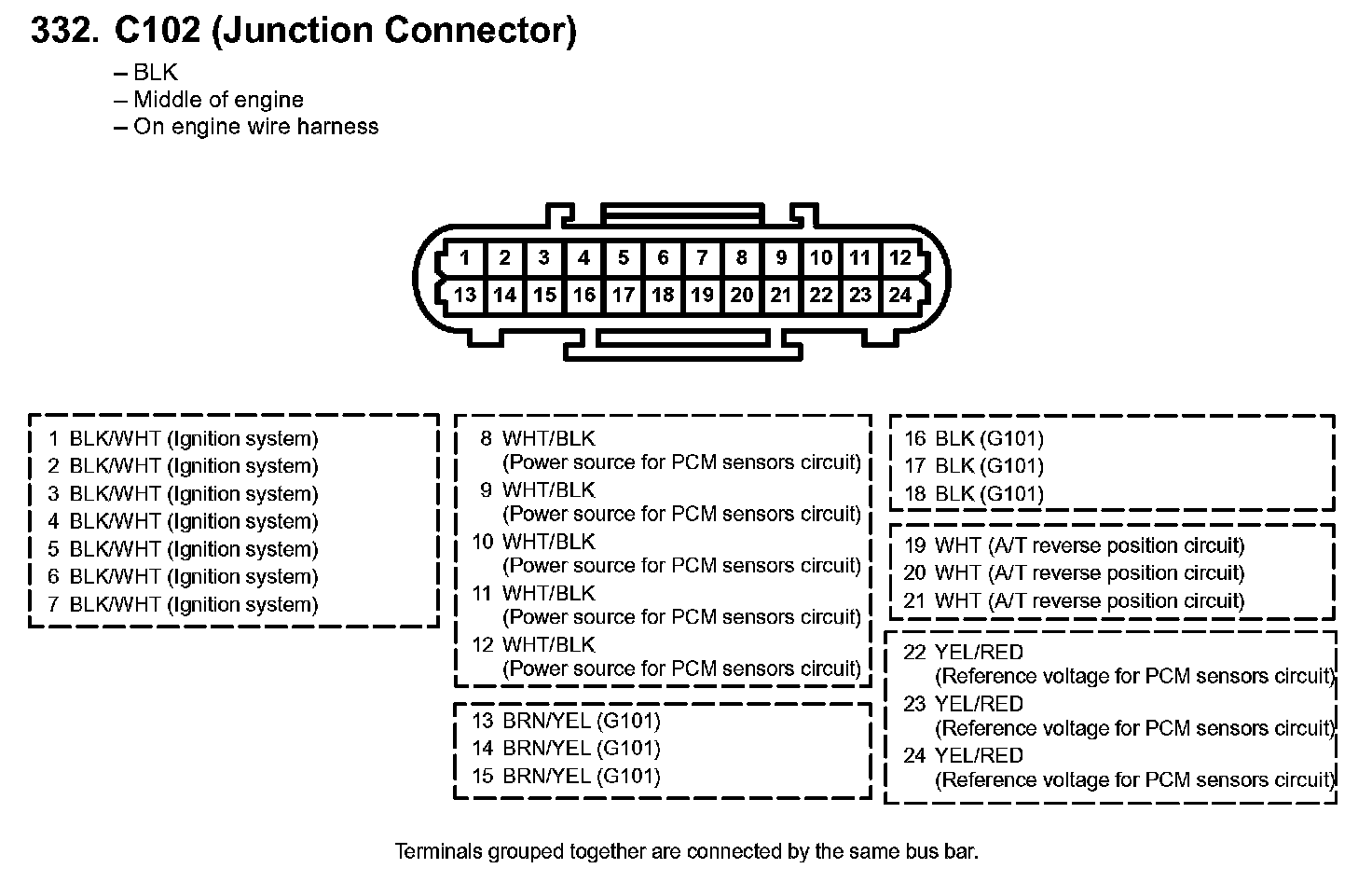

332. C102 (Junction Connector):

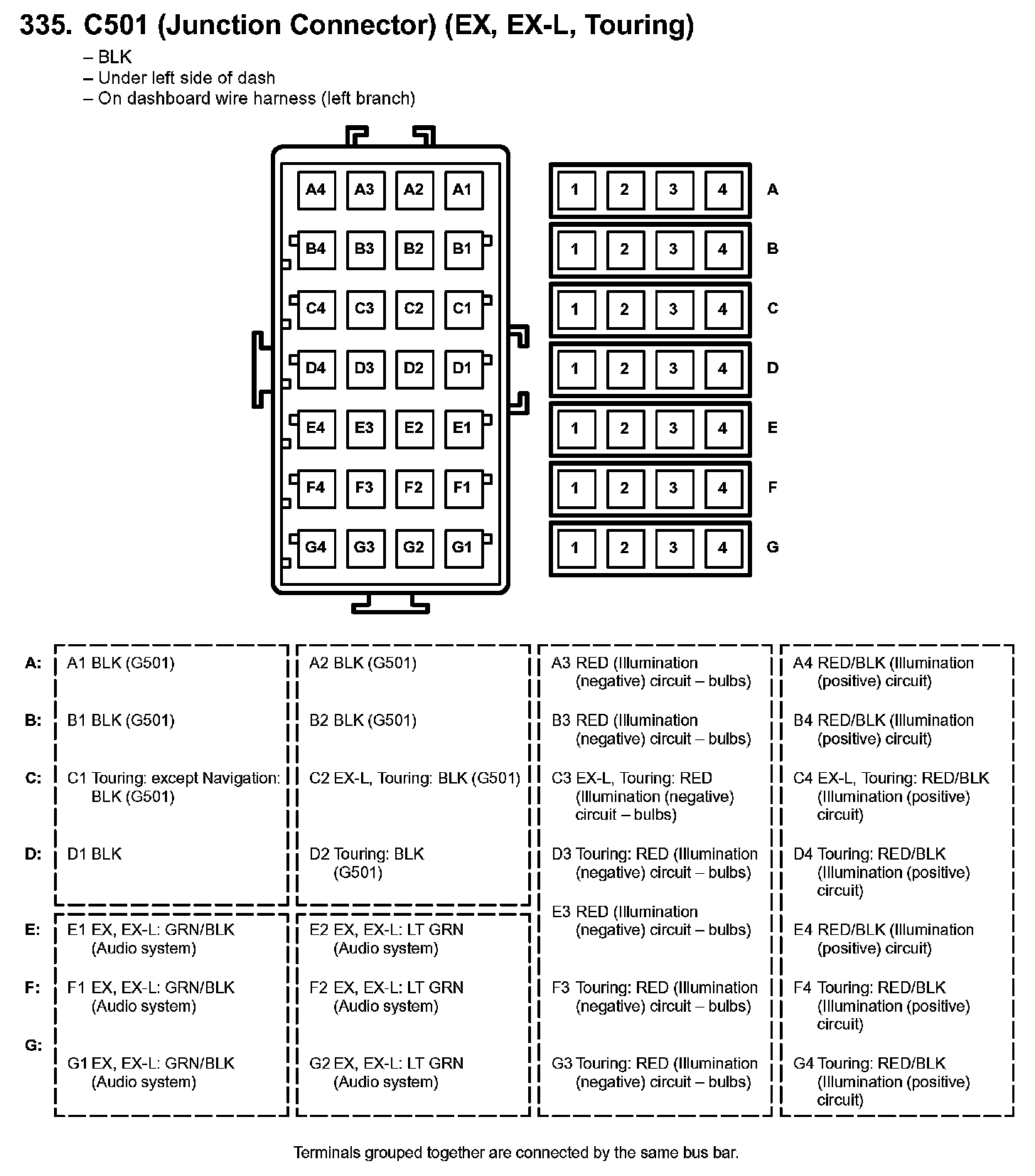

335. C501 (Junction Connector) (EX, EX-L, Touring):

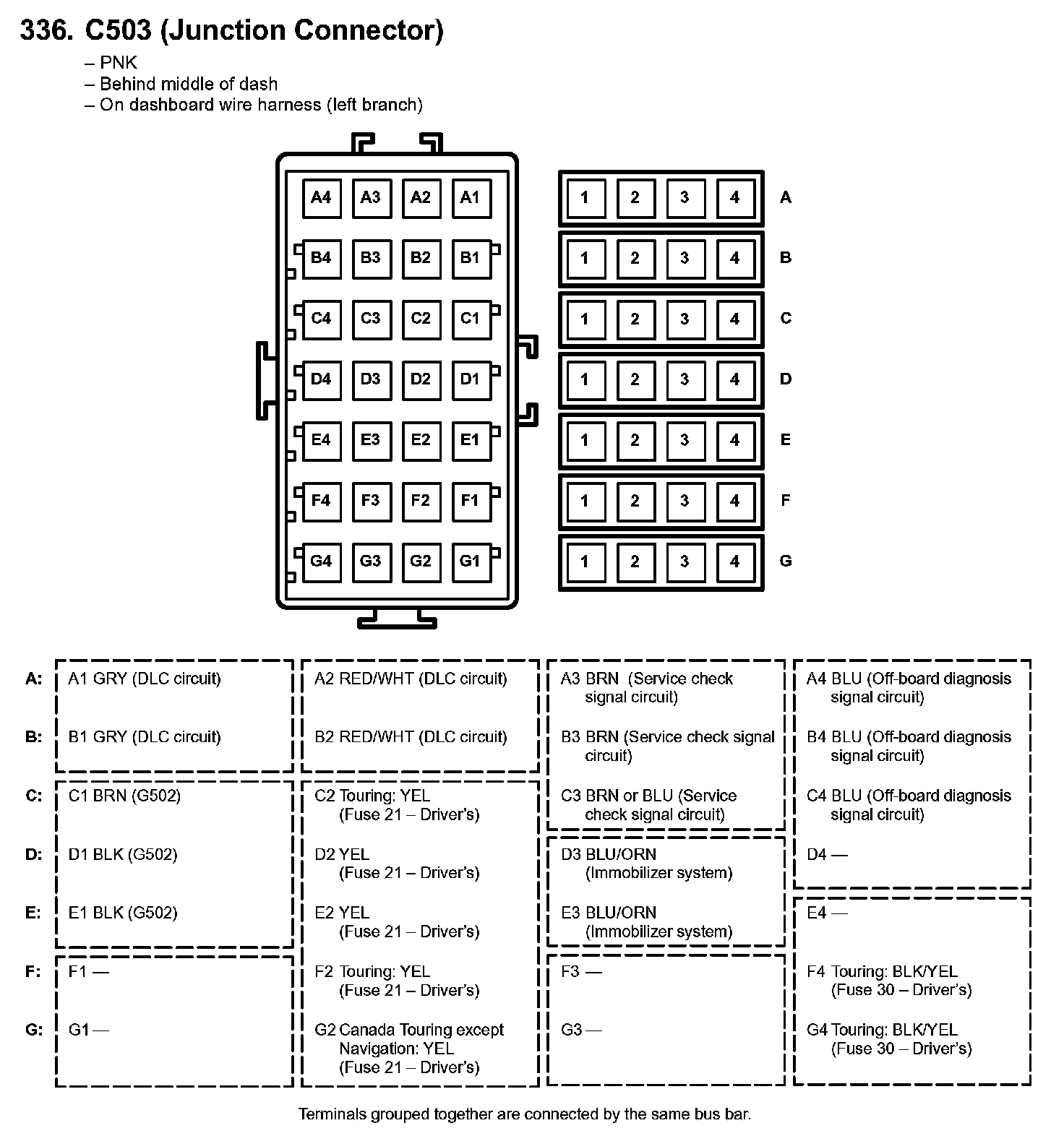

336. C503 (Junction Connector):

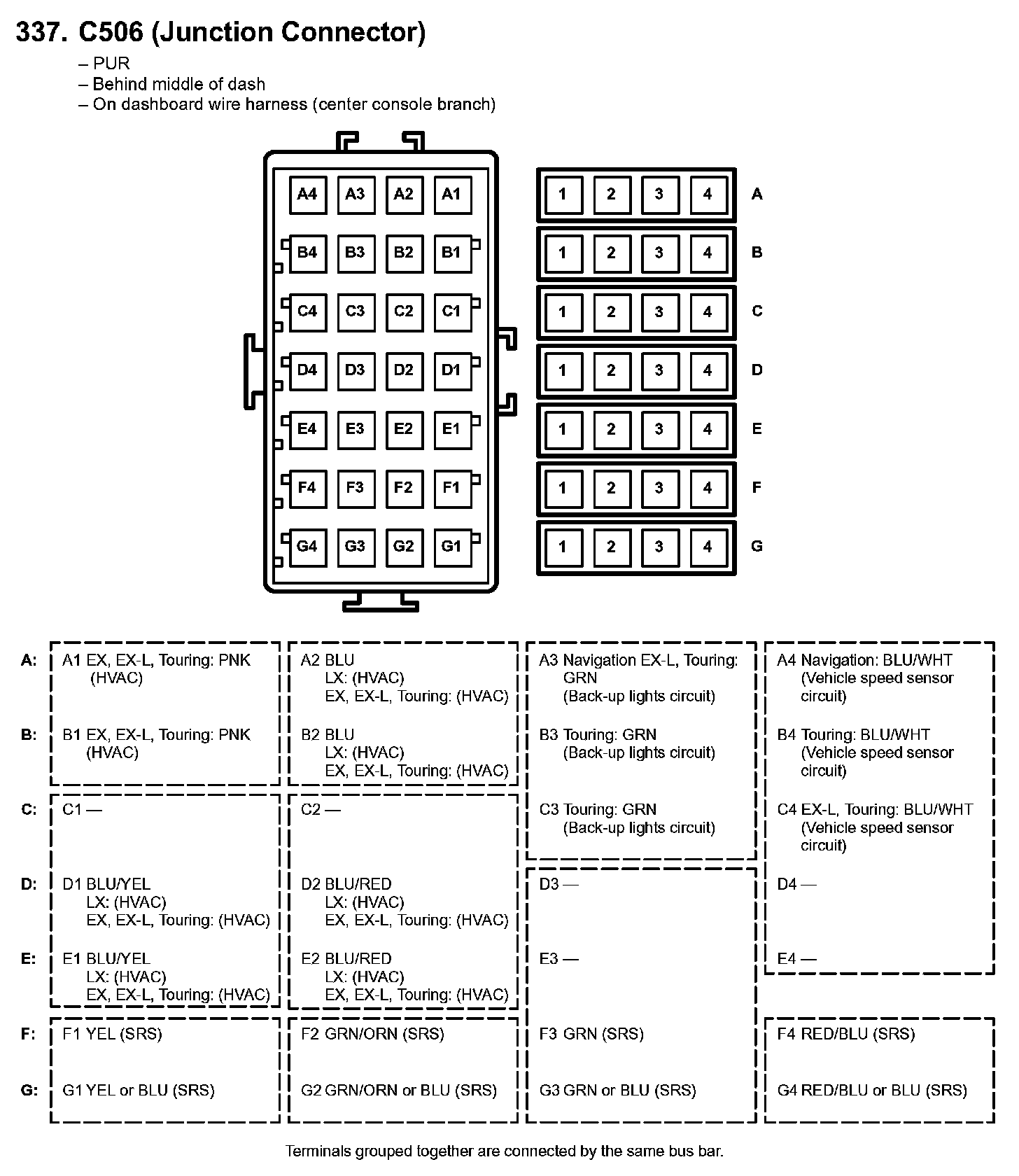

337. C506 (Junction Connector):

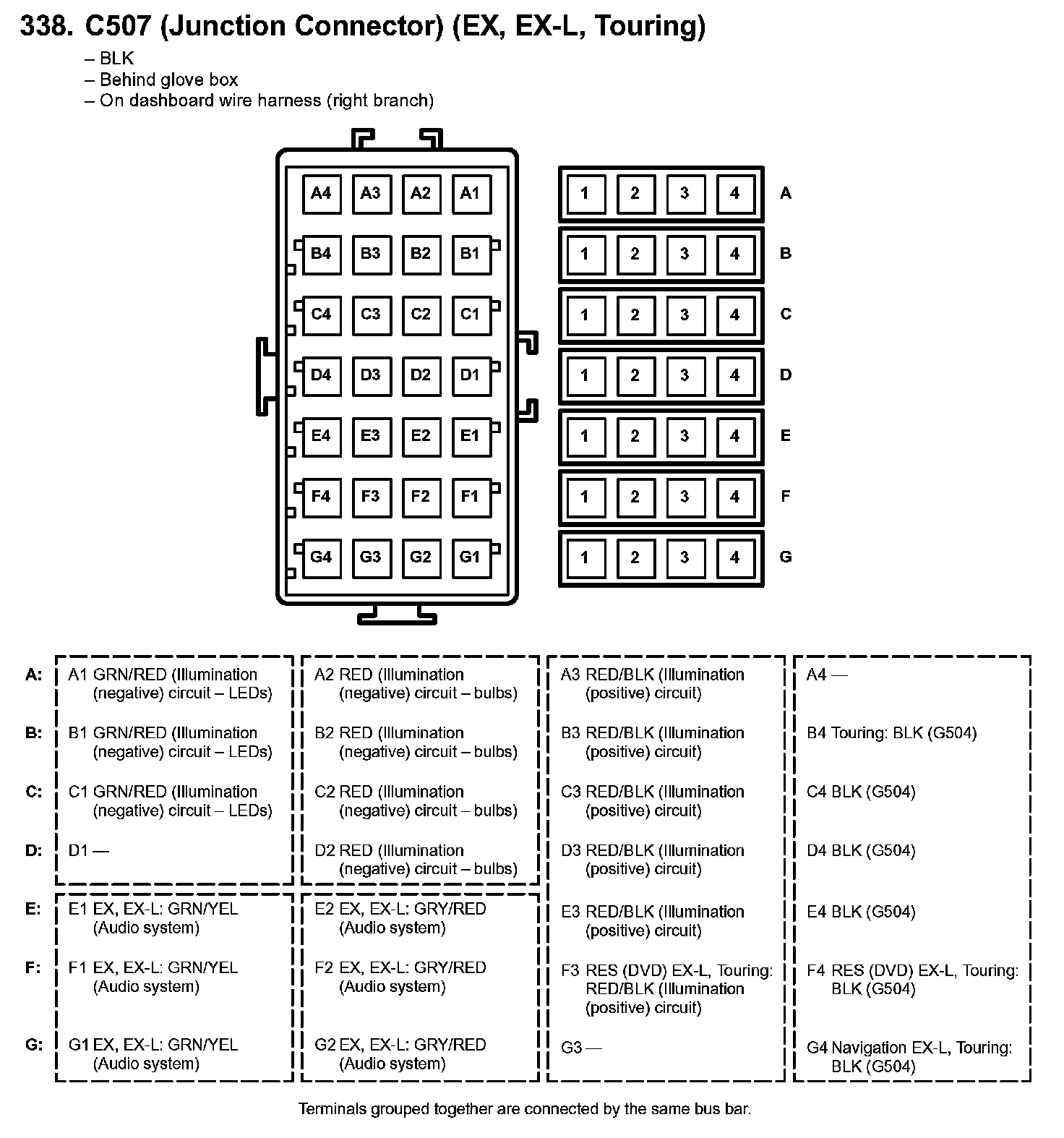

338. C507 (Junction Connector) (EX, EX-L, Touring):



375. C450 (Junction Connector) (Honda Accessory):
