VTEC System

VTEC Oil Pressure Switch Replacement

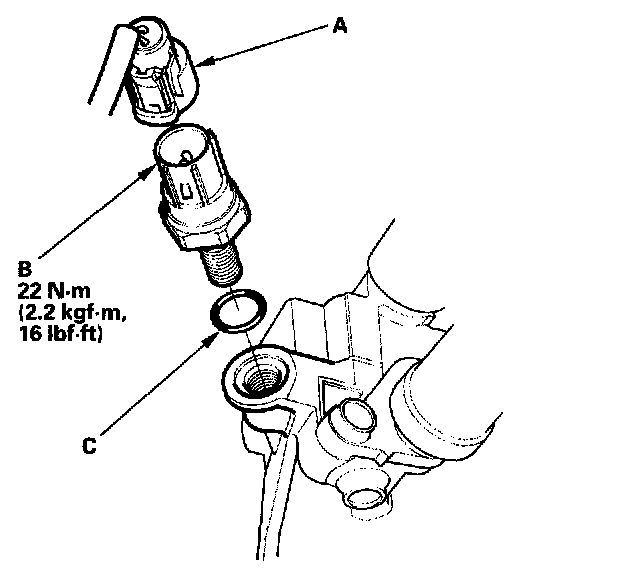

1. Disconnect the VTEC oil pressure switch connector (A), then remove the VTEC oil pressure switch (B).
2. Install the switch in the reverse order of removal with a new O-ring (C).
