Display Unit Inputs and Outputs for Connector B (20P)

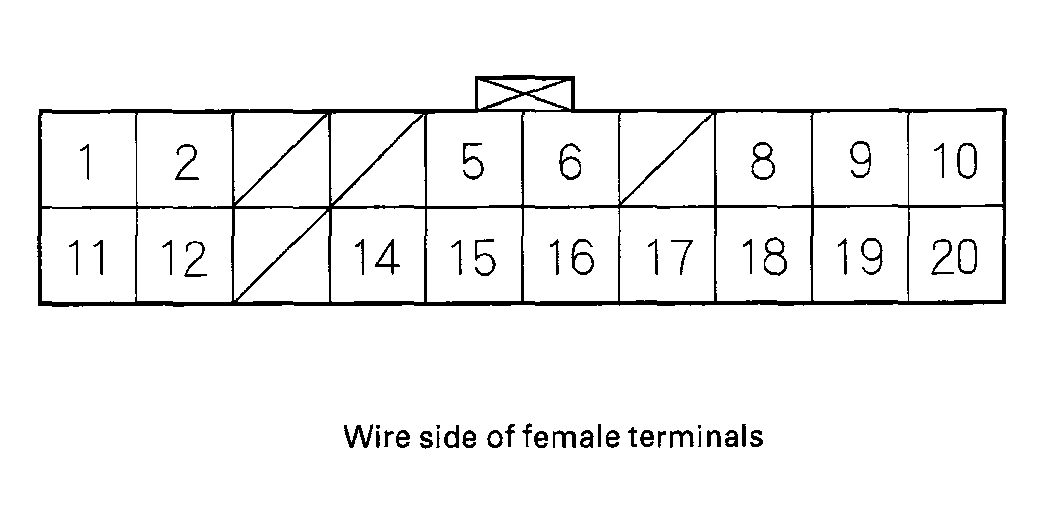

Fig 1: Identifying Navigation Unit Connector B (20P) Terminals
G04548535Courtesy of AMERICAN HONDA MOTOR CO., INC.
NAVIGATION UNIT CONNECTOR REFERENCE

Terminal number Wire color Terminal Terminal name Description
1 WHT/BLU +B +B power source Continuous power source
2 WHT/RED ACC Accessory Power source for accessory, on with the ignition switch in the ON (II) position
5 BLU/GRN DISP BUS (+) Display bus positive Data bus (+)
6 BLU SCTY 1 Security 1 Security signal
8 WHT R SIG Red signal Red color signal
9 RED G SIG Green signal Green color signal
10 BLK GND Ground Ground for display unit
11 RED/BLK ILL+ Illumination positive Parking light ON signal
12 RED ILL- Illumination negative Parking light ON signal (Illumination brightness control for buttons on the display)
14 LT BLU SH DISP BUS Shield display bus Shield for display bus
15 ORN/BLU DISP BUS (-) Display bus negative Data bus (-)
16 GRN/WHT SCTY 2 Security 2 Security signal
17 BLU GND SIG Ground signal Ground for color signal
18 YEL B SIG Blue signal Blue color signal
19 GRN C SIG Composite signal Composite video (vertical/horizontal) synchronizing signal
20 BRN/BLK SH SIG Shield signal Shield for terminal No. 8, 9, 17, 18, 19
