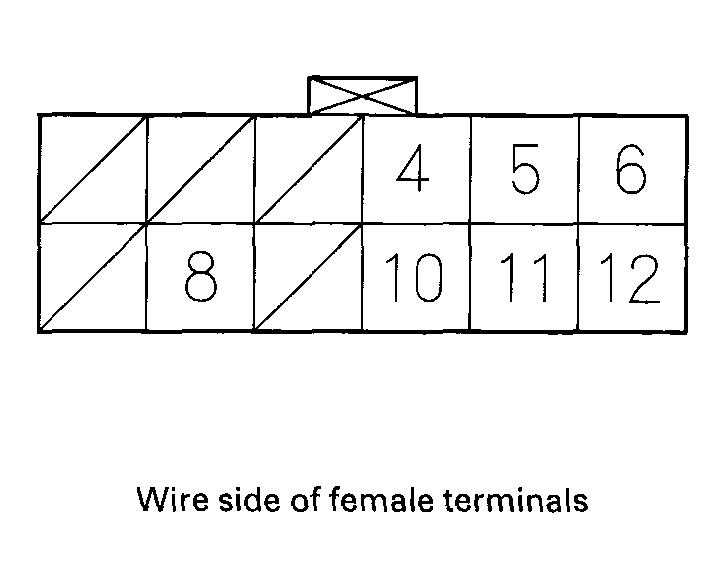

Navigation Unit Inputs and Outputs for Connector A (12P)
NAVIGATION UNIT CONNECTOR REFERENCE
| Terminal number | Wire color | Terminal | Terminal name | Description |
|---|---|---|---|---|
| 4 | WHT | R SIG | Red signal | Red color signal |
| 5 | RED | G SIG | Green signal | Green color signal |
| 6 | BRN/BLK | SH SIG | Shield signal | Shield for terminal No. 4, 5, 10, 11, 12 |
| 8 | YEL/WHT | AMP SW +B | Amplifier switch +B | Power source signal of amplifier |
| 10 | YEL | B SIG | Blue signal | Blue color signal |
| 11 | GRN | C SIG | Composite signal | Composite video (vertical/horizontal) synchronizing signal |
| 12 | BLU | GND SIG | Ground signal | Ground for color signal |
