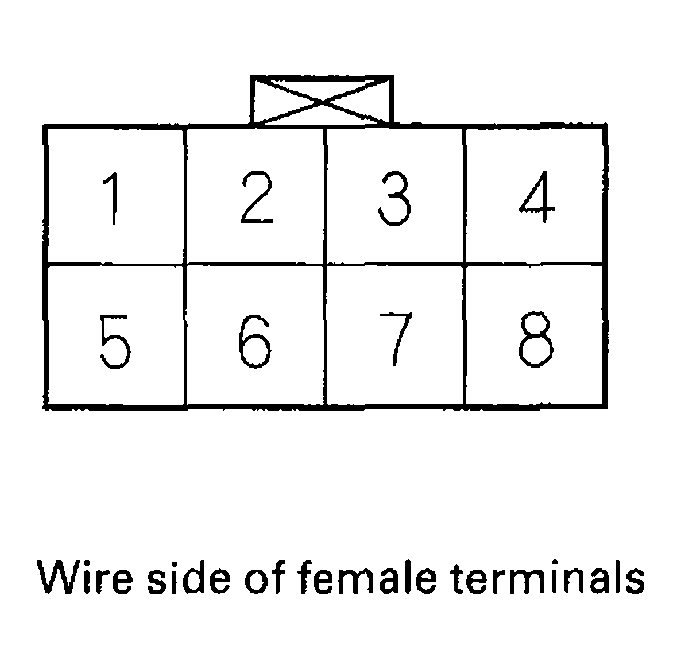

Navigation Unit Inputs and Outputs for Connector C (8P)
NAVIGATION UNIT CONNECTOR REFERENCE
| Terminal number | Wire color | Terminal | Terminal name | Description |
|---|---|---|---|---|
| 1 | WHT/BLU | +B | +B power source | Continuous power source |
| 2 | WHT/RED | ACC | Accessory | Power source for accessory, on with the ignition switch in the ON (II) position |
| 3 | WHT/BLU | CHG | Charge | Alternator charge input |
| 4 | BLK | GND | Ground | Ground for navigation unit |
| 5 | GRN/BLK | BACK LT | Back light | Reverse signal of select lever |
| 6 | BLU/WHT | VSP | Vehicle speed pulse | Vehicle speed pulse signal |
| 7 | GRN/RED | DIAG P | Diagnosis positive | Service check signal for navigation system |
| 8 | BLU/GRN | DIAG N | Diagnosis negative | Ground for service check signal |
