TPMS Control Unit Replacement

NOTE: Make sure the TPMS control unit mounting bracket is not bent or twisted as this may affect its communication with the initiators and the tire pressure sensors.

Remove the clip (A), and disconnect the TPMS control unit connectors (B).
NOTE: The TPMS control unit is located under the steering column.

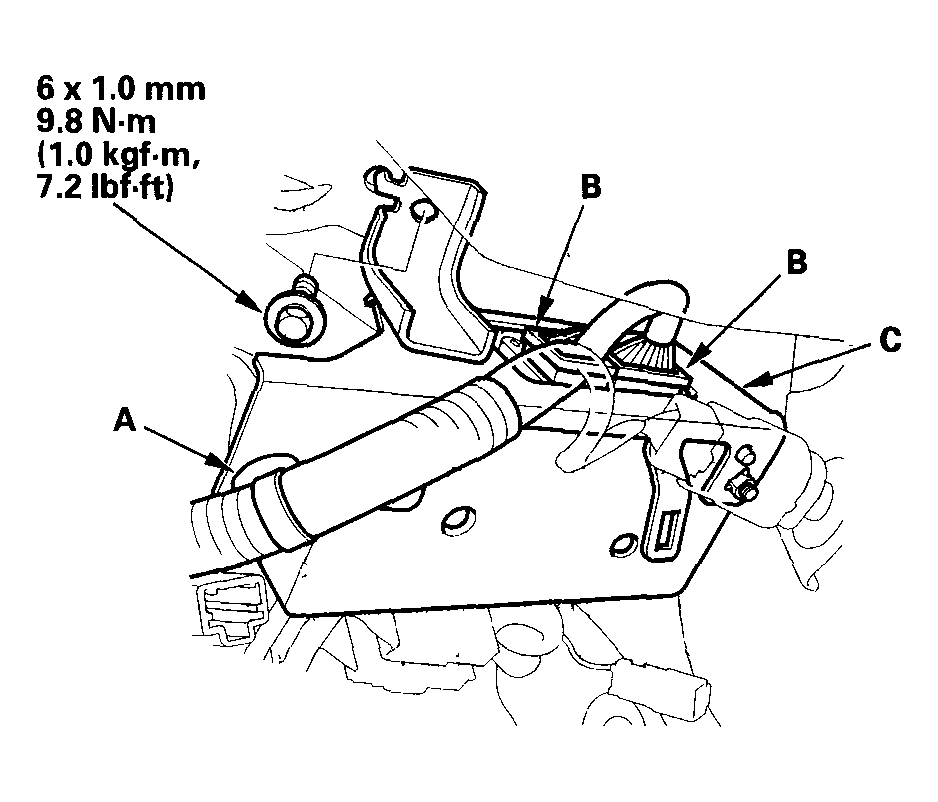

Fig 1: Disconnecting TPMS Control Unit Connectors (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the TPMS control unit with the bracket (C).
Remove the TPMS control unit (A) from the bracket (B).

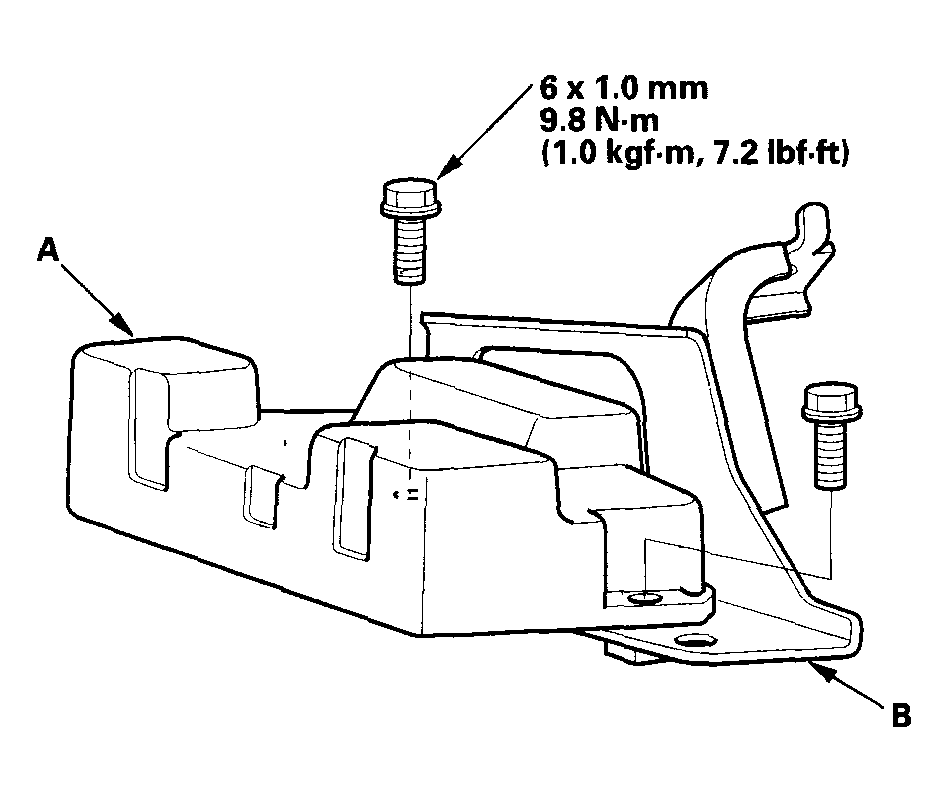

Fig 2: Removing TPMS Control Unit (A) From Bracket (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the TPMS control unit in the reverse order of removal.
Connect the HDS and memorize the pressure sensor IDs (see MEMORIZING THE TIRE PRESSURE SENSOR ID ). Do not memorize the IDs automatically.
