Subframe Torque

After removing the subframe mounting bolts and front suspension subframe stiffener mounting bolts, be sure to replace them with new ones.

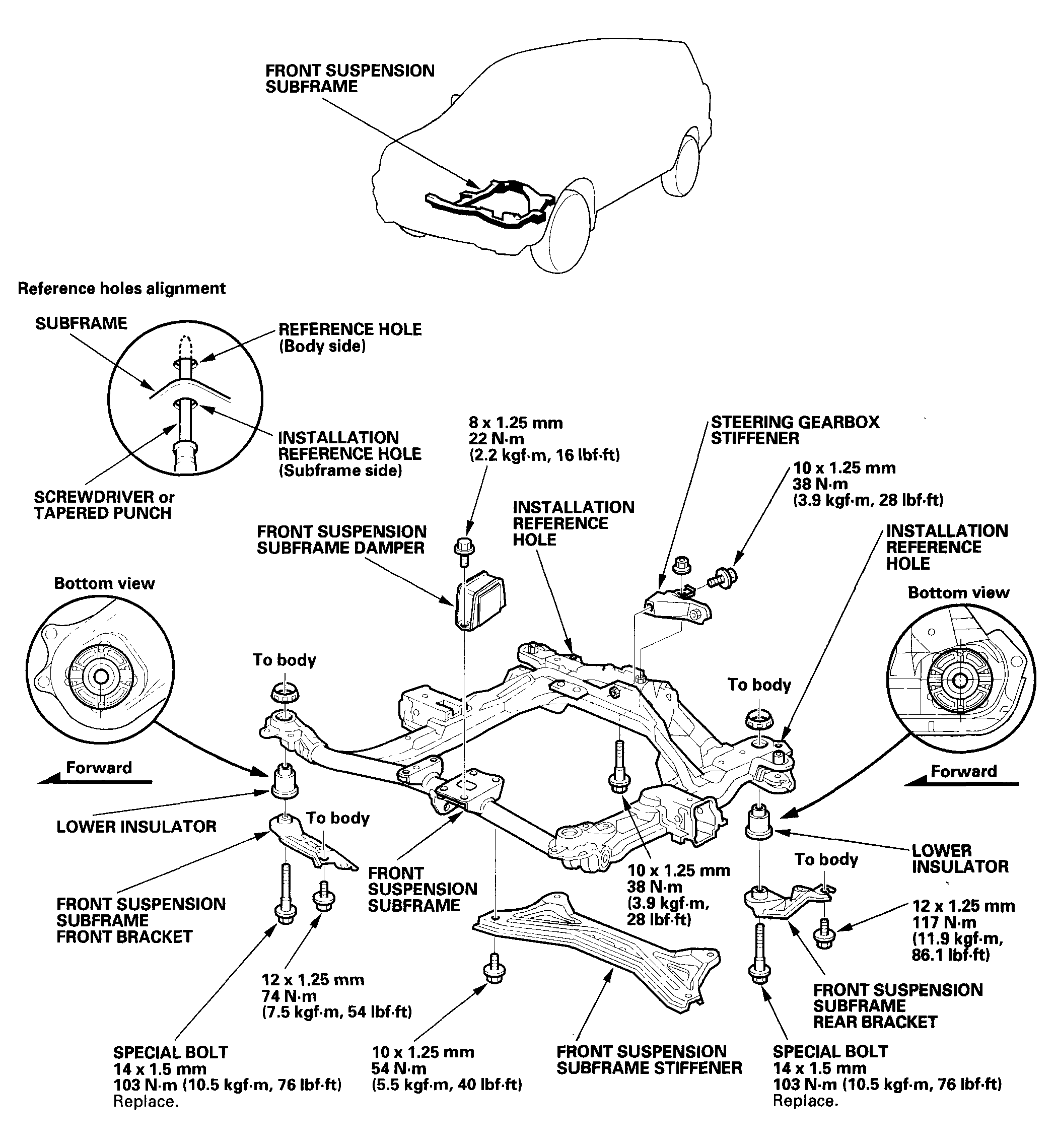

Fig 1: Exploded View Of Front Subframe With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
