Cruise Control Set/decel, Resume/accel, Cancel Switch Test/Replacement

Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
Remove the cover (A), then remove the SET/decel, RESUME/accel, CANCEL switch (B).

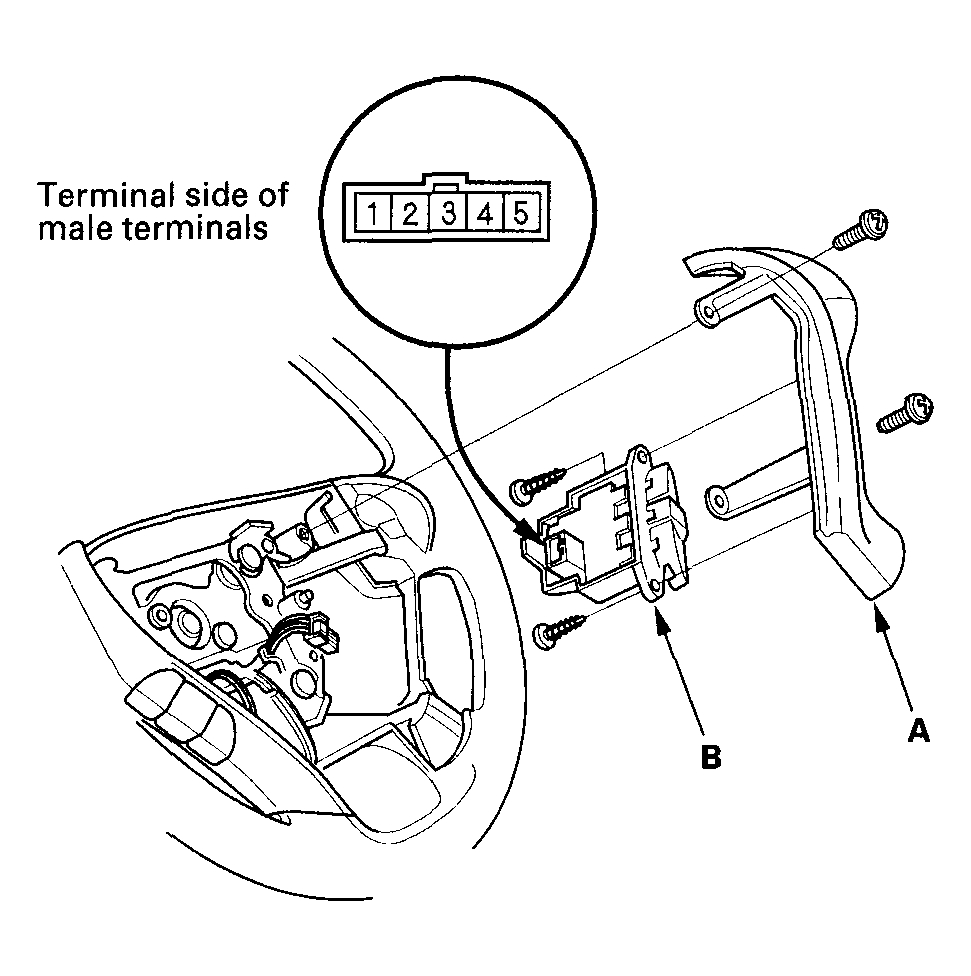

Fig 1: Removing Cover And SET/Decel, RESUME/Accel, CANCEL Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the illustration.
- If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.

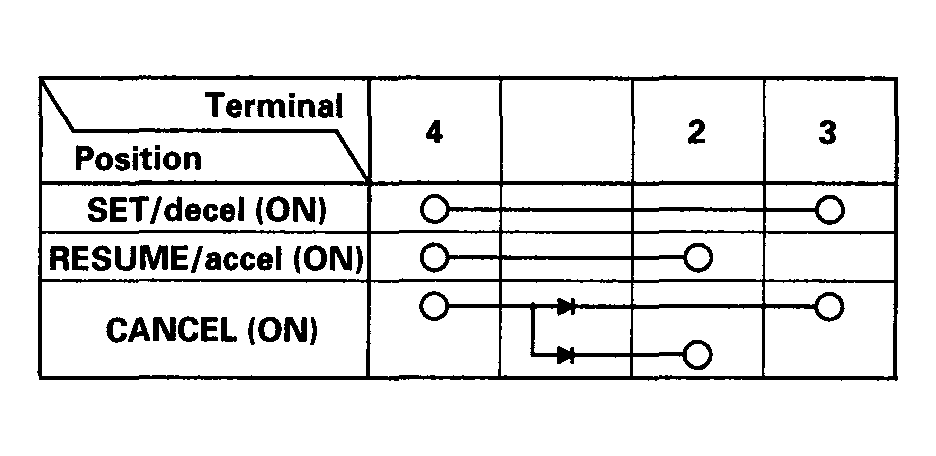

  Fig 2: Cruise Control Set/decel, Resume/accel, Cancel Switch Continuity Reference Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
