EX and EXL

  1. Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
  2. Remove the two screws and cover (A) from the steering wheel.

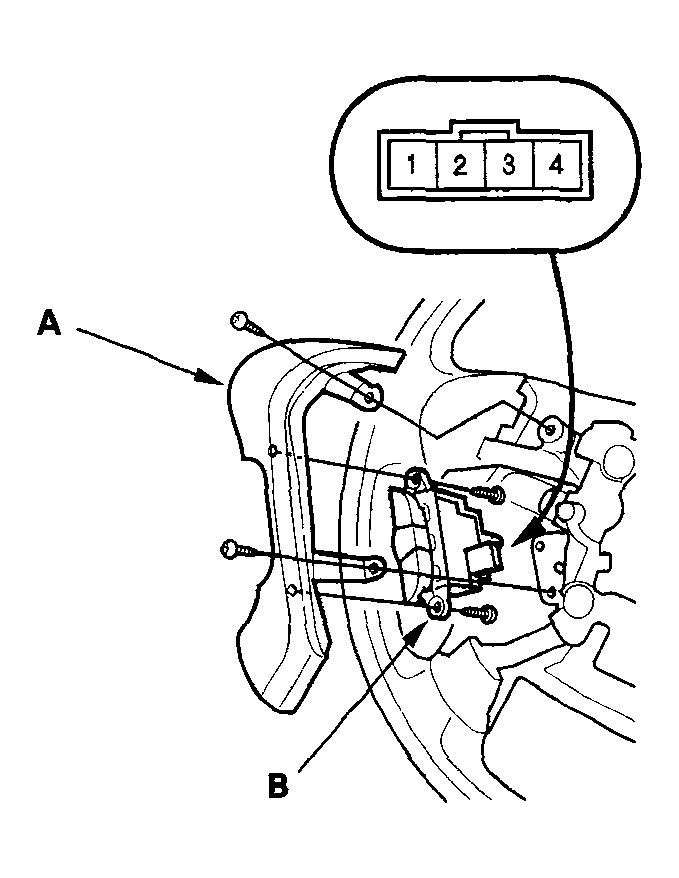

    Fig 1: Identifying Radio Remote Switch Terminals
    G04548493Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screws from the radio remote switch (B).
  4. Disconnect the 4P connector from the radio remote switch.
  5. Measure resistance between the No. 3 and No. 4 terminals in each switch position according to the table.
    RADIO REMOTE SWITCH RESISTANCE SPECIFICATION

    Position Resistance
    OFF About 10 k ohm
    MODE About 3.2 kohm
    CH About 1 kohm
    (VOL. UP) About 320 ohm
    (VOL. DOWN) About 50 ohm
  6. If the resistance is not as specified, replace the remote switch.
